Selecting the right connection for a piping system can be challenging, especially when dealing with high-pressure lines, vibration-prone equipment, or fluids that demand strict leak control. A flanged fitting offers a robust solution, providing reliable sealing, ease of maintenance, and compatibility with a range of pipe materials and diameters. Understanding when a flange is the optimal choice helps engineers and technicians balance performance, safety, and operational efficiency. Readers will gain insights into the key applications, installation considerations, durability under pressure, common pitfalls to avoid, and a practical checklist for confident decision-making.

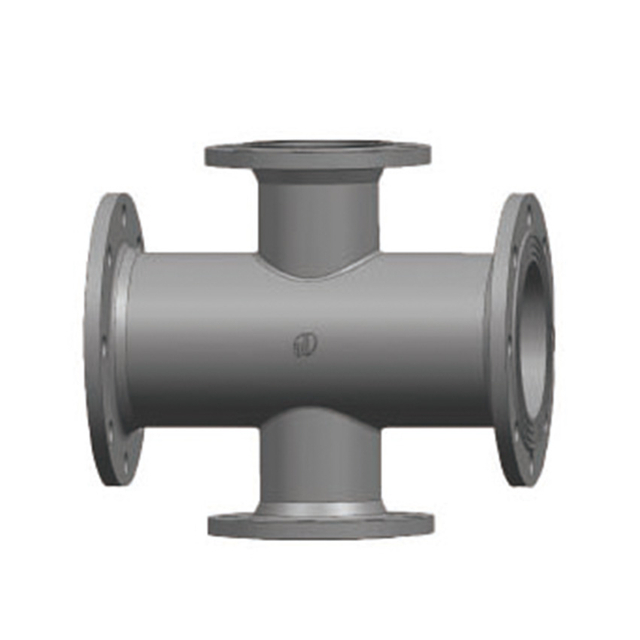

Flanged fittings are particularly suited for piping networks with an outside diameter exceeding 7/8 inches and for systems operating under high-pressure conditions. Unlike threaded or standard hydraulic fittings, flanges distribute clamping force across multiple bolts, maintaining mechanical integrity even when pressure spikes reach 5,000 PSI for Code 61 or 6,000 PSI for Code 62 systems. Their robust design allows connections in rigid metal pipelines where traditional unions would be cumbersome or cost-prohibitive. The wider surface contact of the flange ensures a secure seal against leaks, especially in hoses or pipes carrying volatile fluids. For engineers designing high-pressure hydraulic circuits, selecting the correct flange type—such as Weld Neck or Slip-On—can directly influence both safety and system longevity.
Flanged fittings excel in scenarios requiring periodic inspection, cleaning, or replacement of pipeline sections. By loosening a set of bolts, sections can be detached without cutting or dismantling the surrounding network, significantly reducing downtime. Maintenance teams benefit from modular access points that simplify component swaps and allow rapid system reconfiguration. A Pro-Tip: always ensure that the gasket or O-ring seal is correctly seated before reassembly to prevent subtle leaks that can develop under high-pressure operation. Skipping torque checks or misaligning flanges are common mistakes that compromise system reliability. Integrating flange fittings in maintenance-heavy environments ensures that inspections and minor adjustments can be performed efficiently, avoiding costly operational interruptions.
In tight equipment layouts or industrial machinery with limited wrench clearance, flange fittings enable zero-clearance assembly. Unlike large threaded nuts that may require full rotation or extended tools, bolts on flanged connections can be tightened sequentially in confined areas. This design flexibility is particularly valuable in mobile construction equipment or hydraulic manifolds where space is at a premium. Installation teams can align components vertically or slip them inline without disturbing adjacent piping, reducing the risk of misalignment or accidental damage. Additionally, using high-pressure hydraulic flanged fitting in compact setups allows for consistent torque application, which is critical to maintaining pressure integrity and avoiding vibration-induced loosening over time.
Flanged fittings enhance mechanical stability by distributing clamping force evenly across multiple bolts, preventing localized stress points that can compromise seal integrity. This design allows systems operating under pressures up to 5,000 PSI (Code 61) or 6,000 PSI (Code 62) to maintain a consistent seal across pipe or hose connections. Engineers often select Weld Neck or Slip-On flanges for pipelines where rigid alignment is required, ensuring that torque applied during installation is transmitted uniformly. A Pro-Tip: always tighten bolts in a crisscross pattern to prevent flange warping and uneven gasket compression, which are common causes of slow leaks in high-pressure hydraulic systems.

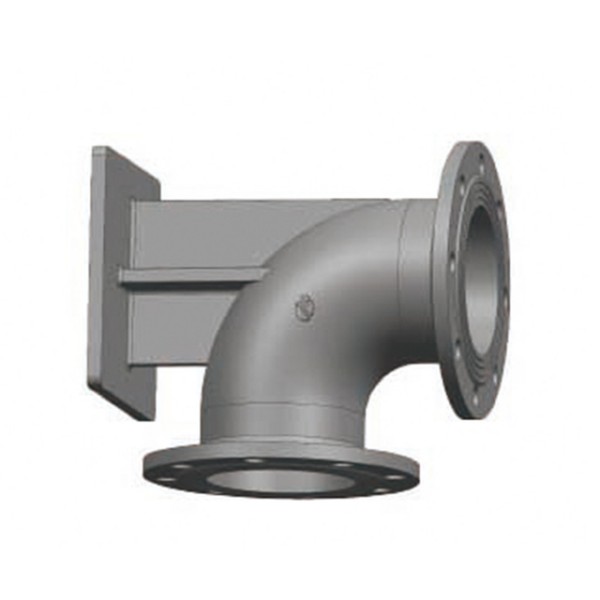

Piping networks on mobile equipment or in industrial machinery experience frequent lateral forces, pressure spikes, and mechanical vibration. Flanged fittings mitigate these challenges by combining robust bolt patterns with the inherent rigidity of metal flanges, keeping joints secure at elbows, hose ends, and manifold connections. Compared with large threaded fittings, flanges are less prone to loosening under repeated mechanical shock. Selecting the appropriate flange type for the expected load and using high-strength materials such as stainless steel or carbon steel further improves durability. Maintenance teams report fewer connection failures in systems that utilize flanged assemblies for high-vibration lines, particularly in construction and hydraulic equipment applications.
Flanged connections accommodate a range of sealing solutions, including O-ring face seals and gaskets, providing reliable leakage prevention even with corrosive, volatile, or caustic fluids. The contact surface design allows single-point sealing, which simplifies alignment and reduces the risk of bypass leaks. For aggressive fluids, selecting chemically compatible gasket materials—such as PTFE, rubber-elastomer blends, or specialized composites—ensures longevity and consistent performance. A Pro-Tip: inspect gasket surfaces for micro-abrasions before assembly; even minor imperfections can compromise high-pressure seals. Flanged fittings’ ability to integrate multiple sealing options distinguishes them from threaded or socket weld connections, especially in fluid power systems that demand precision and reliability.
Threaded fittings remain a practical choice for small, low-pressure pipelines where cost and simplicity are priorities. They rely on the tapered NPT thread to maintain a seal, but excessive torque or vibration can compromise their integrity. Flanged fittings, by contrast, distribute clamping forces across multiple bolts, reducing the risk of leaks in larger or high-pressure systems. A Pro-Tip: when transitioning from threaded to flanged connections in existing installations, engineers should verify that pipe OD and wall thickness are compatible with the selected flange type to prevent misalignment or over-compression of gaskets.
Welded joints offer permanent, highly leak-resistant connections suitable for continuous metal pipelines, particularly in chemical or high-temperature applications. However, their permanence can become a limitation when maintenance or inspection is required. Flanged fittings excel in systems where rapid disassembly or modular replacement is advantageous. For instance, Slip-On or Weld Neck flanges allow sections to be removed without cutting or re-welding, minimizing downtime and operational disruptions. Serviceability considerations often outweigh the incremental strength advantage of welds in mobile hydraulic equipment or high-vibration industrial systems.
Hydraulic adapters, including SAE J518 straight-threaded or face-seal types, provide reliable connections for moderate pressures and compact arrangements. Yet, when dealing with large-diameter hoses or high-pressure lines rated under Code 61 or Code 62, flanged fittings deliver superior performance. Their bolted design ensures even torque application and accommodates O-ring or gasket seals, which enhances leakage prevention in volatile or high-pressure fluids. Flanges also simplify alignment when connecting pumps, manifolds, or hose-end ports, where hydraulic adapters may require complex couplings or adapters.
Connection Type | Best Use Case | Key Advantage | Limitation |
Threaded Fittings | Small, low-pressure lines | Simple, low cost | Susceptible to vibration and leaks |
Welded Joints | Permanent pipelines, high-temp/chemical | Leak-resistant, strong | Difficult to disassemble |
Hydraulic Adapters | Moderate pressure, compact layouts | Versatile, easy to connect | Limited for large OD/high-pressure |
Flanged Fittings | Large OD, high pressure, frequent access | Even torque, serviceable, leak-proof | Higher initial cost, more space required |
Flanged fittings can be overengineered for simple plumbing or low-pressure pipelines where threaded or compression fittings suffice. In domestic or light industrial applications, installing a flange may increase material and labor costs without delivering tangible performance benefits. Using a flanged fitting in such contexts can unnecessarily complicate installation and maintenance procedures, particularly when pipe diameters fall below 1 inch and operating pressures remain under 150 PSI. Evaluating system requirements carefully ensures that the connection method matches both performance needs and budget constraints.
Improper pairing of flange and pipe materials can accelerate corrosion or galvanic degradation. Stainless steel flanges attached to carbon steel pipes, for instance, can induce galvanic corrosion if the system contains conductive fluids. Aluminum flanges are lightweight but may not withstand abrasive or highly caustic liquids. Engineers should verify material compatibility with transported fluids, environmental exposure, and electrochemical potential differences to prevent premature failure. A Pro-Tip: using isolation gaskets or coatings can mitigate galvanic interactions, extending service life without compromising seal integrity.
Flanged fittings rely on proper gasket or O-ring placement and controlled torque to maintain leak-free operation. Misaligned flanges, uneven bolt tightening, or damaged sealing surfaces can quickly lead to leaks, particularly in high-pressure or vibration-prone systems. Even the most robust Code 61 or Code 62 flanges underperform if installation procedures are ignored. Regular inspection, correct bolt sequencing, and adherence to torque specifications are essential to preserve the intended mechanical and hydraulic performance.
Selecting the appropriate flanged fitting begins with evaluating core system parameters. Engineers should verify operating pressure, temperature range, pipe OD and ID, and the type of fluid being transported. Larger diameters or higher pressures often necessitate Weld Neck or Slip-On flanges to maintain seal integrity. Fluid compatibility is equally critical; corrosive or abrasive liquids may require stainless steel or chemically resistant gasket materials. Following a systematic selection sequence ensures the chosen fitting meets performance requirements without overengineering or compromising safety.
Compliance with industry standards provides confidence in the mechanical and hydraulic reliability of flanged fittings. ANSI, ASME, ASTM, and DIN standards define flange dimensions, pressure classes, and material specifications. Adhering to Code 61 or Code 62 ratings guarantees that fittings can withstand design pressures of 5,000–6,000 PSI without risk of leak or deformation. A Pro-Tip: always cross-check manufacturer data sheets to confirm that the flange and mating pipe meet the same standard, preventing mismatch-related failures in high-pressure hydraulic systems.
The choice of a flanged fitting influences installation complexity, maintenance cycles, and overall system cost. Bolted flange connections reduce assembly time compared with welding, especially in confined or zero-clearance areas. Modular flanges allow sections to be removed for inspection or replacement, minimizing downtime and associated labor costs. Evaluating these factors against budget constraints can reveal hidden cost benefits that go beyond initial purchase price. For high-pressure, vibration-prone lines, prioritizing a fitting that simplifies reassembly and ensures precise alignment improves long-term reliability.
Before finalizing a purchase, a structured checklist can prevent common specification errors. Critical criteria include flange size, material, pressure rating, sealing type (O-ring or gasket), accessibility for installation and maintenance, and compatibility with the operating fluid. Additional considerations involve expected vibration loads, thermal expansion allowances, and adherence to the relevant standards. Incorporating these parameters into a single evaluation tool allows engineers and procurement teams to make informed, efficient decisions.
Careful evaluation of system requirements ensures that a flanged fitting provides the right balance of strength, reliability, and serviceability. Considering factors such as pipe size, pressure, vibration, and maintenance needs helps determine when a flange is preferable over threaded, welded, or hydraulic connections.
Products from Shanxi Jin Steel Casting Co.,Ltd. offer engineered flange fittings that align with industry standards, supporting efficient installation, consistent sealing performance, and simplified maintenance. By following a structured checklist for material compatibility, torque, and inspection, engineers can optimize pipeline performance while reducing downtime and operational risk.
A: A flanged fitting connects pipes, valves, and pumps securely, providing reliable sealing and allowing easy assembly, maintenance, and disassembly in industrial or high-pressure systems.
A: Flanged fittings are preferred for large-diameter pipes, high-pressure lines, vibration-prone systems, or when frequent maintenance access is required.
A: Properly installed flanged fittings with gaskets or O-ring seals maintain consistent sealing and can be more serviceable than welded joints in systems requiring periodic inspection.
A: Stainless steel, carbon steel, aluminum, and copper are typical, chosen for corrosion resistance, fluid compatibility, and mechanical strength.
A: Yes, zero-clearance flange designs allow bolt tightening and component alignment in tight areas where threaded or welded connections would be difficult to install.
A: Flanges rated under Code 61 or Code 62 are suitable for pressures up to 5,000–6,000 PSI, ensuring mechanical integrity and leak prevention in high-pressure systems.
