An Overview of Ductile Iron Pipe (DIP)
Ductile Iron Pipe (DIP) is a pressure-bearing conduit widely used for transporting water, sewage, and other fluids. It is regarded as a benchmark material in modern water distribution networks due to its exceptional strength, durability, and cost-effectiveness. The term “ductile” refers to its defining characteristic—the ability to bend and deform without fracturing, setting it apart from traditional brittle materials.
The superior performance of DIP stems from its advanced metallurgical composition and precision manufacturing process.
Base Composition: Primarily composed of iron alloyed with carbon, silicon, and trace elements.
Spheroidization Process: During casting, a precise quantity of magnesium is added to the molten iron. This process transforms the graphite within the metal matrix into spherical nodules rather than the flake-like graphite found in gray iron, which causes brittleness.
Microstructure: These spherical nodules act as millions of tiny “ball bearings” within a strong, continuous metallic matrix. This structure interrupts crack propagation and prevents stress concentration, resulting in excellent toughness.
Key Advantages of the Material:
Strength of Steel: The metallic matrix imparts high tensile strength.
Toughness of Ductile Iron: The nodular graphite structure provides flexibility and impact resistance.
These material properties translate into outstanding engineering performance.
High Strength & Ductility:
With a minimum tensile strength of 420 MPa (60,000 psi), DIP withstands high internal pressure and heavy external loads from soil or traffic. Its ductility allows it to absorb ground movement and deflection—ideal for areas prone to settlement or seismic activity.
Superior Corrosion Resistance:
DIP is internally lined with cement mortar and externally coated with zinc plus an asphaltic or epoxy seal coat. The inner lining preserves water quality, while the external coating protects against aggressive soils, ensuring a service life exceeding 50–100 years.
Reliable Joint Sealing:

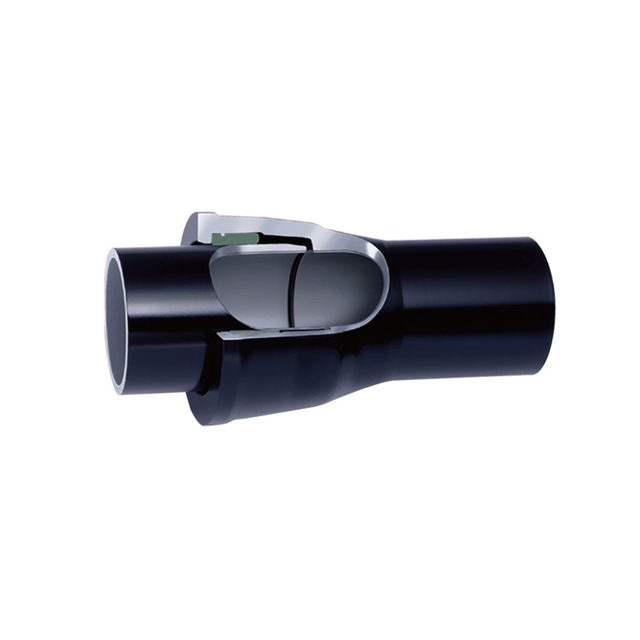

T-Type push-on joints with rubber gaskets provide flexible, leak-proof connections while accommodating ground shifts and temperature changes.
Excellent Hydraulic Performance:
The smooth cement-mortar lining maintains a high flow coefficient (C ≈ 140) and resists biofilm or tuberculation buildup, reducing pumping energy.
Exceptional Durability:
DIP is highly resistant to impact during handling and installation, and can endure water hammer and external forces without fracture.
Primary Applications:
Potable water mains
Fire protection networks
Pressurized sewage systems
Industrial process pipelines
Economic Advantages:
Fast Installation: Push-on joints require no welding or specialized tools.
Low Maintenance: Long-term corrosion protection and strength minimize service needs.
Long Service Life: Proven longevity of over a century reduces total ownership cost.
Sustainability: 100% recyclable and safe for potable water.
