Pipelines in industrial and commercial systems often carry high-pressure fluids, gases, or chemicals, where even minor leaks can lead to costly downtime or safety hazards. Flanged fittings play a critical role by providing secure, removable connections that maintain system integrity under variable pressures and temperatures. Understanding how these fittings work, from gasket compression to bolt preload, helps operators prevent common failures, select the right materials, and apply correct installation techniques. Readers will gain insights into creating leak-proof joints, avoiding operational mistakes, and maintaining reliable connections over time.

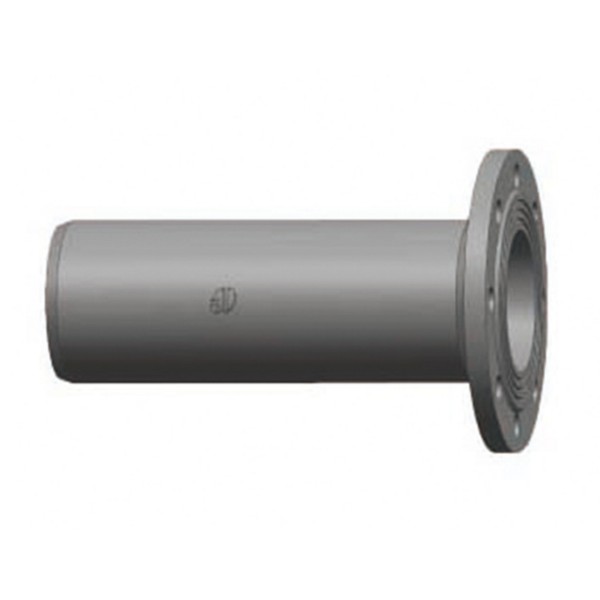

Flange fittings achieve a leak-proof seal by carefully orchestrating the interaction between the flange faces, gasket, and bolting system. Initially, the flanges are aligned so that their machined faces meet perfectly, minimizing gaps that could compromise the seal. A gasket is then positioned between the faces, serving as the primary barrier to fluid or gas escape. As bolts are tightened in a staged sequence, mechanical tension develops along each fastener, generating a clamping force that compresses the gasket evenly across the mating surfaces. This compression forces the gasket material into the microscopic irregularities of the flange, blocking potential leak paths. In high-pressure applications, such as PN40 or ANSI Class 300 systems, this precise sequence ensures that even under fluctuating operational pressures, the joint remains robust and resistant to creep or stress relaxation.
The gasket material directly influences the flange joint's performance and durability. Soft materials like PTFE or fiber-reinforced composites conform easily to surface imperfections, providing excellent initial sealing but may creep under prolonged high-temperature or high-pressure conditions. Metallic gaskets, including ring-type joint (RTJ) designs, withstand extreme temperatures and corrosive environments while maintaining mechanical integrity. Chemical compatibility is critical: PTFE offers high resistance to acids, whereas duplex stainless steel gaskets resist chloride-induced corrosion in marine applications. Temperature limits must also guide selection; for instance, graphite gaskets are suitable for steam systems up to 450°C, while elastomeric gaskets are restricted to lower temperatures. Incorrect gasket choice can lead to early leakage, erosion, or even catastrophic joint failure, making material assessment as essential as proper assembly.
Bolts are more than just fasteners—they regulate the clamping force that ensures the gasket remains compressed uniformly. Improper torque application can produce uneven preload, resulting in flange tilting and gasket blowout. To mitigate this, bolts should be tightened in a crosswise pattern using a calibrated torque spanner, with torque applied in stages (e.g., 30%, 60%, then 100%). Thread friction must be considered; lightly lubricated stainless steel bolts, for example, convert torque into preload more consistently than dry threads. In pipelines handling water, gas, or chemicals, maintaining this load distribution is vital to prevent micro-leaks and material fatigue over time.

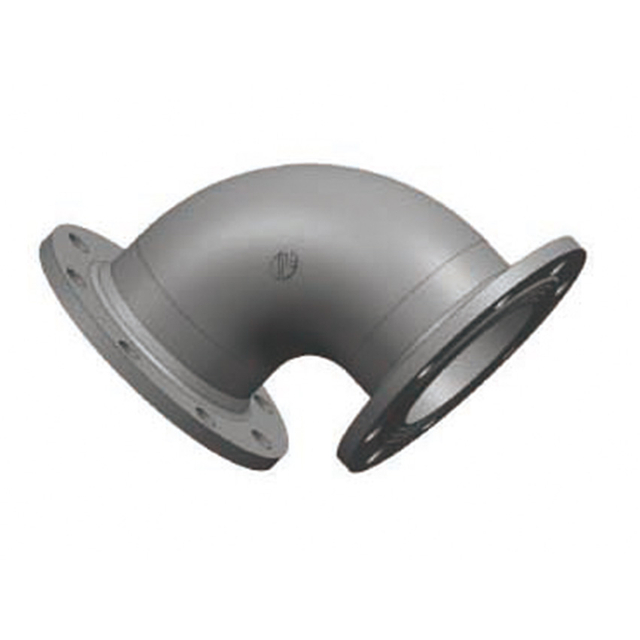

The structural design of a flange determines both its sealing efficiency and mechanical resilience. Raised Face (RF) flanges concentrate compressive force around the gasket’s bore, improving seal tightness for ANSI Class 150–600 applications. Flat Face (FF) flanges, commonly used with cast iron systems, provide full-surface contact but require careful bolt torque control to avoid uneven compression. Ring-Type Joint (RTJ) flanges employ a precisely machined metal groove and corresponding gasket to maintain leak-proof performance in high-pressure or high-temperature environments. Tongue & Groove and Male & Female designs aid gasket alignment, minimizing lateral movement during installation. Selection of the appropriate flange type depends on both operational pressure, temperature, and the mating flange material. Proper attention to flange thickness, bore alignment, and surface finish ensures consistent load transfer and reduces the risk of deformation under dynamic stress.
Bolts are critical for translating applied torque into a uniform clamping force across the gasket. High-strength alloy bolts, such as ASTM A193 B7 or stainless steel A276 Grade 304, are commonly specified based on system pressure and temperature. Coatings like zinc plating or hot-dip galvanization enhance corrosion resistance in humid or chemical-exposed environments. Washers distribute load evenly, preventing flange tilting and reducing surface wear. During assembly, applying the correct lubrication to threads and under the bolt head ensures predictable preload and mitigates friction variability. Avoid mixing different bolt grades or reusing fasteners, as minor differences in thread pitch or elongation can cause uneven stress and potential leakage.
Flange and gasket materials directly impact joint longevity and compatibility with conveyed media. Stainless Steel 304 and 316 are standard for general chemical or water service, while Duplex 2205 or Super Duplex 2507 alloys offer higher tensile strength and superior resistance to chloride-induced corrosion in marine applications. Nickel-based alloys such as Inconel or Monel perform well under extreme heat or aggressive chemical exposure. Plastics (PVC, CPVC, PP) and FRP composites provide lightweight alternatives for low-pressure or highly corrosive systems but require careful consideration of thermal expansion and creep characteristics. Matching flange, gasket, and fastener materials reduces galvanic corrosion and ensures stable sealing under cyclic loads or temperature variations.
Component | Function | Common Failure |
Flange Face | Provides sealing surface and load distribution | Surface scratches, misalignment, improper face type |
Bolts/Nuts/Washer | Apply and maintain clamping force | Uneven torque, corrosion, incorrect grade |
Flange Material | Structural integrity, pressure/temperature resistance | Material mismatch, fatigue, corrosion |
Gasket | Seals fluid/gas paths | Wrong material, improper compression, creep |
Flanged fittings are engineered to withstand specific pressure classes and temperature ranges, yet operational extremes can compromise the joint if not properly accounted for. High-pressure systems, such as ANSI Class 600 or PN40 pipelines, generate internal forces that push flange faces apart, reducing gasket compression. Temperature fluctuations introduce thermal expansion or contraction, potentially loosening bolts and distorting the flange body. Materials respond differently: stainless steel 316 flanges expand approximately 16 µm per meter per °C, while duplex 2205 exhibits lower thermal elongation under the same conditions. Selecting flanges and gaskets rated for the operating pressure and maximum service temperature ensures that the seal remains intact and minimizes the risk of creep or blowout during thermal cycling.
Mechanical vibrations from pumps, compressors, or nearby rotating equipment transmit dynamic loads along the piping network. Repeated oscillations can induce bolt relaxation and uneven flange face contact, especially in long or unsupported runs. Pipe misalignment exacerbates this effect, concentrating stress at the gasket interface. Installing support clamps at calculated intervals, applying proper bolt torque with crosswise tightening, and choosing gaskets with high compressive strength, such as metallic or reinforced graphite types, mitigates the risk of recurring leaks. Special attention is required near expansion loops or bends, where even minor lateral movement can degrade the seal over time.
Gasket materials undergo gradual creep and relaxation under sustained pressure and temperature, leading to reduced clamping force and potential leakage. For example, PTFE gaskets in steam lines may lose up to 5% of their initial compression over six months of continuous operation. Periodic inspection of bolt torque, flange alignment, and gasket condition is essential, with re-tightening recommended according to manufacturer specifications. Implementing a preventive maintenance schedule, including visual inspections and torque verification, extends service life and prevents unexpected downtime. Additionally, selecting gaskets with minimal relaxation rates, such as RTJ metal or high-grade graphite, improves reliability for long-term, high-temperature, or high-pressure applications.
Successful flange installation begins with meticulous preparation of both the flange faces and the gasket. Machined surfaces must be free of scratches, rust, or residual gasket material, as even minor imperfections can compromise sealing performance. Proper alignment of the flanges ensures that the gasket sits evenly without protruding into the bore, which could create turbulent flow or localized stress points. Gaskets should always be new, correctly sized, and compatible with the flange face type—Flat Face, Raised Face, or Ring-Type Joint—to maintain consistent compression. For metallic RTJ gaskets, the seating groove must be clean and free of debris to ensure a uniform metal-to-metal seal.
Bolts translate applied torque into the clamping force that maintains the seal. Employing a crosswise tightening pattern ensures uniform distribution of preload across all bolts, minimizing the risk of flange tilting or gasket blowout. Torque should be applied in staged increments—commonly 30%, 60%, and then 100% of the recommended value—to allow the gasket to compress evenly. Using calibrated torque spanners prevents over- or under-tightening, which can lead to leakage or bolt fatigue. Lubrication of threads and under the bolt head improves torque-to-preload conversion consistency, especially for stainless steel fasteners, while avoiding lubrication on the gasket unless manufacturer-approved.
Repeated failures often stem from simple yet critical errors. Reusing gaskets compromises their ability to fill micro-imperfections, resulting in leak paths. Uneven torque, such as tightening bolts sequentially in a circle rather than crosswise, produces asymmetric compression and localized stress on the gasket. Misalignment of flange faces introduces bending stress, potentially causing long-term deformation or leakage. Pre-installation verification is essential to mitigate these risks, including confirming flange type and face, checking bolt size and grade, and ensuring correct gasket selection.
Checklist Suggested: Pre-Installation Verification
● Inspect flange faces for scratches, corrosion, and flatness
● Confirm gasket type matches flange face and operating media
● Verify bolt size, grade, and lubrication requirement
● Align flanges accurately to avoid misfit or lateral stress
● Ensure torque tools are calibrated and apply crosswise staged tightening
Regular inspection is essential to ensure a high-pressure hydraulic flanged fitting continues to perform under operating conditions. Torque checks should be conducted periodically, using calibrated spanners to verify that bolt preload remains within specification. Flange faces must be inspected for corrosion, pitting, or surface deformation, as these defects compromise gasket compression and sealing performance. Gaskets should be replaced according to manufacturer-recommended intervals or when visible signs of creep, cracking, or erosion appear, particularly in high-temperature or high-pressure applications.
High-pressure, high-temperature, or chemically aggressive systems demand proactive material management. Upgrading to RTJ metal gaskets or high-grade alloys such as duplex 2205 or Inconel enhances joint integrity under extreme conditions. Systems handling steam, corrosive chemicals, or marine exposure benefit from selecting flange and gasket materials that resist thermal expansion, chemical attack, and fatigue. Considering operational cycles and anticipated vibration loads when planning material upgrades reduces unplanned downtime and extends service life.
Long-term reliability relies on proper maintenance routines. Alignment checks should be conducted during every inspection to prevent bending stress on flanges. Bolts must be re-torqued as needed, following crosswise and staged sequences to maintain uniform clamping force. Combining appropriate gasket types with materials suited to the operating environment—metallic RTJ for high-pressure systems or reinforced graphite for thermal resilience—ensures consistent sealing over years of service. Documentation of maintenance actions and torque readings supports proactive replacement decisions and prevents gradual performance degradation.
Understanding how a flanged fitting works involves recognizing the interplay between the flange body, gasket, and bolt preload to maintain a secure, leak-proof connection. Proper material selection, flange type, and installation practices all contribute to long-term reliability, while regular inspection and maintenance help prevent unexpected failures.
