Is ductile iron pipe sized by ID or OD? That question matters before you order pipe or choose a Ductile Iron Fitting. In most cases, OD controls compatibility, while ID affects flow and internal space. In this article, you will learn when to use each measurement and how to avoid costly sizing mistakes.
The practical answer is both, but not for the same purpose. In most specifications, purchasing decisions, and field connections, ductile iron pipe is treated as an OD-based product because the outside diameter is the controlling dimension for compatibility. ID still matters, but mainly when the question shifts from “Will this connect?” to “How much can this line carry?” or “What is the actual internal clearance?”
Dimension | What it controls | Why it matters |
OD | External compatibility | Helps pipe of the same nominal size work with common fittings, valves, sleeves, and connectors |
Nominal Size | Product naming | Serves as a reference label rather than an exact measured diameter |
ID | Internal performance | Affects flow area, capacity, testing volume, and tool clearance |
Ductile iron pipe is usually organized around OD because that keeps the connection side of the system consistent even when wall thickness changes. That consistency makes it easier to use the same family of fittings and joining components across pipes with the same nominal size, which is exactly why OD matters so much in purchasing and installation. For buyers, that means fitting selection cannot rely on nominal size alone; for installers, it means the outside profile is the number that determines whether the connection hardware will work as intended.
In practice, this affects:
● fitting and connector matching
● valve and sleeve selection
● support and clearance planning
● coating and insulation calculations
Nominal size sounds precise, but it is really a reference name, not a promise of the exact internal bore. A 6-inch or 12-inch ductile iron pipe is identified by that label for sizing convenience, yet the actual physical dimensions behind the label can differ from what many readers assume. That is why treating nominal size as if it were the true ID leads to errors, especially in design checks, product comparisons, and system calculations.
The main reason ID changes is that the outside diameter stays consistent while the wall thickness can vary by class or pressure requirement. When the wall gets thicker, the internal opening gets smaller, even though the pipe is still sold under the same nominal size. Internal lining reduces usable ID further, so two pipes with the same name may not offer the same internal flow path.
If a decision depends on what must fit around the pipe rather than what flows through it, OD is the dimension that deserves attention first. That is especially true when a project moves from paper specifications to actual installation, because external compatibility determines whether fittings seat correctly, sleeves clamp properly, supports fit, and clearances remain code-compliant.
Jobsite decision | OD-based checkpoint | Why it matters |
Fitting and sleeve selection | Match the pipe’s external sizing standard | Prevents poor fit, leakage risk, or connection error |
Supports and wall penetrations | Verify maximum outside profile | Ensures enough bearing area and physical clearance |
Insulation and exterior coatings | Calculate from actual OD, not nominal size | Avoids underestimating material quantities |
Casing or HDD entry planning | Check bell OD, not just barrel OD | Large joint ends may control pass-through space |

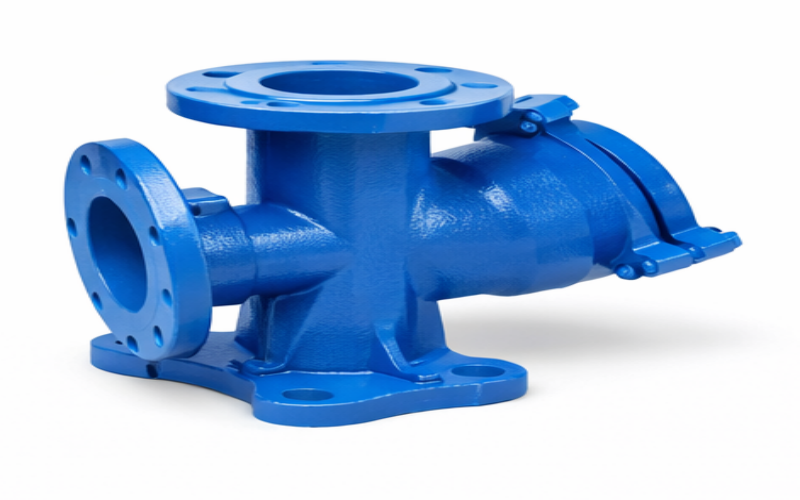

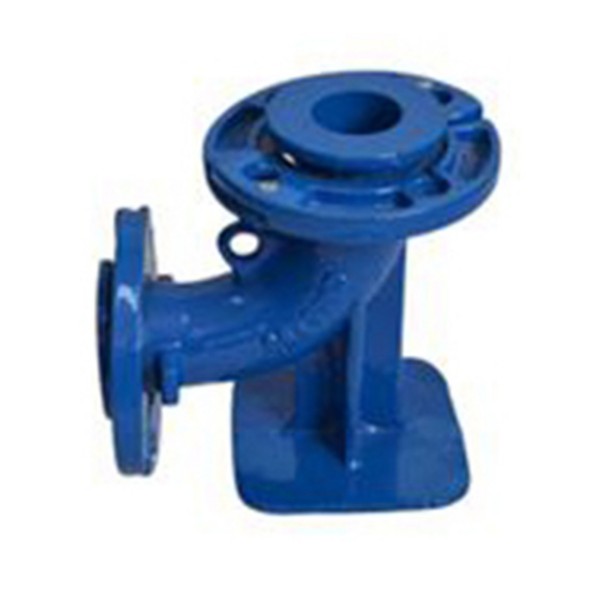

Ductile Iron Fitting selection is one of the clearest examples of why OD matters. A pipe may be sold by nominal size, but fittings, tapping sleeves, transition couplings, and similar connection parts still have to interface with the pipe’s actual outside surface. That is why using nominal size as a shortcut can be risky: two products may share the same nominal label while the external sizing logic still determines whether the joint will assemble correctly in the field.
A quick way to think about it is this:
● nominal size helps you identify the pipe family
● OD helps you confirm whether the connection hardware will actually fit
● fitting errors usually show up at the outside surface before they ever become a flow problem
OD also controls a wide range of jobsite geometry decisions. Support sizing for installations on piers, bridge hangers, and wall cutouts depends on the actual outside dimension rather than internal flow area. The same is true when a new line crosses existing utilities, because minimum clearance requirements are based on the pipe’s maximum OD. Whenever space is limited, the pipe’s outer envelope becomes the controlling dimension.
Exterior work is another place where OD matters more than many buyers expect. Insulation, jacketing, paint, and epoxy are applied to the outer surface, so the calculation has to start from the actual outside diameter. Using nominal size instead of the real OD can underestimate coating area, which then affects both material planning and field execution. In other words, OD verification is not just a technical detail. It is also a cost-control step.
Some installations are controlled not by the pipe barrel but by the bell. Casing selection and drilled-entry checks often need bell OD, because different joint designs produce different bell diameters. A layout that looks acceptable based on barrel OD alone may still fail at the casing, restricted opening, or entry point. In tight installations, this can be the dimension that determines whether the pipe can physically pass.
Once the question shifts from connection compatibility to system performance, inside diameter becomes the more important number. OD may tell you whether a fitting, sleeve, or support will work, but it does not tell you how much water the pipe can carry or how much space is actually available inside the line.
Hydraulic performance depends on the real internal opening of the pipe, because that opening determines the effective flow area. For that reason, engineers and buyers should verify ID whenever the job involves flow rate, velocity, pumping efficiency, or carrying capacity. A nominal pipe size may look sufficient on paper, but if wall thickness increases or the lining takes up part of the bore, the usable area becomes smaller than many people expect. That is why performance-driven decisions should never rely on OD or nominal size as a shortcut.
Performance question | Dimension to verify | Why |
Will the line carry the required flow? | ID | Flow area is based on the actual internal opening |
Will velocity stay within target range? | ID | A smaller bore increases velocity at the same flow rate |
How much water will the line hold? | ID | Internal volume depends on the true inside diameter |
How much water is needed for testing? | ID | Filling and hydrotest estimates come from pipe volume |
Different pipe classes can have different wall thicknesses, which changes the final ID even when the nominal size stays the same. Cement lining can also reduce usable inside space, so buyers evaluating performance need the actual internal diameter, not just the product name.
ID is also essential when estimating how much water a pipeline will contain during filling, commissioning, or hydrostatic testing. That kind of estimate depends on ID because the water occupies the internal bore, not the outside dimensions. If the internal diameter is smaller than assumed, the line will hold less volume than expected. If it is larger, the water demand, fill time, and test preparation may all increase.
Most sizing errors happen before the purchase order is issued, not after the pipe reaches the jobsite. Buyers and contractors often assume that one number will answer every question, but ductile iron pipe does not work that way. The practical rule is simple: OD is the number to verify when the concern is external fit, while ID is the number to verify when the concern is internal performance or clearance. Treating those two dimensions as interchangeable creates avoidable mistakes in fitting selection, installation planning, testing, and material estimating.
When the decision involves anything that must connect to, wrap around, support, or pass around the pipe, start with OD. This applies directly to Ductile Iron Fitting selection, especially when sleeves, couplings, restraints, or tapping components have to match the pipe’s outside profile with enough accuracy to avoid assembly problems. The same rule applies to support sizing, wall penetrations, trench clearances, and coating or insulation calculations, because all of those tasks are controlled by the pipe’s exterior envelope rather than by its flow area.
A useful rule on the buying side is to ask whether the item touches the outside of the pipe. If the answer is yes, OD should be verified before approval. That is also why relying only on nominal size can be risky. A nominal label may help identify the pipe family, but the actual external sizing standard determines whether a fitting or sleeve will match properly in practice.
ID becomes the priority whenever the concern is what must happen inside the line. Flow calculations depend on the actual internal opening, not the OD. Water volume estimates for filling and hydrostatic testing also depend on ID because the water occupies the internal bore. ID also matters for pigging, mandrel testing, and internal lining work, all of which require confidence in the usable internal clearance rather than the pipe’s outside size.
This is where buyers often make quiet but expensive errors. They may approve a specification based on nominal size alone, even though wall thickness and lining reduce the internal opening. The result is a line that still installs correctly on the outside but does not perform exactly as expected on the inside.
Checkpoint before approval | What to verify | Why it matters |
Confirm the pipe callout | Nominal size plus real application | The same size label can be used for very different design needs |
Review wall thickness or class | Whether the bore becomes smaller | A thicker wall reduces usable ID |
Review lining requirement | Standard or heavier internal lining | Lining changes internal clearance and effective flow path |
Review connection condition | Whether the interface depends on OD or bell OD | Some fittings follow barrel OD, while tight entries may be controlled by bell size |
A short checkpoint like this prevents a buyer from approving pipe and fittings as if all size references meant the same thing. It also helps separate connection decisions from hydraulic decisions before they become change orders or field problems.
Common mistakes usually come from oversimplifying the meaning of size. One frequent error is assuming nominal size equals exact ID, which can distort flow or volume expectations. Another is choosing a Ductile Iron Fitting by nominal label without confirming OD compatibility at the connection point. A third is forgetting that lining affects actual inside diameter, especially when internal clearance matters for testing or cleaning tools. The broadest mistake is using one dimension for every decision instead of matching the dimension to the task.
Ductile iron pipe is mainly matched by OD, while ID matters for flow, testing, and internal clearance. Checking both dimensions helps buyers choose pipe and Ductile Iron Fitting more accurately and avoid costly mistakes. For water supply and drainage projects, Shanxi Jin Steel Casting Co.,Ltd. offers Ductile Iron Pipe and Ductile Iron Fitting solutions, with product and technical content related to ISO 2531, EN 545, EN 598, cement lining, and external coating on its public website.
A: Ductile Iron Fitting selection usually depends on OD, because external compatibility controls joint fit and connection accuracy.
A: In Ductile Iron Fitting projects, ID changes with wall thickness and lining, while OD usually stays consistent for matching.
