Pipelines and piping systems form the backbone of countless industrial, commercial, and residential applications, yet the variety of fittings often creates confusion. Choosing the right component—whether an elbow, tee, reducer, or flanged fitting—affects flow efficiency, system pressure, and long-term reliability. Understanding the differences between these four core types helps prevent common issues such as leaks, turbulence, or equipment wear. Readers will gain practical insight into fitting functions, material compatibility, installation best practices, and how flanged fittings provide both durability and maintenance access in high-pressure or industrial environments.

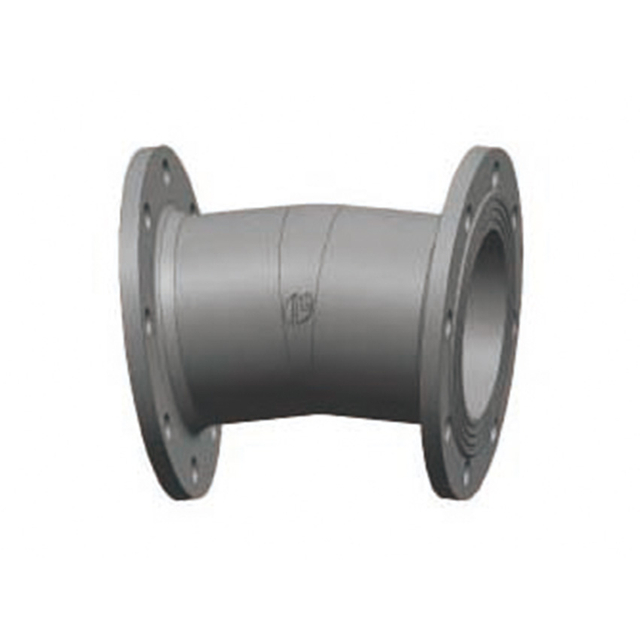

Directional fittings, commonly known as elbows, are engineered to redirect fluid flow without altering pipe diameter. Standard configurations include 45°, 90°, and 180° bends, each producing different turbulence and pressure characteristics within the pipeline. Long-radius elbows (1.5× pipe diameter) minimize friction losses, whereas short-radius elbows (1× diameter) are preferred in space-constrained layouts but generate higher pressure drops. Flanged elbows, often fabricated from stainless steel 316, allow bolted connections for industrial pipelines, facilitating maintenance without disassembly.
Table: Elbow Type Comparison
Elbow Type | Centerline Radius | Typical Pressure Drop | Ideal Application |
Short Radius 90° | 1×D | High | Tight spaces, low-flow lines |
Long Radius 90° | 1.5×D | Moderate | Standard pipelines, reduced erosion |
180° Return Bend | 1×D | Very High | Reversing flow, heating coils |
Pro-Tip: Ensure the elbow’s wall thickness matches the pipeline’s pressure rating. Misalignment can create cavitation zones that erode metal surfaces over time.
Branching fittings divide or merge fluid streams efficiently. Standard tees come as equal or reducing, the latter adjusting branch flow diameter to maintain system pressure. Y-fittings offer gentler angles, reducing turbulence in sensitive applications. Crosses, although less common, support four-way connections but impose higher structural stress at the intersection, necessitating reinforced wall thickness. High-pressure installations often favor flanged tees to facilitate bolt-based secure connections, which simplify inspection and maintenance.
Pro-Tip: Avoid using crosses in high-velocity pipelines where turbulence may erode joints rapidly; consider Y-fittings or dual tees to reduce flow disruption.
Reducers are critical for connecting pipes of differing diameters. Concentric reducers align the centerlines, ideal for vertical lines, whereas eccentric reducers prevent air entrapment in horizontal pipelines. Bell-type adapters, typically found in copper or PEX systems, create smooth transitions without introducing sudden pressure fluctuations. Correct sizing is essential; improper selection can reduce pump efficiency or introduce cavitation.
Checklist for Choosing a Reducer:
● Determine flow rate and pressure drop requirements.
● Select concentric or eccentric based on pipeline orientation.
● Confirm material compatibility (e.g., stainless steel 316 for corrosive fluids).
● Inspect internal surfaces for smoothness to prevent turbulence.

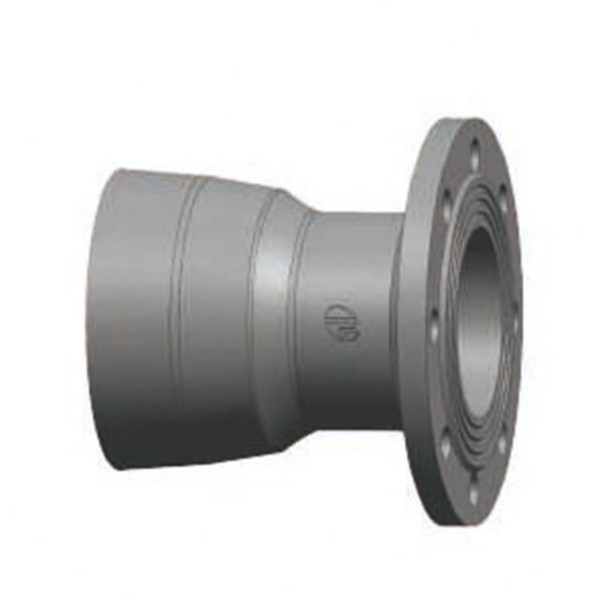

Joining fittings provide secure pipe connections or end capping. Couplings, either slip or threaded, create semi-permanent joints, whereas unions allow easy disassembly. Flanged fittings utilize bolts and gaskets to maintain a leak-proof seal, particularly under high pressure. Correct torque sequencing and O-ring placement are critical to prevent leaks. Thread quality must comply with SAE or ISO standards to ensure long-term reliability in industrial pipelines.
Stainless steel flanged fitting provide a unique advantage over couplings and unions by allowing moderate maintenance access without full disassembly of pipelines. Unlike permanent welded joints, flanges rely on bolted connections and gaskets to maintain high-pressure integrity, making them suitable for industrial and architectural applications. They accommodate higher pressure ratings and larger pipe diameters, while enabling inspection or replacement of internal components with minimal downtime. This flexibility is particularly critical in chemical processing plants and HVAC systems where frequent access may be required.
Flanged fittings are manufactured in a variety of materials, including stainless steel 316, carbon steel, and brass, each selected based on corrosion resistance, thermal stability, and fluid compatibility. Stainless steel 316, with high molybdenum content, excels in chloride-rich or marine environments. Pressure ratings vary widely, typically expressed in Class 150–600 or PN 10–415 bar depending on regional standards. Compliance with SAE, ISO, and JIS specifications ensures consistent mechanical performance and safety.
Table: Flanged Fitting Type vs Pressure Rating vs Typical Application
Fitting Type | Material | Pressure Rating | Common Application |
Weld Neck Flange | Stainless Steel 316 | PN 415 / Class 600 | High-pressure chemical lines |
Slip-On Flange | Carbon Steel | PN 350 / Class 300 | General industrial pipelines |
Blind Flange | Brass | PN 150 / Class 150 | Temporary pipeline isolation |
Lap Joint Flange | Stainless Steel | PN 35 / Class 150 | Low-pressure maintenance access |
Installation demands careful attention to torque specifications, bolt sequence, O-ring placement, and gasket alignment. CNC-machined flange faces with micron-level tolerances minimize surface irregularities, enhancing seal integrity. Incorrect bolt sequencing or uneven torque can induce stress concentrations, causing leaks under high-pressure conditions. Using calibrated torque wrenches and proper lubrication of bolts ensures uniform compression on gaskets. Flanged elbows and tees should be aligned to avoid bending stresses that could compromise both flow and joint longevity.
Flanged fittings offer predictable inspection cycles and straightforward maintenance compared with welded or compression joints. Unions can be disassembled easily for short-term access, but flanged assemblies allow larger components to be removed without dismantling entire lines. Typical lifespan ranges from 60 to 80 years for high-grade stainless steel installations. Regular inspections should focus on gasket wear, bolt tension, and corrosion at the flange face. Visual checks combined with periodic pressure testing can detect early signs of leakage before system failure occurs.
Checklist for Routine Flanged Fitting Inspection:
● Verify gasket integrity and replacement history.
● Measure bolt torque and check for loosening.
● Inspect flange surfaces for corrosion or pitting.
● Monitor vibration and alignment, especially in high-pressure lines.
Selecting the appropriate fitting begins with evaluating flow direction, pressure, and pipe material. Directional fittings, such as elbows, are ideal for rerouting pipelines with minimal turbulence, while branching fittings like tees or crosses distribute flow to multiple destinations. Reducing fittings must be chosen based on diameter transitions; eccentric reducers are preferred for horizontal lines to avoid air pockets. Joining fittings, including couplings, unions, and flanged fittings, provide secure connections under varying pressure loads. Ensuring the material—stainless steel 316, brass, or PVC—is compatible with the transported fluid preserves long-term system integrity.
Transitioning between different pipe materials introduces electrochemical corrosion risks. Dielectric unions and properly rated adapters prevent galvanic interactions between metals such as copper and galvanized steel. PVC or CPVC to copper connections should employ slip adapters or threaded fittings with compatible gaskets. Correct alignment and seating of O-rings are critical to avoid leakage and premature wear.
Installation errors frequently arise from misaligned flanges, incorrect elbow radius selection, or mixing thread standards (NPT vs BSP vs ISO). Reducers installed with the wrong orientation can trap air or reduce flow efficiency. Overlooking wall thickness compatibility can compromise pressure ratings.
Balancing initial cost against long-term performance is essential. High-performance flanged fittings provide superior pressure tolerance and corrosion resistance, reducing maintenance costs over decades. Standard couplings or unions are cheaper but may require more frequent inspection or replacement in harsh environments. Material selection directly affects lifecycle cost; stainless steel 316 offers longevity in marine or chemically aggressive systems, whereas PVC or brass may suffice for low-pressure domestic applications.
Table: Cost vs Performance Comparison
Fitting Type | Material | Initial Cost | Maintenance Frequency | Ideal Use Case |
Flanged Fitting | Stainless Steel 316 | High | Low | Industrial/High-pressure pipelines |
Coupling/Union | Carbon Steel | Medium | Medium | Standard industrial or domestic |
Slip/Threaded Adapter | PVC/Brass | Low | High | Low-pressure or temporary setups |
Proper fitting selection begins by analyzing the pipeline’s flow direction, volume, and pressure requirements. Directional fittings like elbows should be chosen according to radius to minimize turbulence, with long-radius elbows reducing pressure drop in high-flow systems. Branching fittings, including tees and crosses, must account for combined or split flow rates to prevent pressure imbalances. Reducers require careful sizing; eccentric reducers are preferred in horizontal pipelines to avoid air pockets and cavitation.
Table: Flow Considerations by Fitting Type
Fitting Type | Optimal Flow Scenario | Pressure Impact | Notes |
Elbow LR 90° | High-volume, low turbulence | Moderate | Long-radius reduces erosion |
Tee Equal | Balanced branch flow | Minimal | Use in multi-destination lines |
Eccentric Reducer | Horizontal diameter change | Low | Prevents air trapping |
Flanged Coupling | High-pressure junctions | Low | Bolted access for maintenance |
Pro-Tip: Always verify pipeline velocity and pressure rating against fitting specifications to avoid premature failure or erosion.
Material compatibility is critical for longevity and safety. Stainless steel 316 provides excellent corrosion resistance in chloride-rich or marine environments, while brass suits moderate pressures and PVC handles low-pressure, chemically neutral fluids. Flanged fittings must match pipe material to prevent galvanic corrosion. When transitioning between metals and plastics, dielectric unions or properly rated adapters maintain electrical separation and chemical compatibility. Surface smoothness and internal diameter consistency further influence flow efficiency and wear resistance.
Compliance with regional and international standards ensures safe operation. SAE, NPT/NPTF, BSP, ISO, and JIS standards govern thread forms, pressure ratings, and mechanical seal tolerances. High-pressure systems require flanged fittings with proper bolt patterns, O-ring seating, and gasket specifications. Verification of Class or PN rating ensures fittings withstand operational pressures without leakage. Proper documentation of standards adherence facilitates industrial inspections and certification.
Installation complexity influences long-term reliability. Unions provide rapid access for inspection, whereas flanged fittings enable moderate maintenance for larger diameter pipelines. Correct torque sequencing, uniform O-ring compression, and gasket alignment prevent leaks. CNC-machined flange faces ensure micron-level flatness, minimizing stress points. Regular inspection schedules focusing on bolt tension, seal wear, and alignment preserve system integrity.
Understanding the four main types of fittings—directional, branching, reducing, and joining—provides clarity in designing and maintaining piping systems. Proper selection of elbows, tees, reducers, and flanged fittings ensures efficient flow, stable pressure, and long-term reliability while reducing common issues like leaks or turbulence.
Shanxi Jin Steel Casting Co.,Ltd. offers flanged fittings and other components designed with material compatibility, precision machining, and pressure standards in mind. Integrating these products into your system helps streamline installation, facilitates maintenance, and supports consistent operational performance, providing practical value in both industrial and architectural applications.
A: The four primary types are directional fittings (elbows), branching fittings (tees and crosses), reducing fittings (reducers and adapters), and joining fittings (couplings, unions, flanged fittings).
A: Flanged fittings use bolted connections with gaskets or O-rings, providing moderate maintenance access and high-pressure tolerance, unlike permanent welded or threaded joints.
A: Reducing fittings connect pipes of different diameters, controlling flow rate and pressure. Eccentric reducers are preferred for horizontal lines to avoid trapped air and cavitation.
A: Stainless steel 316, carbon steel, brass, and PVC are typical. Material choice depends on fluid type, pressure, temperature, and corrosion resistance requirements.
A: Evaluate flow direction, volume, and pressure, then match fitting type and material. Consider installation access, maintenance needs, and compliance with standards like SAE, ISO, or JIS.
A: Avoid misaligned flanges, incorrect elbow radius, mismatched thread standards, and improper reducer orientation. Proper torque and gasket placement are essential for leak prevention.
