Pipelines carrying water, chemicals, or steam often face high pressures, frequent maintenance needs, and challenging environmental conditions. Ensuring secure, leak-proof connections is critical, and a properly selected flanged fitting can simplify installation, allow easier inspections, and extend system lifespan. Understanding the different types, materials, and pressure classes of flanged fittings helps prevent costly failures and ensures reliable performance under demanding conditions. Readers will gain practical insights on choosing the right fitting, proper installation techniques, and effective maintenance strategies to keep piping systems safe and efficient.
A flanged fitting is a mechanical connector designed to join pipes, valves, pumps, and other components in industrial piping systems. It consists of a protruding rim or collar known as a flange, a gasket to seal the joint, and bolts that provide uniform clamping pressure around the circumference. This configuration ensures a pressure-tight seal capable of handling a wide range of operating pressures and temperatures. Flanged fittings allow for repeated assembly and disassembly without compromising system integrity, distinguishing them from welded or permanently fixed joints. The sealing effectiveness often depends on the flange face type—Raised Face (RF) or Ring-Type Joint (RTJ)—and the material compatibility between the flange and the gasket.
Flanged fittings come in various types to accommodate different piping configurations:
Flange Type | Typical Application | Pressure Range (ANSI / ASME) |
Weld Neck | High-pressure steam, chemical, oil & gas | 150#–2500# |
Slip-On | Low to medium pressure water or gas lines | 150#–600# |
Socket Weld | Small-bore piping, moderate pressure | 150#–900# |
Threaded | Low-pressure, compact installations | 150#–300# |
Blind | Pipeline termination or isolation | 150#–2500# |
Lap Joint | Systems requiring frequent dismantling | 150#–900# |

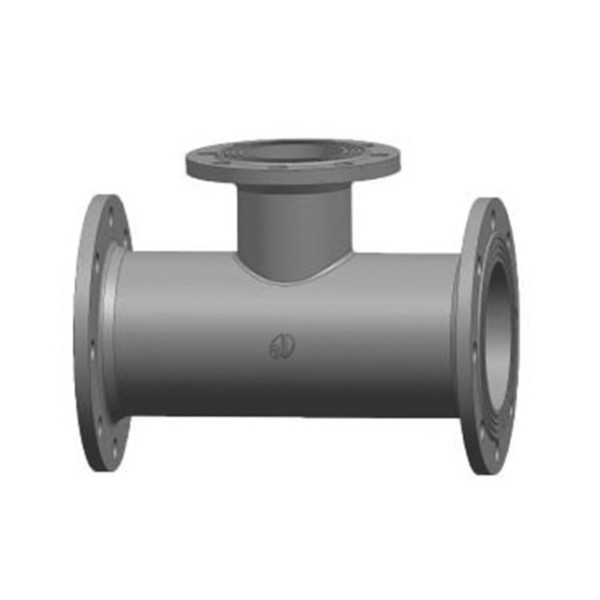

Elbows / Tees / Crosses | Directional flow or split pipelines | 150#–600# |

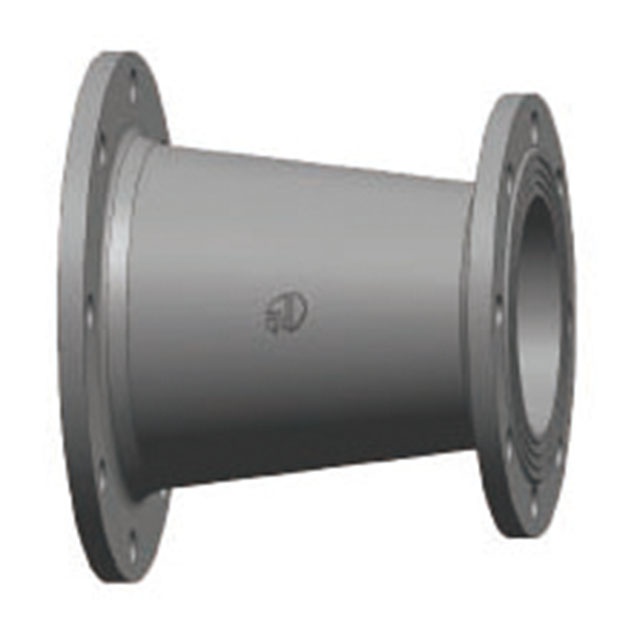

Reducers | Transition between different pipe diameters | 150#–900# |
Each type provides distinct advantages based on installation constraints, maintenance needs, and operating conditions. Weld Neck flanges, for instance, excel in high-temperature or high-pressure applications due to the tapered hub that reduces turbulence and stress concentration. Conversely, Slip-On flanges are easier to install and cost-effective for moderate pressures.
Flanged fittings significantly enhance maintainability in piping networks. Disassembly for inspection or repair requires unbolting rather than cutting, enabling rapid replacement of worn components or gaskets. Their modular design also facilitates cleaning and prevents contamination in fluid systems, which is critical in chemical or water treatment applications. Compared to welded joints, these fittings reduce downtime during scheduled maintenance, while the uniform load distribution around the flange head minimizes the risk of loosening. Pro-Tip: Avoid uneven bolt tightening and always follow cross-torquing sequences; improper torque application is one of the most common causes of leakage in flanged assemblies.
Flange dimensions are standardized to ensure interoperability across different manufacturers. Key parameters include:
● Nominal Pipe Size (NPS): Standard designation reflecting the intended pipe diameter.
● Flange Outer Diameter (OD): Provides space for bolt placement and alignment.
● Bolt Circle Diameter (BCD) & Number of Bolt Holes: Determines structural load distribution.
● Flange Thickness: Varies according to pressure rating and material.
Pressure classes, defined under ANSI/ASME B16.5/B16.47, EN 1092-1, and ISO 7005-1, indicate the maximum allowable working pressure. For example, a Class 300# flange made of ASTM A105 carbon steel can withstand up to 740 psi at ambient temperatures. Correctly pairing flange type, pressure class, and gasket material is essential to prevent leaks and ensure long-term system reliability.
Flanged fittings are most commonly fabricated from carbon steel, stainless steel (grades 304, 316, 321), and alloy steel. Carbon steel, often specified as ASTM A105, offers high tensile strength and moderate corrosion resistance, making it suitable for oil, gas, and water systems under elevated pressures. Stainless steel variants provide superior corrosion resistance and operate effectively across a broad temperature range, supporting chemical and steam applications. Alloy steels, enhanced with chromium and molybdenum, excel in high-pressure and high-temperature conditions such as refineries and power plants. Pressure class compatibility and flange face type must be confirmed before installation.
For offshore, subsea, or chemical processing environments, Duplex 2205, Super Duplex 2507, and nickel-based alloys like Inconel or Hastelloy are preferred. These materials provide high yield strength, exceptional pitting and crevice corrosion resistance, and maintain integrity under extreme temperature fluctuations. Super Duplex, for example, can withstand pressures exceeding ANSI Class 900# in seawater applications. Selecting these alloys requires evaluating both chemical compatibility and long-term stress corrosion cracking resistance.
Lightweight and chemically resistant options include PVC, CPVC, PP, PVDF, and FRP. These materials are ideal for low-pressure systems in water treatment, chemical transport, or sewage networks. While non-metallic flanges reduce weight and prevent corrosion, they are limited by temperature tolerance and mechanical strength. A practical approach involves evaluating the chemical aggressiveness of the fluid and selecting composites with adequate thermal expansion coefficients.
Material selection must align with flange pressure rating and gasket compatibility. Raised Face (RF) faces paired with carbon steel or stainless steel are effective for moderate pressures, while Ring-Type Joint (RTJ) designs are necessary for high-pressure or high-temperature applications. Tongue & Groove (T&G) and Male & Female (M&F) faces offer precise alignment for specialized operations. Visual checklists mapping material, pressure class, and flange face type significantly reduce installation errors.
Proper bolt tightening is essential for achieving a uniform pressure seal in flanged fittings. Cross-torquing sequences ensure even load distribution across all bolts, preventing localized stress that can compromise gasket integrity. Torque wrenches calibrated to the flange’s pressure class—ranging from ANSI 150# to 2500#—help maintain consistent torque values, while Rotabolt strain indicators provide a direct measurement of bolt stretch, confirming proper clamping force. Uneven compression or skipped steps during tightening is a primary cause of leakage in high-pressure systems.
Selecting the correct gasket type for the flange face is critical for sealing performance. Raised Face (RF) flanges paired with elastomeric or metallic gaskets provide reliable compression over a moderate pressure range. Ring-Type Joint (RTJ) gaskets are designed for high-pressure or high-temperature applications, filling machined grooves to maintain a metal-to-metal seal. Tongue & Groove (T&G) and Male & Female (M&F) faces ensure precise alignment, reducing misplacement during assembly. Expert insight: improper seating or using a gasket incompatible with the flange material can accelerate wear or cause stress corrosion, particularly in duplex stainless steel or super duplex installations.
Safe handling during installation protects both personnel and system integrity. When installing blind or spectacle blinds, ensure the flange joint is pried apart evenly to avoid pinching or uneven load on the gasket. Bolts on the far side of the flange should be loosened first during disassembly to safely vent any trapped pressure. Operator safety is further enhanced by using lifting tools for heavy flanges and verifying flange alignment before final tightening.
Several recurring mistakes can reduce the reliability of flanged fittings:
● Misalignment: Even slight angular deviation increases leakage risk. Use alignment guides or visual inspection.
● Incorrect Torque: Over- or under-torquing can deform the flange or gasket. Always follow cross-torque procedures.
● Gasket Misplacement: Incorrect positioning can create flow obstructions or leak paths. Always verify placement before tightening.
● Incompatible Flange Types: Mixing pressure classes or face types can lead to catastrophic failure; consult pressure-class tables before installation.
Checklist tables can be used to map each error to preventive measures, helping installation teams maintain consistency and safety in critical piping systems.
Routine inspection of flanged fittings is crucial for system reliability and leak prevention. Inspect bolts for loosening or uneven tension, examine gaskets for signs of wear or compression set, and check flange faces for corrosion or pitting. Minor leaks can often be detected by observing dampness, discoloration, or using ultrasonic inspection tools in high-pressure lines.
Leak detection should combine visual inspection, pressure testing, and functional assessment of seals. For Raised Face (RF) flanges, check for gaps along the bolt circle; for Ring-Type Joint (RTJ) flanges, inspect the groove and metal gasket integrity. Replacing worn O-Rings or RTJ seals involves loosening the bolts sequentially to relieve pressure safely and ensuring the flange faces remain parallel during reassembly. Always retorque bolts in cross-patterns to the specified class value after replacement to prevent uneven compression.
Flanged fittings in subsea, cryogenic, or chemical processing environments demand heightened attention. Duplex 2205 or Super Duplex 2507 materials resist pitting and stress corrosion, but periodic inspection for chloride-induced corrosion or fatigue cracking is advised. Cryogenic systems require careful monitoring of thermal contraction effects on flange alignment and gasket seating.
Understanding the service life of gaskets and flanges aids in maintenance planning. Blind or spectacle blind flanges should be inspected for face wear and corrosion after repeated installations. Gasket longevity depends on operating pressure, temperature, and chemical exposure; replace proactively rather than reactively. A visual table mapping Material / Pressure Class / Recommended Maintenance Interval can guide systematic inspection schedules, reducing unscheduled downtime and enhancing operational safety.
Stainless steel flanged fitting in high-pressure steam, cryogenic, and offshore environments require precise material selection and seal type to maintain system integrity. Duplex 2205 and Super Duplex 2507 stainless steels offer superior pitting resistance and tensile strength, ensuring reliable operation under pressures exceeding ANSI Class 900#. Ring-Type Joint (RTJ) gaskets provide metal-to-metal seals essential for extreme temperatures and aggressive media.
Compact flanges with dual IX seal rings enable higher performance in restricted spaces. Tight tolerances improve sealing efficiency but demand careful handling during assembly. Misalignment or uneven bolt torque can reduce the effectiveness of the dual seal, increasing leakage risk.
Chemical plants, water treatment facilities, and oil & gas pipelines often rely on specialized flanged fittings to handle extreme operating conditions. For example, flanged elbows and reducers in a chemical processing unit manage directional flow while maintaining seal integrity under corrosive fluids. Annotated diagrams of tees and cross fittings demonstrate how pressure distribution and material selection prevent leaks in high-stress points. Using Super Duplex or Inconel materials in critical segments has reduced maintenance downtime and enhanced lifecycle performance compared with conventional stainless steel.
Understanding the function, types, and material considerations of a flanged fitting allows engineers and technicians to design and maintain piping systems with greater reliability. Correct selection of flange type, gasket, and pressure class, combined with proper installation and routine inspection, helps prevent leaks and operational downtime.
Products from Shanxi Jin Steel Casting Co.,Ltd. provide consistent quality and adherence to industry standards, supporting safe assembly and long-term performance. By integrating these fittings into your system, you can streamline maintenance, enhance seal integrity, and ensure stable operation even under high-pressure or extreme temperature conditions.
A: A flanged fitting connects pipes, valves, and pumps, providing a secure, pressure-tight joint that allows easy assembly, disassembly, and maintenance in piping systems.
A: Flanged fittings use bolts and gaskets to create a seal, offering better support for large-diameter pipes and high-pressure applications, unlike threaded fittings which rely on screw threads.
A: Common materials include carbon steel, stainless steel, alloy steel, and non-metallic composites like PVC or FRP, chosen based on pressure, temperature, and chemical compatibility.
A: Proper installation involves aligning flange faces, using the correct gasket, applying cross-torquing on bolts, and verifying pressure class compatibility to prevent leaks and stress damage.
A: Yes, flanged fittings are designed for repeated assembly and disassembly, but gaskets and bolts should be inspected or replaced to maintain a reliable pressure seal.
A: Leaks often result from improper bolt torque, misaligned flanges, damaged gaskets, or using incompatible flange types or materials under operational pressures.
