Why do some pipe fittings fail? Material choice often decides. Many systems use iron fittings. Two common types exist.
Ductile Iron Fitting and malleable iron fittings. They look similar. But they behave differently.
In this article, you will learn their structure, strength, and uses.

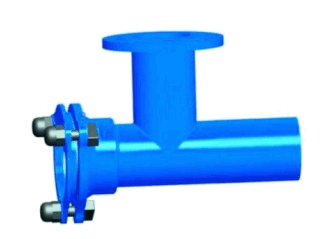

The key difference between ductile iron and malleable iron begins at the microstructural level. Both materials belong to the cast iron family, but the internal form of carbon within the metal matrix determines how each material behaves under stress, pressure, and deformation. In piping systems and mechanical fittings, these structural differences directly influence strength, crack resistance, and durability.
Ductile iron is characterized by the presence of graphite nodules, also known as spheroidal graphite, embedded within the iron matrix. These small spherical particles form during the casting process when nodulizing elements such as magnesium are added to molten iron. The spherical shape of the graphite is critical because it prevents stress from concentrating along sharp edges or flakes, which is a common problem in other forms of cast iron.
Because the graphite appears as rounded nodules, mechanical stress can spread more evenly throughout the material. Instead of creating weak points, the nodules allow the metal to flex and absorb force, which significantly improves tensile strength and crack resistance. As a result, components made from ductile iron can tolerate bending, vibration, and pressure changes without sudden failure.
Key structural characteristics of ductile iron include:
● Spherical graphite nodules that reduce stress concentration inside the metal.
● Improved tensile strength, allowing the material to withstand higher loads.
● Enhanced ductility, meaning the metal can deform before fracturing.
● Better fatigue resistance, which is important in systems exposed to repeated stress cycles.
In practical applications, this microstructure makes ductile iron particularly suitable for heavy-duty pipe fittings, valves, and infrastructure systems, where long-term durability and structural reliability are essential.
Malleable iron achieves its mechanical properties through a different structural arrangement of carbon known as temper carbon. Unlike ductile iron, malleable iron does not contain graphite nodules formed during casting. Instead, the carbon structure develops through a long heat-treatment process, which transforms brittle white cast iron into a more workable material.
During this process, carbon precipitates into irregular clusters or rosette-like structures within the iron matrix. These carbon particles improve the metal's ability to deform without breaking, which is why the material is called "malleable." However, because the carbon particles are not spherical, they do not distribute stress as effectively as the graphite nodules in ductile iron.
As a result, malleable iron provides moderate ductility and strength, but its structural performance under heavy loads is typically lower than that of ductile iron.
Important microstructural characteristics of malleable iron include:
● Temper carbon clusters created through annealing rather than casting.
● Improved ductility compared with gray cast iron, making the material less brittle.
● Good machinability, allowing precise threaded fittings and complex shapes to be manufactured.
● Moderate tensile strength, which is sufficient for many standard plumbing and mechanical applications.
This structure makes malleable iron well suited for smaller components and threaded fittings, where precise shaping and machinability are more important than extreme strength.
To better understand how these two materials differ, the table below summarizes their internal carbon structures and resulting mechanical behavior.
Property | Ductile Iron | Malleable Iron |
Carbon structure | Spherical graphite nodules | Temper carbon clusters |
Stress distribution | Excellent stress dispersion | Moderate stress dispersion |
Crack resistance | High resistance to crack formation | Lower resistance compared to ductile iron |
Flexibility | High ductility and deformation capability | Moderate ductility |
Typical use | Industrial pipelines and heavy fittings | Plumbing fittings and small components |
The most important takeaway is that graphite shape directly affects mechanical performance. Spherical graphite allows ductile iron to resist cracking and handle higher loads, while the clustered carbon in malleable iron provides workable flexibility but with lower structural strength.
Although ductile iron and malleable iron may appear similar in finished products such as pipe fittings, their manufacturing processes are fundamentally different. These production methods not only influence material properties but also affect production speed, scalability, and cost.
Ductile iron fittings are manufactured through a casting process that modifies the internal structure of molten iron before it solidifies. The critical step in this process is the addition of nodulizing elements, most commonly magnesium or cerium. These elements change the way carbon precipitates during cooling, causing graphite to form spherical nodules rather than flakes.
The basic production stages typically include:
1. Melting raw iron and alloying elements in a furnace.
2. Adding magnesium or other nodulizing agents to the molten metal.
3. Casting the treated metal into molds for pipes or fittings.
4. Cooling and solidification, during which graphite nodules form.
5. Finishing operations, such as machining or coating.
Because the nodular graphite forms during the casting stage itself, ductile iron production is relatively efficient and suitable for large-scale manufacturing. This efficiency is one reason why Ductile Iron Fitting components are widely used in municipal infrastructure and industrial piping systems.
Key advantages of this production method include:
● Faster production cycles compared with heat-treated irons.
● Consistent mechanical properties across large batches.
● Cost-effective mass manufacturing for industrial applications.
The production of malleable iron involves a more complex sequence of steps because the desired microstructure cannot form directly during casting. Instead, manufacturers must first create white cast iron, which contains brittle iron carbides.
Once the casting is completed, the material undergoes an extended annealing process, which transforms the internal carbon structure into temper carbon.
The typical steps include:
● Casting white iron components.
● Heating the castings in a furnace at very high temperatures.
● Maintaining these temperatures for an extended period (often many hours or days).
● Slowly cooling the material to allow carbon transformation.
This heat treatment breaks down the brittle carbides and redistributes carbon into small clusters throughout the metal matrix. The result is a material that is more flexible and machinable than standard cast iron.
Because of the lengthy annealing process, malleable iron production tends to be slower and more energy-intensive than ductile iron casting.
The different manufacturing methods have significant implications for production efficiency and cost. Ductile iron fittings can often be produced more quickly and economically because the desired graphite structure forms directly during casting, eliminating the need for long heat-treatment cycles.
The comparison below highlights these production differences:
Manufacturing Factor | Ductile Iron | Malleable Iron |
Primary production method | Nodulizing treatment during casting | Casting followed by annealing |
Heat treatment requirement | Minimal | Extensive annealing required |
Production speed | Faster | Slower |
Energy consumption | Lower | Higher |
Typical manufacturing scale | Large-scale industrial production | Smaller precision fittings |
These differences explain why ductile iron has become increasingly common in large infrastructure projects and industrial pipeline systems, where production efficiency and structural strength are both critical considerations. Meanwhile, malleable iron remains widely used for smaller threaded fittings and mechanical components, where machinability and dimensional precision are important.
When evaluating pipe fittings for industrial or infrastructure systems, mechanical performance is often the most critical factor. Engineers typically compare materials based on strength, flexibility, pressure tolerance, and durability under repeated stress. Although both materials belong to the cast iron family, the mechanical behavior of a Ductile Iron Fitting differs noticeably from that of a malleable iron fitting due to differences in graphite structure and production methods. These variations influence how the fittings respond to tension, bending forces, internal pressure, and long-term operational loads.
Tensile strength measures the maximum pulling force a material can withstand before breaking. In this category, ductile iron generally outperforms malleable iron because its spherical graphite nodules distribute stress more evenly throughout the metal matrix. This internal structure reduces the likelihood of crack initiation and allows the material to carry higher loads.
In practical engineering terms, the tensile strength of ductile iron commonly ranges between 60,000 and 120,000 psi, depending on grade and treatment. Malleable iron typically provides a slightly lower range, often around 50,000 to 90,000 psi. While both materials offer sufficient strength for many mechanical systems, ductile iron tends to provide a larger safety margin for demanding applications such as heavy pipeline infrastructure or industrial equipment.
Below is a simplified comparison of the tensile performance characteristics:
Mechanical Property | Ductile Iron Fittings | Malleable Iron Fittings |
Typical tensile strength | 60,000–120,000 psi | 50,000–90,000 psi |
Stress distribution | Excellent due to graphite nodules | Moderate due to temper carbon clusters |
Resistance to crack initiation | High | Moderate |
Suitability for heavy structural loads | Very suitable | Suitable for moderate loads |
Because of these properties, ductile iron fittings are frequently selected for systems where structural strength and safety margins are critical.
Ductility refers to a material's ability to deform under stress without fracturing. This property is particularly important in piping systems that experience vibration, temperature changes, or shifting loads. The nodular graphite structure inside ductile iron allows the metal to stretch, bend, or twist while maintaining its structural integrity.
In contrast, malleable iron also offers flexibility compared with traditional cast iron, but its irregular carbon clusters do not distribute stress as effectively. As a result, while malleable iron can tolerate moderate deformation, it may not perform as well under extreme mechanical strain or sudden bending forces.
Several structural behaviors illustrate this difference:
● Ductile iron fittings
○ Can withstand significant bending without cracking because stress spreads around graphite nodules.
○ Maintain structural integrity under dynamic loads such as vibration or shifting pipelines.
○ Offer better deformation tolerance before reaching the fracture point.
● Malleable iron fittings
○ Provide reasonable flexibility for small threaded components.
○ Perform well in applications requiring moderate bending or shaping.
○ May develop cracks sooner when exposed to high tensile strain or repeated deformation.
This difference in ductility explains why ductile iron is commonly used in large infrastructure systems, while malleable iron is often used for smaller mechanical fittings.
Internal pressure resistance is another essential consideration for pipe fittings. Materials that combine high tensile strength with ductility are generally better at handling internal fluid pressure without leaking or failing.
Ductile iron fittings often demonstrate higher pressure capacity because their nodular graphite structure allows the metal to resist internal expansion forces. For example, certain Class 300 ductile iron fittings can withstand pressures approaching 500 PSI in properly designed systems. Malleable iron fittings, while still reliable, typically operate at somewhat lower pressure limits depending on size and classification.
Key pressure-handling factors include:
● Wall thickness and fitting design
● Tensile strength of the base material
● Ability of the material to resist crack formation under internal stress
In industrial pipeline systems carrying water, chemicals, or compressed fluids, the higher pressure tolerance of ductile iron fittings can provide improved reliability and reduced risk of structural failure.
Mechanical systems often experience repeated loading cycles, sudden pressure changes, or external mechanical shocks. In these environments, fatigue resistance becomes an important material property.
Ductile iron is widely recognized for its ability to absorb energy from impacts and repeated stress. The graphite nodules inside the material act as small stress absorbers, allowing the metal to dissipate energy rather than concentrating it in a single location. This property improves both impact resistance and long-term fatigue durability.
Malleable iron also offers solid durability and performs well in many standard mechanical applications. However, its fatigue resistance may be lower when exposed to heavy industrial loads or constant vibration.
In summary, ductile iron generally performs better in environments where fittings must endure:
● Repeated pressure cycles
● Mechanical vibration
● Sudden impact forces
● Long operational lifetimes with minimal maintenance
These advantages explain why ductile iron fittings are often preferred for infrastructure systems, heavy industrial pipelines, and machinery components that experience dynamic stress.
The performance characteristics of each material naturally influence where it is most commonly used. While both materials appear in piping systems, their typical applications reflect differences in strength, machinability, and structural durability.
Because of their strength and pressure tolerance, ductile iron fittings are widely used in large-scale industrial and infrastructure systems. These systems require components that can operate reliably under high stress, fluctuating loads, and demanding environmental conditions.
Typical industrial applications include:
● Municipal water distribution networks Water transmission systems require durable fittings capable of handling continuous pressure and long service lifetimes. Ductile iron’s strength and corrosion resistance make it well suited for these infrastructure networks.
● Industrial pipelines Manufacturing plants, chemical facilities, and processing systems often rely on ductile iron fittings to connect pipes carrying liquids or gases under significant pressure.
● Mechanical and equipment components Valves, pump housings, strainers, and other heavy-duty mechanical parts are frequently manufactured using ductile iron because of its fatigue resistance and structural stability.
The combination of strength, ductility, and manufacturing efficiency makes ductile iron an ideal material for large, load-bearing pipe fittings and industrial equipment parts.
Malleable iron fittings remain widely used in industries where precision machining and moderate strength are more important than extreme load capacity. The material’s machinability allows manufacturers to produce threaded components with accurate dimensions and smooth finishes.
Common applications include:
● Threaded plumbing fittings Many plumbing systems use malleable iron elbows, tees, and couplings because the material machines easily and forms reliable threaded connections.
● Gas line fittings Residential and commercial gas distribution systems often use malleable iron fittings that provide adequate strength for moderate pressure levels.
● Electrical conduit and mechanical hardware Junction boxes, conduit connectors, brackets, and other hardware components frequently use malleable iron due to its formability and cost efficiency.
These applications demonstrate how malleable iron performs best in smaller components that require precision manufacturing rather than extreme structural strength.
Overall, both materials play important roles in modern piping systems. Ductile iron fittings tend to dominate in large-scale industrial infrastructure, while malleable iron fittings continue to serve reliably in plumbing, hardware, and mechanical applications where machinability and moderate strength are sufficient.
Ductile and malleable iron fittings serve many piping systems. A Ductile Iron Fitting offers higher strength and pressure tolerance. Malleable iron suits smaller parts.
Understanding these differences helps choose reliable fittings.
Shanxi Jin Steel Casting Co.,Ltd. provides durable iron fittings with consistent quality and support.
A: A Ductile Iron Fitting is a pipe fitting made from nodular cast iron, designed for high strength, pressure resistance, and durability in industrial piping systems.
A: Yes. A Ductile Iron Fitting typically offers higher tensile strength and better fatigue resistance than malleable iron fittings.
A: A Ductile Iron Fitting is preferred in high-pressure pipelines, municipal water systems, and heavy industrial applications.
A: Malleable iron fittings are commonly used for threaded plumbing components because they provide good machinability and moderate strength.
