Piping systems across industrial, commercial, and residential settings demand reliable connections that balance strength, accessibility, and cost. Choosing between a flanged fitting and a threaded connection often raises questions about pressure tolerance, installation complexity, and long-term performance. Understanding these differences helps ensure proper material selection, alignment, and maintenance strategies. Readers can gain insights into which fitting type best suits specific pipe diameters, fluid types, and operational conditions, while also learning practical measures to prevent leaks, corrosion, and misalignment for safer, more durable systems.

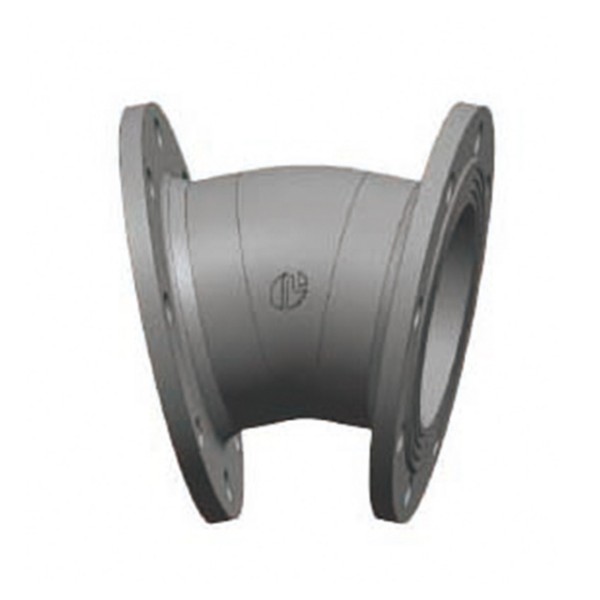

When designing piping systems, understanding pressure and temperature constraints is critical for long-term reliability. Flanged fittings are engineered to handle high-pressure environments, commonly rated as Class 150, 300, or 600 according to ANSI/ASME B16.5 standards. These ratings correspond to maximum allowable pressures ranging roughly from 285 psi to over 1,480 psi at ambient temperatures, with material-dependent reductions at elevated temperatures. Threaded fittings, in contrast, are generally limited to low- and medium-pressure applications, typically below 400 psi, and are not recommended for systems exceeding 200°F due to risk of thread fatigue and seal failure. Industrial case studies indicate that in high-temperature steam lines or chemical process pipelines, high-pressure hydraulic flanged fitting maintain seal integrity where threaded connections would suffer micro-leakage or joint loosening.
Pipe diameter directly influences the choice between flanged and threaded fittings. Flanged connections are ideal for medium to large pipes—commonly above 3 inches in diameter—because the bolted flange design distributes mechanical stress uniformly, preventing deformation under internal pressure. Smaller pipelines under 3 inches benefit from threaded fittings, which provide compact and cost-effective installation while maintaining adequate fluid control. The internal geometry of flanged fittings also reduces turbulence, ensuring smoother flow and minimizing energy loss in high-volume applications.
Pipe Diameter | Recommended Fitting | Typical Pressure Range | Flow Impact |
<3" | Threaded | 0–400 psi | Slight turbulence possible |
3"–12" | Flanged | 285–1480 psi | Smooth, efficient flow |
>12" | Flanged | 300–1480+ psi | Optimized for large volume |
Flanged fittings excel in scenarios requiring frequent inspection, maintenance, or component replacement. The combination of gasket and bolted flange allows technicians to disassemble segments without cutting pipes, reducing downtime. Threaded fittings, although more compact, demand sequential disassembly and may require pipe removal if access is limited, making repairs cumbersome in tight layouts.
Pro-Tips:
● Schedule bolt torque checks every 6–12 months to prevent gasket creep.
● Inspect gaskets for signs of compression set or chemical degradation, particularly in high-temperature or corrosive environments.
● Use thread sealant selectively for threaded fittings; avoid over-tightening, which can strip threads or crack pipe ends.
Selecting the optimal connection requires balancing initial investment against operational longevity. Flanged fittings involve higher upfront costs due to additional materials (bolts, nuts, gaskets) and labor-intensive installation. However, their long-term advantages—reusability, simplified maintenance, and reliability under extreme conditions—often offset initial expenditures in industrial systems. Threaded fittings offer immediate cost savings and reduced installation time, making them suitable for residential or light industrial applications. Material selection further influences economics: stainless steel provides corrosion resistance but higher cost, carbon steel offers strength with moderate expense, while PVC or cast iron may reduce upfront costs but limit temperature tolerance. Lifecycle analyses reveal that in large-scale chemical or steam systems, flanged fittings reduce downtime costs and maintenance interventions by 20–30% compared to threaded alternatives.
Proper flange installation begins with precise alignment to prevent stress concentration and leakage. Flanges must be centered on the pipe ends with a uniform gap to accommodate gasket compression. Gasket seating stress should be evenly distributed; uneven torque can lead to localized deformation, reducing sealing effectiveness and accelerating wear. Industry guidelines, such as ANSI/ASME B16.5, recommend sequential bolt tightening in a crisscross pattern to ensure uniform compression. Misalignment or non-uniform torque may result in joint leaks, bolt fatigue, or flange warping, particularly under high-pressure or thermal cycling conditions.
Threaded fittings require adherence to precise standards for proper sealing. Male and female threads must match, with tapered threads (NPT, BSPT) self-tightening as torque is applied, while straight threads (NPS, BSPP, UTS) rely on sealants or gaskets for fluid integrity. Sealant selection is critical; PTFE tape or liquid thread sealants must be compatible with the transported medium to prevent chemical degradation. Users frequently encounter cross-threading or vibration-induced loosening if threads are misaligned or over-tightened. Correct torque and lubrication during assembly minimize these risks and enhance long-term reliability.
Threaded connections excel in compact installations where flanged fittings are impractical due to spatial restrictions. Cramped layouts, such as residential plumbing manifolds or small hydraulic lines, benefit from the smaller footprint of threaded fittings. Accessibility for wrenches and tools must be considered to avoid over-tightening, which can strip threads or crack pipe ends. Using hand-tight followed by torque verification ensures secure joints without compromising structural integrity. When designing layouts, account for future maintenance access to prevent operational bottlenecks.
Several practical pitfalls recur in both flanged and threaded installations:
● Over-torquing bolts: Leads to flange deformation or thread stripping.
● Gasket misplacement: Causes uneven compression and potential leaks.
● Using incompatible sealants: Results in chemical attack or gasket degradation.
● Ignoring alignment: Induces stress concentrations that shorten component life.
● Neglecting corrosion protection: Bolts and flanges exposed to moisture or chemicals can fail prematurely.
Material selection directly influences the longevity and reliability of piping systems. Stainless steel flanged fittings provide excellent resistance against oxidation and aggressive chemical media, making them ideal for transporting corrosive fluids such as acids, chemical gases, or saline water. Carbon steel, while mechanically robust, requires protective coatings or cathodic protection to prevent corrosion when used with water or mild chemicals. PVC fittings are lightweight and chemically inert but are limited to low-temperature and low-pressure applications. Choosing the appropriate material according to fluid type mitigates leakage risks and minimizes maintenance interventions, especially in high-demand industrial environments. Flanged fittings excel in hazardous media applications due to their leak-proof gasket interface and bolted construction, offering superior containment compared to threaded alternatives.
Thermal cycling and mechanical vibrations present significant challenges in industrial piping. Flanged fittings distribute stress across the bolted flange face and gasket, effectively absorbing pipe expansion, contraction, and minor misalignments. This stress distribution prevents local fatigue and reduces the likelihood of micro-leakage, even under high-temperature variations or intermittent pressure surges. Threaded fittings, in contrast, concentrate stress at the thread roots, making them susceptible to fatigue cracking and loosening under vibration or thermal expansion. Implementing proper flange alignment, sequential bolt torque, and vibration dampening in design minimizes these risks and ensures long-term system integrity, addressing user concerns about leaks and metal fatigue in critical applications.
Certain high-pressure or high-temperature environments demand specialized flange types. Weld neck flanges provide a smooth flow transition and superior strength, ideal for high-pressure steam or chemical lines. Slip-on flanges allow easier alignment and installation for medium-pressure applications, while socket weld flanges are suitable for small-diameter high-pressure pipelines. Selecting the correct flange type enhances performance, safety, and durability.
Flange Type | Typical Application | Material Suitability | Pressure/Temperature Notes |
Weld Neck | High-pressure steam, chemical lines | Stainless steel, carbon steel | High-pressure/temperature stable |
Slip-On | Medium-pressure water or oil lines | Stainless steel, PVC | Moderate pressure, easy alignment |
Socket Weld | Small-diameter high-pressure piping | Stainless steel, carbon steel | Compact, high-pressure compatible |
Flanged fittings are indispensable in high-pressure and high-temperature industrial systems where safety and maintainability are paramount. Applications such as chemical processing plants, oil refineries, and high-pressure steam lines rely on Class 300–600 flanged fittings constructed from stainless steel or carbon steel to handle pressures exceeding 1,000 psi and temperatures above 400°F. The bolted flange and gasket combination allows for periodic inspection and component replacement without dismantling entire pipe sections. Proper alignment and torque application according to ANSI/ASME B16.5 standards further ensure leak-free operation under extreme thermal cycling and mechanical stress.
Threaded fittings dominate small-diameter and low-pressure systems, including residential water supply, HVAC lines, and small-scale industrial applications. Their compact footprint, simple male-to-female connection, and cost-effectiveness make them ideal for pipelines under 3 inches in diameter and operating below 400 psi. Minimal tool requirements and rapid installation reduce labor costs and facilitate quick retrofits or temporary setups. Although not designed for high-temperature or corrosive media, threaded fittings provide sufficient reliability when vibration and thermal variation are limited.
Hybrid pipelines often integrate flanged and threaded fittings to balance robustness and space efficiency. Engineers must carefully consider compatibility, ensuring that gasket materials, thread standards (NPT, BSPT), and pressure ratings align across the system. Retrofit scenarios in older facilities frequently require inserting threaded connections into existing flanged networks. Correct torque application, thread sealant selection, and alignment checks mitigate leakage risks and mechanical stress concentrations. Planning the interface zones with proper support and expansion allowances reduces the likelihood of joint fatigue or vibration-induced loosening.
Selecting the right connection—whether a flanged fitting or a threaded alternative—depends on factors such as system pressure, pipe diameter, material compatibility, maintenance accessibility, and overall cost. Evaluating these criteria allows engineers and technicians to balance durability with practical installation and operational requirements.

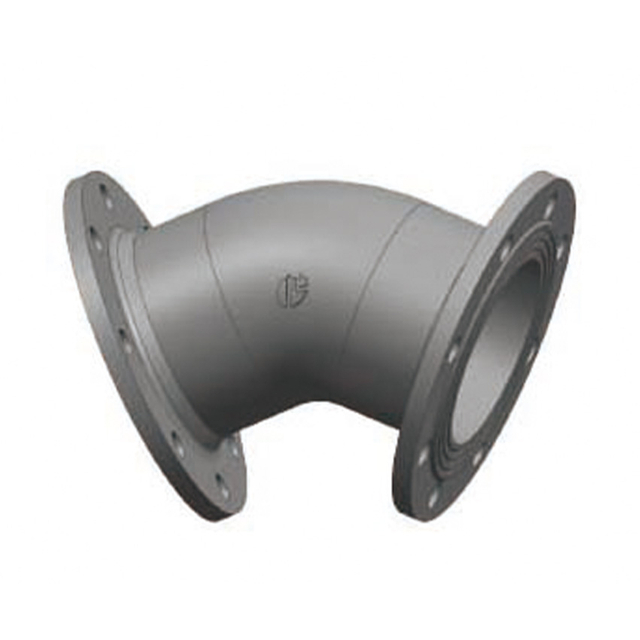

Shanxi Jin Steel Casting Co.,Ltd. provides a range of flanged fittings designed to support these considerations, offering materials and designs suitable for various pressures and fluid types. Using properly specified fittings, combined with adherence to installation and inspection practices, helps maintain system integrity, reduce maintenance interventions, and ensure reliable performance over time.
A: A flanged fitting is a pipe connection using bolted flanges and a gasket. It is commonly used in high-pressure, high-temperature, or industrial piping systems for easy maintenance and leak prevention.
A: Flanged fittings use bolts and gaskets for sealing, suitable for larger pipes and high pressures, while threaded fittings screw directly onto pipes, ideal for smaller diameters and low-pressure applications.
A: Threaded fittings are generally limited to low- and medium-pressure systems and moderate temperatures. High-pressure or high-temperature applications require flanged or welded connections.
A: Key factors include pipe diameter, system pressure, fluid type, maintenance frequency, and available installation space. Flanged fittings suit demanding industrial conditions, threaded for compact, low-pressure setups.
A: Yes, flanged fittings allow sections to be disassembled without cutting pipes, simplifying inspection, gasket replacement, and maintenance compared to threaded connections.
