A leaking joint, a seized threaded connection, or a pump that cannot be removed without cutting pipe can turn routine maintenance into costly downtime. That is where a flanged fitting often makes sense. Instead of creating a permanent or difficult-to-service connection, it provides a bolted, gasketed joint that can handle pressure, vibration, and repeated access when specified correctly. Understanding when to use flange fittings helps engineers, technicians, and buyers choose a connection that balances sealing performance, installation space, maintenance needs, and long-term operating cost.
A flanged fitting becomes more practical as pipe, tube, or hose size increases. Large threaded fittings require high tightening force, more wrench clearance, and careful thread engagement; under pressure spikes or vibration, those interfaces can become hard to trust. In hydraulic service, SAE J518 connections such as Code 61 and Code 62 are used because the load is shared across a bolt pattern rather than concentrated through one threaded joint. That makes them common around pump outlets, cylinder circuits, manifolds, heavy equipment, and industrial hydraulic lines.
Pressure surges also push engineers toward flange-style joints. A system may have a normal working pressure that looks manageable, yet still see short pulses during startup, valve closure, pump cycling, or load changes. A properly selected flanged fitting helps resist those events through a rigid flange head, controlled bolt preload, and a gasket or O-ring face seal. Selection should follow the correct standard and service condition, not appearance.

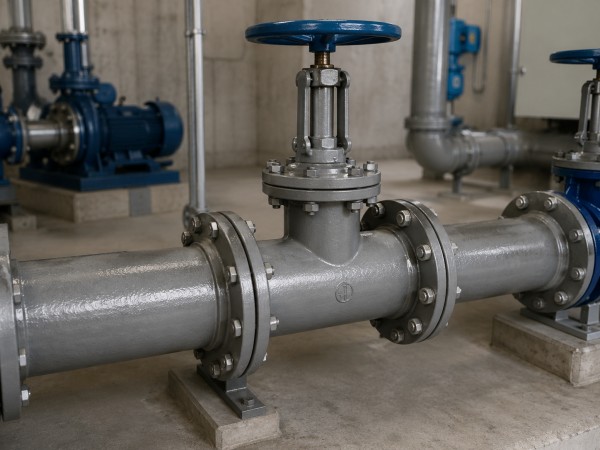

A flanged fitting is often the right choice when equipment must be removed, cleaned, inspected, or replaced without cutting into the system. Pumps, strainers, filters, heat exchangers, valves, and test spools all benefit from a connection that can be unbolted and reassembled. This reduces downtime and avoids welding permits, replacement pipe sections, and unnecessary rework.
The most reliable layouts place flange fittings at planned service boundaries. Welded pipe may be best for permanent routing, while a flanged fitting at the equipment interface gives technicians access where it is actually needed. This hybrid design avoids unnecessary gasketed joints across the whole system. Where shutdown hours are expensive, service access can outweigh initial fitting cost.
Compact machinery often leaves little room for large wrench rotation. A flanged fitting can be assembled by positioning the component and tightening bolts, which helps in crowded skids, mobile equipment, hydraulic manifolds, and retrofit work. This is often called zero-clearance assembly because the fitting does not need to rotate around the pipe axis during final tightening.

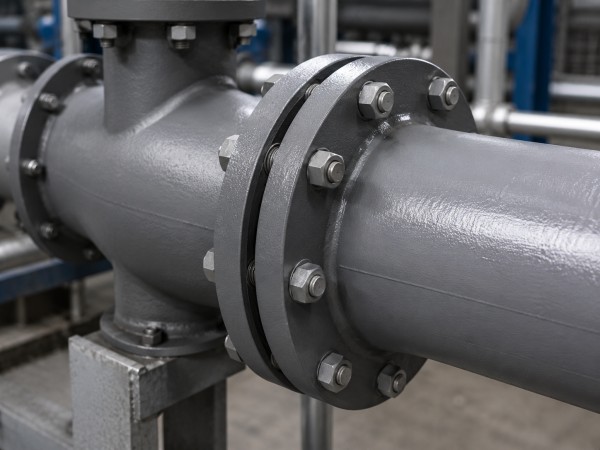

The mechanical advantage of a flange connection comes from load distribution. Instead of relying on one threaded engagement, a flanged fitting uses several bolts to apply clamping force across the flange face. This builds bolt preload gradually and evenly, improving gasket compression. Cross-pattern or star-pattern tightening matters because tightening one side fully before the other can distort the joint and leave part of the seal under-compressed.
This does not make a flange automatically leak-proof. The fitting body may be strong, but the connection only performs as well as its assembly procedure. Bolt grade, washer condition, lubrication, flange parallelism, and torque sequence all affect final bolt load. A quality flanged fitting can still leak if bolts are tightened by feel, the gasket is reused, or pipe load pulls the faces out of alignment.
The gasket or O-ring is the part that blocks the leak path. In many hydraulic flange connections, an O-ring face seal gives a defined sealing point that can be replaced during service. In process piping, the seal may be a flat gasket, spiral wound gasket, full-face gasket, or RTJ gasket depending on pressure, temperature, fluid, and flange face style. A flanged fitting should therefore be treated as a joint system, not just a metal part.
Seal selection starts with the fluid. Hydraulic oil, water, steam, solvents, acids, caustics, and abrasive slurries place different demands on elastomers and gasket materials. Temperature can harden, soften, or creep a seal, while chemicals may cause swelling or cracking. Scratches, corrosion pits, and poor gasket surface finish can still create leak paths.
Flange fittings are often selected for mobile equipment and industrial machinery because these systems rarely operate in calm conditions. Pumps create pulsation, hoses move under load, frames vibrate, and pressure changes send shock through the line. A flanged fitting resists loosening better than many large threaded connections because clamping force is shared and the seal is held between controlled faces. This is valuable near hose bends, pump ports, and cylinder manifolds.
Reliability still depends on the surrounding design. Unsupported pipe can act like a lever and transfer bending load into the flange. Thermal cycling can relax bolt load over time, especially if the gasket creeps or the joint was assembled unevenly. Good practice includes support clamps, hose routing, alignment checks, and startup inspection.
Threaded fittings are simple, compact, and cost-effective for small, low-pressure, non-critical lines. They are common in utility service and applications where the line is not exposed to strong vibration or frequent disassembly. The weakness is that the seal often depends on thread form, sealant, engagement quality, and installation torque. Once the fitting becomes large, installation force becomes awkward and vibration may gradually open a leak path.
A flanged fitting is usually a stronger candidate when the line is larger, the pressure is higher, or the joint will be opened during maintenance. It also reduces the risk of damaging threads through repeated assembly. The tradeoff is more parts, more space, and a controlled tightening process. Buyers should compare failure risk and service access, not only unit price.
Welded joints are excellent for permanent routing. They reduce gasketed leak points, fit into tight pipe racks, and can handle demanding pressure or temperature service when welding and inspection are controlled. Their limitation appears when equipment has to be removed. Cutting, grinding, rewelding, examination, and retesting can turn a simple repair into a longer outage.
A flanged fitting is better where the joint must be opened without rebuilding the line. Valves, pumps, removable spools, and inspection points are typical examples. Many industrial systems use welded pipe for fixed routing and flange fittings at service boundaries. That approach keeps permanent sections robust while preserving access.
Hydraulic adapters are useful in moderate-pressure systems, compact manifolds, and smaller hose assemblies. They provide flexible transitions between ports, threads, and tube or hose ends. As size and pressure increase, however, adapters may become bulky or more sensitive to torque and alignment. A flanged fitting is often preferred at high-pressure ports, large hose assemblies, and heavy-duty hydraulic equipment.
Connection type | Best use | Main advantage | Main limitation |
Threaded fitting | Small, low-pressure lines | Low cost | Vibration-sensitive |
Welded joint | Permanent routing | Fewer gasketed leak points | Hard to open |
Hydraulic adapter | Moderate-pressure transitions | Flexible layout | Limited at large sizes |
Flange fitting | High-pressure or serviceable joints | Strong, removable interface | Needs space and procedure |
Selection should begin with operating conditions, not the nearest-looking part in stock. Working pressure, pressure surges, design temperature, pipe or hose size, and duty cycle all affect the correct choice. A flanged fitting used in hydraulic service may need Code 61 or Code 62 compatibility, while industrial piping may require an ASME B16.5 pressure class and matching pressure-temperature rating. Similar flange shapes do not make systems interchangeable.
Temperature deserves attention because pressure rating is not fixed across all conditions. Material strength, gasket behavior, and bolt performance can change as temperature rises or falls. If the system carries steam, hot oil, chemicals, or cold fluids, the rating must be checked against the applicable standard and manufacturer data. Oversimplified ratings create risk outside room-temperature assumptions.
A flanged fitting should be selected by material compatibility as much as mechanical strength. Carbon steel is common for general industrial service, stainless steel is used where corrosion resistance or cleanliness matters, and alloy steels may be selected for elevated temperature or severe duty. Aluminum and ductile iron appear in specific applications, but each material has limits. The fluid, environment, cleaning chemicals, and corrosion mechanism should guide the decision.
Galvanic corrosion is a hidden problem when dissimilar metals are connected in the presence of a conductive fluid. Chlorides can challenge stainless steel, abrasive media can wear sealing surfaces, and outdoor exposure can attack bolts and flange faces. Coatings, isolation gaskets, compatible bolt materials, and corrosion allowances may be necessary. A cheap material can become expensive if it shortens seal life.
Mating geometry must be verified before purchase. The bolt circle, hole size, flange face, gasket groove, and sealing style all have to match the component being connected. Raised face, flat face, and RTJ designs are not casual alternatives; each works with a compatible gasket and mating face. A visually similar flanged fitting may fail to seal if the bolt pattern or face style is wrong.
For hydraulic connections, Code 61 and Code 62 confusion is a frequent ordering mistake. The pressure series, flange head dimensions, clamp style, and O-ring arrangement should be checked against the datasheet. For industrial piping, the flange class, material grade, and face type should align with the piping specification. Measurements and supplier drawings are safer than verbal descriptions.
A reliable connection includes more than the fitting body. The full package includes the mating flange, gasket or O-ring, bolts, washers, lubricant, tightening method, inspection steps, and replacement policy. Industrial buyers may also need a material certificate, heat number, traceability record, and supplier datasheet. Treating the joint as a package reduces the risk of mixing good parts into a poor assembly.
Before ordering, use a short checklist:
● Pipe or hose size and end connection
● Working pressure, surge risk, and temperature range
● Fluid type, material grade, and corrosion risk
● Applicable flange standard or hydraulic code
● Face type, bolt pattern, and seal material
● Bolt grade, lubrication, and torque method
● Installation clearance and future maintenance access
● Documentation, traceability, and inspection requirements
A flanged fitting that meets these points is more likely to perform reliably over its service life. Skipping any one of them can lead to leaks, incompatible parts, or avoidable downtime.
A flanged fitting is most useful when a piping or hydraulic system needs a connection that can handle pressure, vibration, and maintenance access without turning every repair into cutting or rewelding. The right choice depends on size, pressure rating, material compatibility, sealing method, bolt pattern, and available installation space.
Shanxi Jin Steel Casting Co.,Ltd. provides flange fittings designed for practical industrial use, helping buyers and engineers build connections that are easier to assemble, inspect, and service while reducing avoidable leakage risks and downtime.
A: A flanged fitting connects pipes, hoses, valves, pumps, or equipment ports with a bolted, gasketed joint that can be opened for maintenance or replacement.
A: Use flange fittings for larger lines, higher pressure, vibration-prone equipment, or systems needing regular access. Threaded fittings are usually better for smaller, low-pressure applications.
A: They allow a pipe section or connected component to be unbolted instead of cut, making inspection, cleaning, replacement, and system modification faster and less disruptive.
A: They can provide reliable sealing, but only when the gasket or O-ring, flange face, bolt pattern, and tightening sequence are correctly matched and installed.
A: Code 61 is generally used for standard-pressure hydraulic flange connections, while Code 62 is used for higher-pressure service. Always verify dimensions and pressure ratings by standard.
A: Confirm pipe or hose size, pressure rating, material, flange standard, bolt pattern, seal type, operating temperature, fluid compatibility, and available installation clearance.
