Why do many cities avoid PVC pipes? Pipelines must last decades, and material choice affects pressure, durability, and maintenance. Engineers often compare ductile iron pipe with PVC when designing water systems.

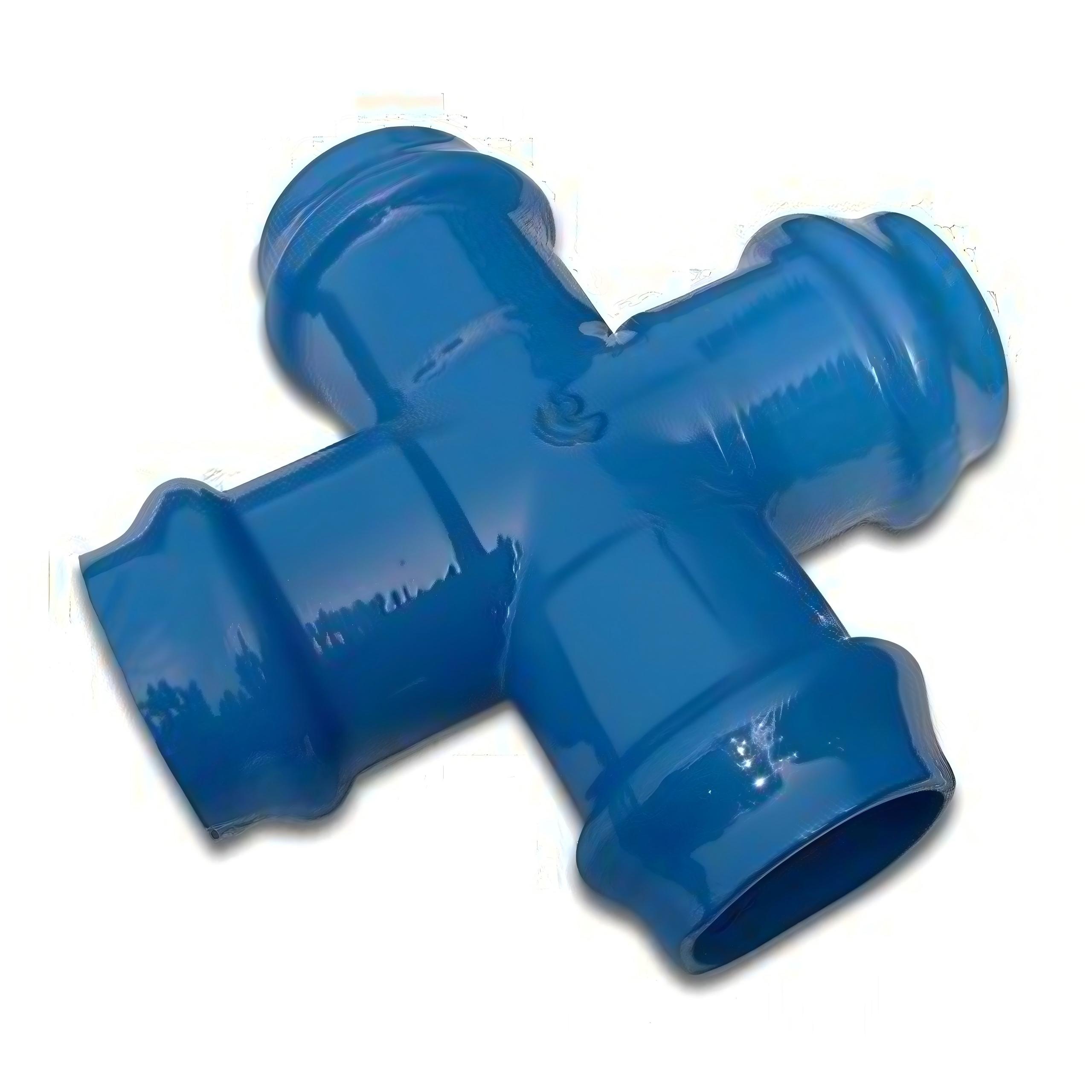

Connections also matter in every pipeline network. A Ductile Iron Fitting helps keep joints stable at bends, valves, and branches. In this article, you will learn the key differences between these materials and how they affect long-term pipeline performance.
Pipeline materials differ fundamentally in their composition, and this difference strongly influences how they perform in real-world infrastructure environments. Ductile iron is a metallic alloy produced from iron and steel, engineered to provide both high strength and controlled flexibility. This metallurgical structure allows the material to bend slightly under load rather than fracture, which is especially valuable in underground infrastructure where soil movement and external pressure are common. By contrast, PVC (polyvinyl chloride) is a thermoplastic polymer that is lightweight and corrosion-resistant but structurally less rigid than metallic pipe systems. Its performance is therefore more dependent on surrounding soil support and installation conditions.
In practical pipeline construction, this difference affects how loads are distributed across the system. Ductile iron pipelines typically rely on the inherent strength of the pipe wall and fittings to withstand mechanical stress. PVC systems, however, depend more heavily on trench compaction and bedding to maintain stability, meaning installation quality has a greater impact on long-term performance.
Key distinctions between the materials include:
● Structural rigidity: Ductile iron maintains high structural strength even under heavy loads such as traffic or deep burial conditions. PVC pipes are more flexible but may deform if soil compaction is insufficient.
● Stress tolerance: The metallurgical structure of ductile iron allows gradual deformation under stress instead of brittle failure.
● System integration: Compatible Ductile Iron Fitting components create a continuous metallic system capable of handling mechanical loads at joints and connection points.
The following table summarizes core structural differences between the two materials:
Property | Ductile Iron Pipe Systems | PVC Pipe Systems |
Material Type | Metallic alloy (iron and steel) | Thermoplastic polymer |
Structural Support | Primarily pipe strength | Heavily dependent on soil support |
Flexibility | Controlled ductility under stress | Higher flexibility but less structural rigidity |
Failure Behavior | Gradual deformation | Potential brittle fracture |
Understanding these material characteristics helps engineers determine which pipe system is better suited for demanding infrastructure environments.
One of the most significant engineering distinctions between ductile iron and PVC pipe systems lies in their mechanical strength. Ductile iron pipelines exhibit considerably higher tensile strength, impact resistance, and burst capacity, which are critical parameters for pipelines subjected to fluctuating internal pressure or external loads. According to infrastructure research comparisons, ductile iron pipes can have several times the tensile and impact strength of PVC pipes, making them more resistant to cracking or catastrophic failure.
Higher mechanical strength provides practical advantages during both installation and operation. Construction environments often expose pipes to accidental impacts, shifting soil, or equipment loads. In these situations, ductile iron tends to absorb and distribute stress across the pipeline system rather than failing at a single point. PVC pipes, being less resistant to impact, may be more vulnerable to damage if scratched or struck during installation.
Another critical factor is burst capacity, which refers to the maximum internal pressure a pipe can withstand before rupture. Stronger pipe walls and reinforced joints allow ductile iron pipelines to tolerate sudden pressure increases or operational spikes that occur during valve operations or pump start-ups.
Important performance factors include:
● Tensile strength: Ductile iron systems typically maintain higher tensile capacity, helping pipelines resist internal pressure and external loads.
● Impact resistance: The material’s ability to absorb sudden impacts reduces the likelihood of cracks during installation or operation.
● Stress distribution: Structural elements such as ductile iron fittings ensure that bends, tees, and branch connections maintain the same strength as the pipe body.
These characteristics are especially valuable in municipal water networks, where pipelines may experience both hydraulic and mechanical stresses over decades of operation.
Pipelines operate in complex environments where temperature changes, soil movement, and external forces continuously affect the system. The ability of a pipe material to maintain consistent mechanical performance under these conditions is a key factor in long-term infrastructure reliability.
PVC materials can experience changes in physical properties when exposed to extreme environmental conditions. For example, PVC may become more brittle at low temperatures and can lose impact resistance after extended exposure to sunlight or ultraviolet radiation. In buried installations, temperature fluctuations and soil movement may further affect performance if the material becomes less flexible over time.
Ductile iron, by comparison, retains its structural characteristics across a wider range of temperatures and environmental conditions. Its metallic composition allows it to maintain strength and flexibility in both cold and warm climates, which is particularly important for underground pipelines that experience seasonal temperature changes.
Environmental performance considerations include:
● Temperature stability: Ductile iron maintains mechanical integrity in cold environments where PVC may become brittle.
● UV resistance: Metallic pipes are not affected by ultraviolet radiation in the same way plastic materials can be.
● External loading: Soil movement, traffic loads, and deep burial conditions require materials capable of sustaining high compressive forces.
In large infrastructure projects—such as bridge crossings, deep trenches, or high-pressure transmission lines—these environmental resilience characteristics often influence the selection of pipe materials.
Municipal water distribution systems operate under carefully controlled pressure ranges to ensure reliable water delivery across long distances. These networks often include pumps, valves, hydrants, and branch connections that create variable hydraulic conditions throughout the system. As a result, pipe materials must be capable of handling both steady operating pressures and occasional pressure fluctuations.
Ductile iron pipe systems are commonly selected for high-pressure water transmission because their structural properties support higher pressure ratings. Strong pipe walls combined with robust Ductile Iron Fitting components allow the pipeline network to maintain consistent integrity at bends, tees, and reducers—locations where hydraulic forces can be concentrated.
In contrast, plastic piping systems may require stricter pressure limits to avoid long-term stress damage. Since PVC materials can weaken under sustained stress over time, engineers often consider both pressure levels and service life when designing these systems.
Key design considerations include:
● Maintaining consistent pressure ratings throughout the entire pipeline system
● Ensuring fittings and joints match the pressure capacity of the pipe
● Preventing localized stress at connection points or direction changes
The relationship between pipe material and pressure performance can be summarized below:
Pressure Factor | Ductile Iron Systems | PVC Systems |
Typical Operating Pressure Capacity | Higher allowable pressure ranges | Moderate pressure ratings |
Fitting Strength | High-strength metallic fittings maintain uniform pressure resistance | Plastic fittings may require additional reinforcement |
Long-Term Stress Performance | Maintains strength over long service periods | Performance may decrease under prolonged stress |
These characteristics help explain why ductile iron pipelines are widely used in municipal transmission mains and large water distribution networks.
Pressure surges—also known as water hammer—occur when there is a rapid change in fluid velocity within a pipeline. These events may result from sudden valve closures, pump start-ups, or firefighting activities involving hydrant operation. Even short-lived surge pressures can place extreme stress on pipelines and fittings.
Ductile iron pipe systems are typically better equipped to manage these hydraulic events due to their high strength and controlled ductility. The material can absorb and redistribute sudden forces throughout the pipeline rather than allowing stress to concentrate at individual joints. This characteristic reduces the risk of catastrophic pipeline failure.
Several factors influence surge resistance:
● Material strength: Higher tensile and burst strength provide a safety margin during pressure spikes.
● Joint integrity: Strong connections between pipes and ductile iron fittings prevent leaks or separation under surge conditions.
● System continuity: A uniform metallic pipeline system helps distribute loads more evenly.
For municipal infrastructure—particularly fire protection systems where hydrants may be opened rapidly—this surge resistance can be an important reliability factor.
Water distribution infrastructure is designed to serve communities for many decades, and reliability over time is one of the most important considerations in pipeline material selection. Failures in municipal pipelines can lead to service interruptions, costly repairs, and potential safety risks.
Ductile iron pipelines are often associated with long service lifespans because their mechanical properties remain stable even after extended periods of internal pressure and external loading. Unlike materials that gradually weaken under stress, ductile iron maintains its structural integrity throughout much of its operational life.
Several factors contribute to long-term reliability:
1. Stable mechanical properties – Ductile iron retains strength over decades of service without significant degradation.
2. Robust connection systems – High-strength fittings maintain secure joints throughout the pipeline network.
3. Reduced catastrophic failure risk – Strong materials are less likely to experience sudden burst failures compared with more brittle materials.
In large municipal networks where pipelines extend for hundreds of kilometers, the ability to maintain reliable operation over long periods is a critical advantage. Durable pipe materials combined with dependable ductile iron fittings help ensure that water distribution systems continue functioning safely and efficiently for generations.
Long-term durability is one of the defining characteristics of ductile iron pipeline systems. Municipal water infrastructure is typically designed for multi-decade service periods, and ductile iron pipelines are commonly expected to remain functional for 100 years or more under normal operating conditions. This longevity is largely attributed to the material’s metallurgical structure, which combines strength with ductility, allowing the pipe to tolerate internal pressure and external loads without significant degradation over time.
Unlike materials that gradually weaken under continuous stress, ductile iron maintains stable mechanical properties throughout its lifecycle. Internal water pressure, temperature changes, and soil loading place constant stress on pipeline walls and joints. However, the inherent strength of ductile iron allows these systems to resist fatigue and maintain performance for decades. The integration of compatible Ductile Iron Fitting components ensures that elbows, tees, reducers, and other connection points maintain the same structural capacity as the pipe itself.
Several factors contribute to the long operational life of ductile iron pipeline systems:
● Material durability: The metallic structure of ductile iron allows it to resist fatigue caused by repetitive pressure cycles. Over time, this stability helps prevent microfractures that can develop in weaker materials.
● Consistent performance under load: Even under continuous internal pressure, ductile iron retains its tensile strength and structural rigidity. This property allows water distribution systems to operate reliably for generations.
● Uniform system strength: The use of standardized ductile iron fittings ensures that structural integrity is maintained at every connection point, preventing localized weaknesses in the network.
The expected service life of common pipeline materials illustrates this difference clearly:
Pipeline Material | Typical Service Life | Long-Term Structural Behavior |
Ductile Iron | Often 100+ years | Maintains strength under sustained loads |
PVC | Approximately 50–70 years | Performance can decline under long-term stress |
Steel (unprotected) | Variable | May require corrosion protection |
These long-term performance characteristics explain why ductile iron pipelines are frequently used in major municipal infrastructure projects where durability and reliability are essential.
Most water transmission and distribution pipelines are installed underground, where they must withstand a wide range of environmental forces. Soil settlement, traffic loads from above, and seasonal ground movement all place continuous stress on buried infrastructure. For this reason, pipeline stability is a critical design consideration.
Ductile iron pipe systems are well suited to underground installations because they combine structural strength with controlled flexibility. The material can absorb external pressure without collapsing or deforming excessively. In addition, the durability of ductile iron fittings in underground pipelines plays a vital role in maintaining system alignment and preventing joint displacement over time.
When evaluating underground pipeline stability, engineers typically consider several structural factors:
● Load distribution: Heavy traffic loads or deep burial conditions can place significant pressure on pipes. Ductile iron distributes these loads across the pipe wall rather than concentrating stress at a single point.
● Joint stability: Strong fittings maintain alignment between pipeline sections, reducing the risk of leaks or structural separation.
● Resistance to soil settlement: Over time, ground conditions may shift or settle. Ductile iron pipelines can adapt to these changes without losing structural integrity.
A simplified overview of underground stability characteristics is shown below:
Stability Factor | Ductile Iron Pipeline Systems | PVC Pipeline Systems |
Resistance to soil settlement | High structural rigidity | More dependent on soil compaction |
Joint stability | Strong metallic fittings maintain alignment | Plastic joints may require additional support |
Load tolerance | Handles heavy external loads effectively | More sensitive to uneven loading |
These characteristics help ensure that ductile iron pipeline systems maintain their shape, alignment, and hydraulic performance even under demanding underground conditions.
Ground movement is another critical challenge faced by buried pipeline infrastructure. Soil expansion, seismic activity, frost heave, and gradual ground shifting can all introduce stress into the pipeline system. Materials that cannot tolerate these stresses may crack, leak, or experience joint separation.
Ductile iron pipe systems offer a significant advantage in this area due to their ductility, which allows controlled deflection without sudden fracture. Instead of breaking under stress, ductile iron can flex slightly, absorbing movement and redistributing forces along the pipeline. This ability is particularly valuable in regions prone to earthquakes or unstable soil conditions.
Ground movement resistance depends on several structural characteristics:
1. Controlled flexibility – Ductile iron can bend slightly under stress without losing structural strength.
2. Strong joint systems – Durable fittings help maintain secure connections even when minor deflection occurs.
3. Stress redistribution – Metallic pipeline systems distribute ground movement forces across multiple sections rather than concentrating them at a single joint.
These features make ductile iron pipelines particularly suitable for infrastructure located in challenging environments such as seismic zones, bridge crossings, or areas with variable soil composition.
Pipeline installation procedures vary depending on the material used, and these differences can significantly influence construction planning and project costs. PVC pipes, due to their lower structural rigidity, often require more controlled trench conditions and higher soil compaction levels to maintain proper support. If soil compaction is insufficient, the pipe may deform under load.
Ductile iron pipelines, by contrast, rely more on their inherent structural strength rather than soil support alone. This allows them to be installed in a wider range of trench conditions while still maintaining stability. Because the pipe itself can bear significant loads, installation practices may be less dependent on achieving extremely high soil density around the pipe.
Key installation considerations include:
● Trench preparation: PVC pipelines typically require carefully prepared bedding to ensure even load distribution. Ductile iron pipes can tolerate a wider range of bedding conditions due to their strength.
● Soil compaction requirements: Plastic pipelines often require greater compaction percentages to prevent deformation. Ductile iron systems depend less on compaction for structural support.
● Installation flexibility: Strong metallic pipes and fittings can better withstand accidental impacts or minor installation errors during construction.
These differences often influence project timelines, equipment requirements, and overall installation strategies.
Water distribution systems rarely remain static over time. Cities expand, new buildings are constructed, and additional service connections must be added to existing pipelines. The ability to modify or expand a pipeline network efficiently is therefore an important operational consideration.
One advantage of ductile iron systems is their compatibility with direct tapping techniques, which allow new service lines to be connected without replacing large sections of pipe. Direct tapping involves drilling into the pipe wall and installing a connection fitting, enabling utilities to expand the network with minimal disruption.
The flexibility provided by ductile iron systems is further enhanced by the wide variety of available Ductile Iron Fitting components. These fittings allow engineers to design complex pipeline networks that include branches, directional changes, and pressure control elements.
Typical network expansion advantages include:
● Simplified service connections: Direct tapping allows utilities to add new connections quickly without major excavation.
● Flexible system design: Standardized fittings such as tees, elbows, reducers, and couplings enable complex network layouts.
● Reduced service interruption: New branches can often be installed without shutting down large sections of the existing pipeline.
These capabilities make ductile iron pipeline systems particularly well suited for growing urban infrastructure, where pipelines must evolve and expand to meet increasing demand.
Ductile iron pipe offers strong pressure capacity and long service life. It performs better than PVC in demanding infrastructure environments. Reliable Ductile Iron Fitting components help keep pipelines stable and secure.
Shanxi Jin Steel Casting Co.,Ltd. supplies durable fittings designed for municipal systems. Their products support strong connections, stable performance, and long-term pipeline value.
A: A Ductile Iron Fitting maintains structural continuity at bends and branches, helping pipelines handle pressure and mechanical loads.
A: A Ductile Iron Fitting typically offers higher strength and pressure tolerance than PVC fittings in municipal water systems.
A: Ductile Iron Fitting parts are widely used in water distribution networks, hydrant systems, and high-pressure transmission pipelines.
A: Engineers prefer ductile iron for higher durability, better surge resistance, and longer service life in demanding infrastructure projects.
