K12 Class Socket Spigot Branch Tee

Product Overview

Sourced directly from a premier manufacturer, the K12 Class Socket Spigot Branch Tee is engineered for high-capacity fluid distribution networks. As a reliable supplier for large-scale infrastructure, we provide this robust ductile iron fitting to ensure seamless and secure pipeline branching operations.

• Engineered for volume procurement in demanding municipal and industrial projects.
• Class K12 wall thickness guarantees exceptional mechanical pressure resistance.
• Versatile DN80 to DN2000 size range accommodates diverse pipeline configurations.
• Advanced multi-layer anti-corrosion linings tailored for long-term underground stability.

Product Description

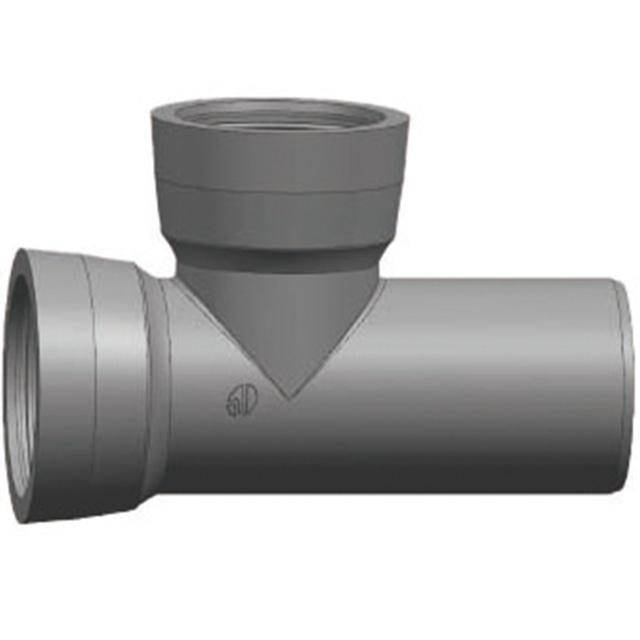

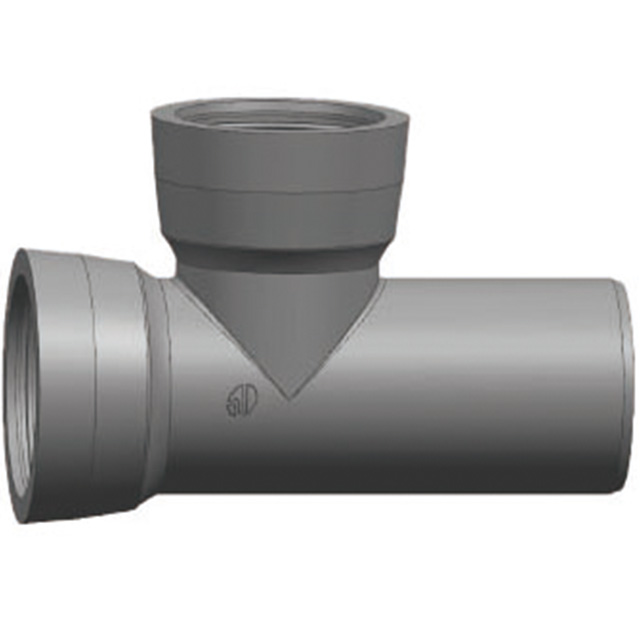

The Socket Spigot Tee with Socket Branch stands as a cornerstone component for demanding fluid transit architectures. Forged from premium ductile iron, this heavy-duty piping fitting feels incredibly solid and substantial, reflecting the meticulous craftsmanship required for high-stakes subterranean and exposed installations. The dark, smooth exterior finish of the zinc-rich bitumen or sleek polyurethane coating visually communicates its readiness to combat harsh environmental elements, while the precisely contoured socket and spigot ends promise a flawless, secure fit. Unlike conventional junction pieces, this specialized tee integrates the unyielding stability of a spigot connection with the adaptive convenience of a dedicated socket branch, creating a central hub that splits main lines without sacrificing flow dynamics or structural integrity.

When handling this fitting, the sheer weight and thick-walled construction immediately convey its Class K12 durability. It is explicitly designed to act as the vital intersection within expansive water distribution grids, sewage treatment complexes, and industrial fluid pathways. By mitigating internal turbulence and distributing mechanical stress evenly across the joint, it proactively solves the common issue of branch-line pressure drops and joint fatigue. The meticulously applied internal linings—whether the smooth, chalky texture of Portland cement or the glass-like finish of Fusion Bonded Epoxy—ensure that the transported media remains uncontaminated and flows with minimal friction. This fitting does not just connect pipes; it fortifies the entire network, drastically reducing the necessity for future excavations and maintenance interventions.

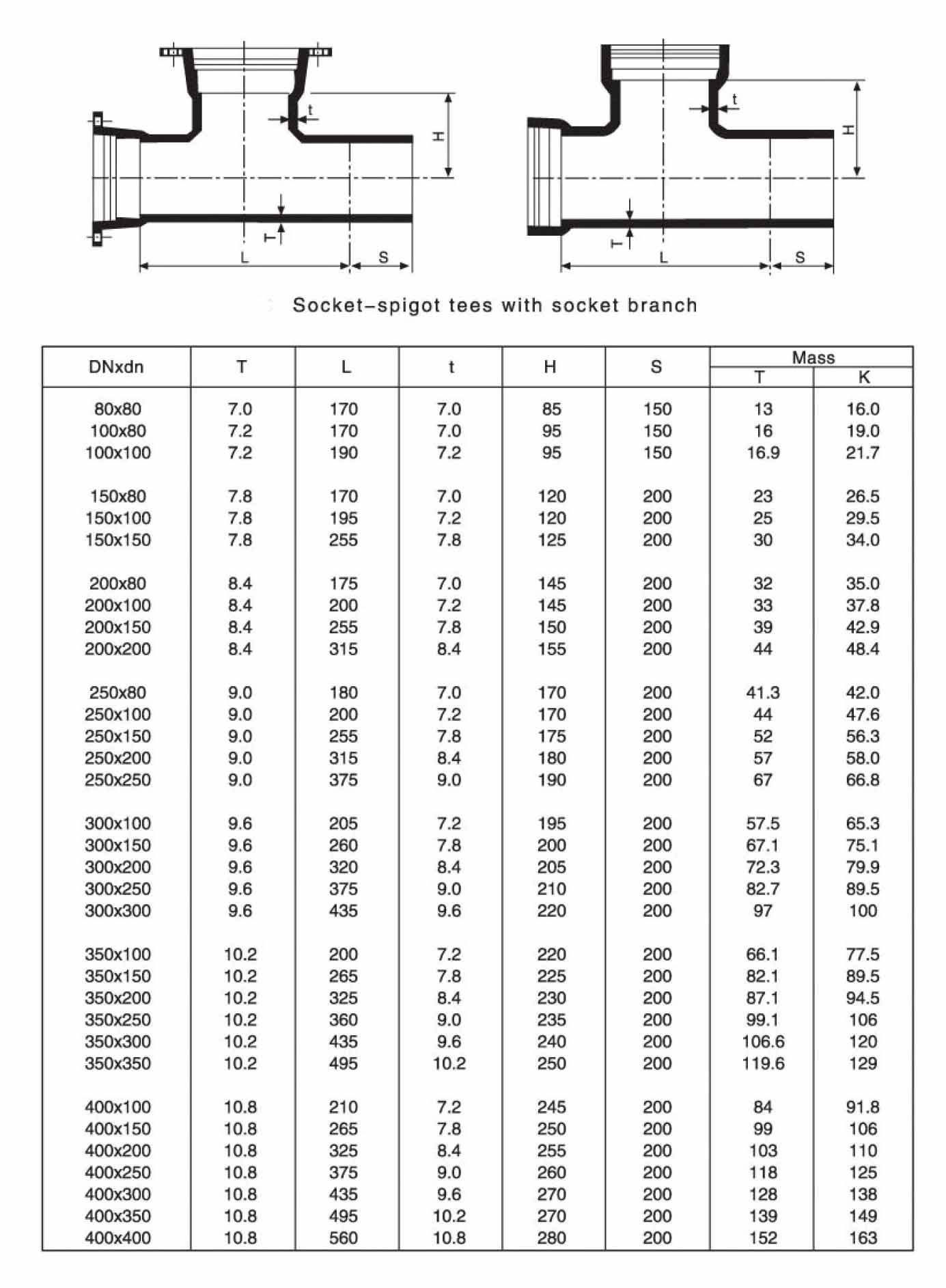

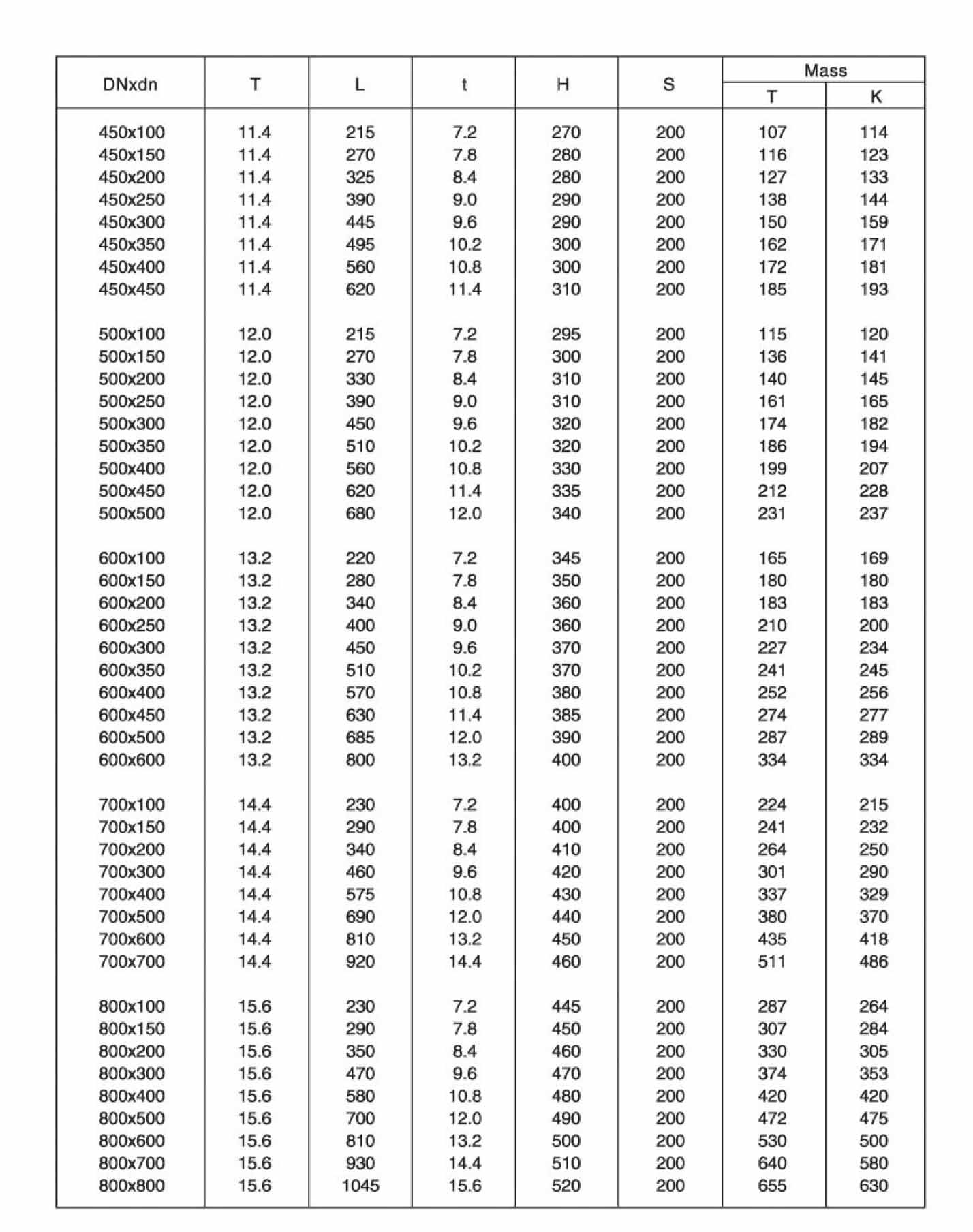

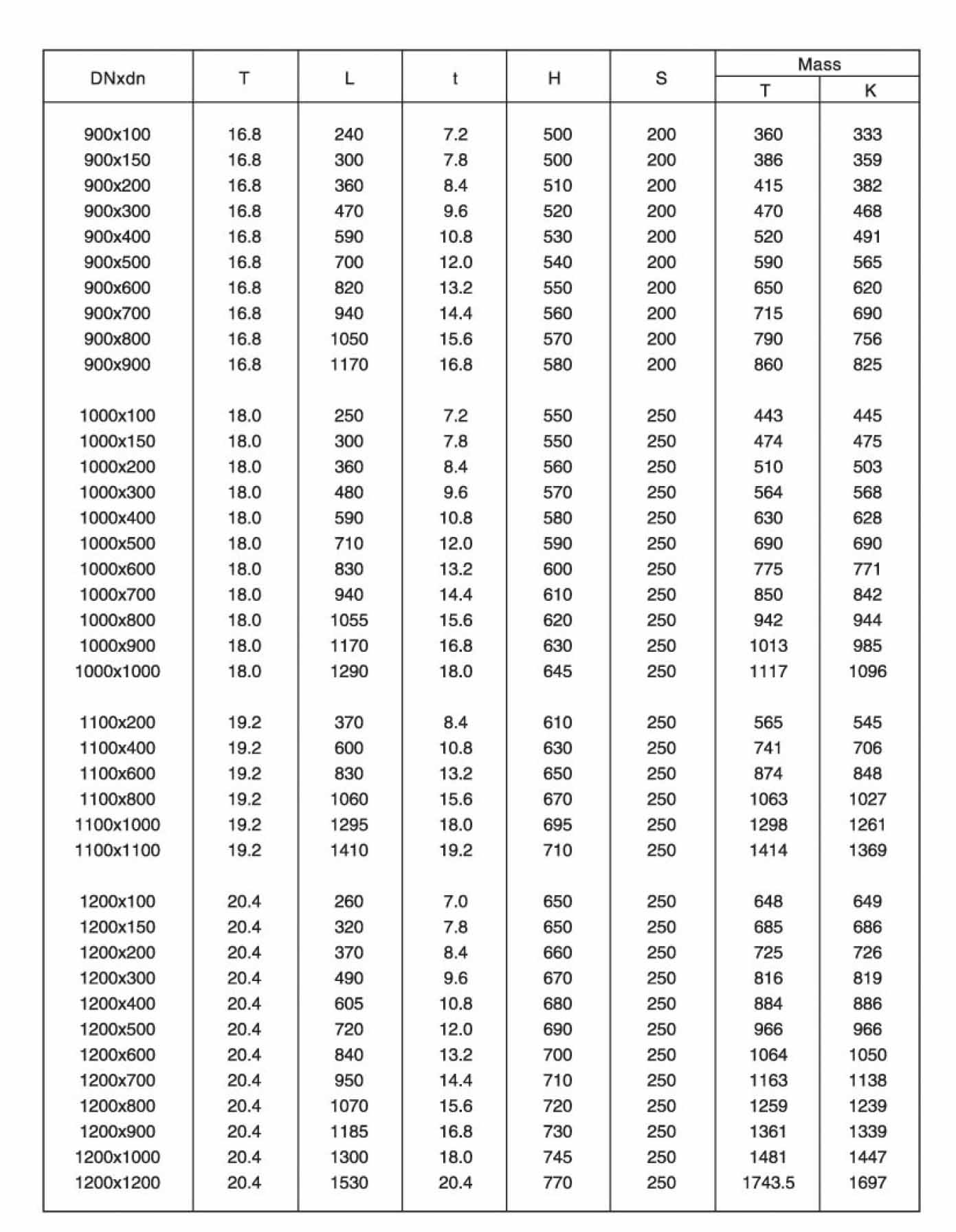

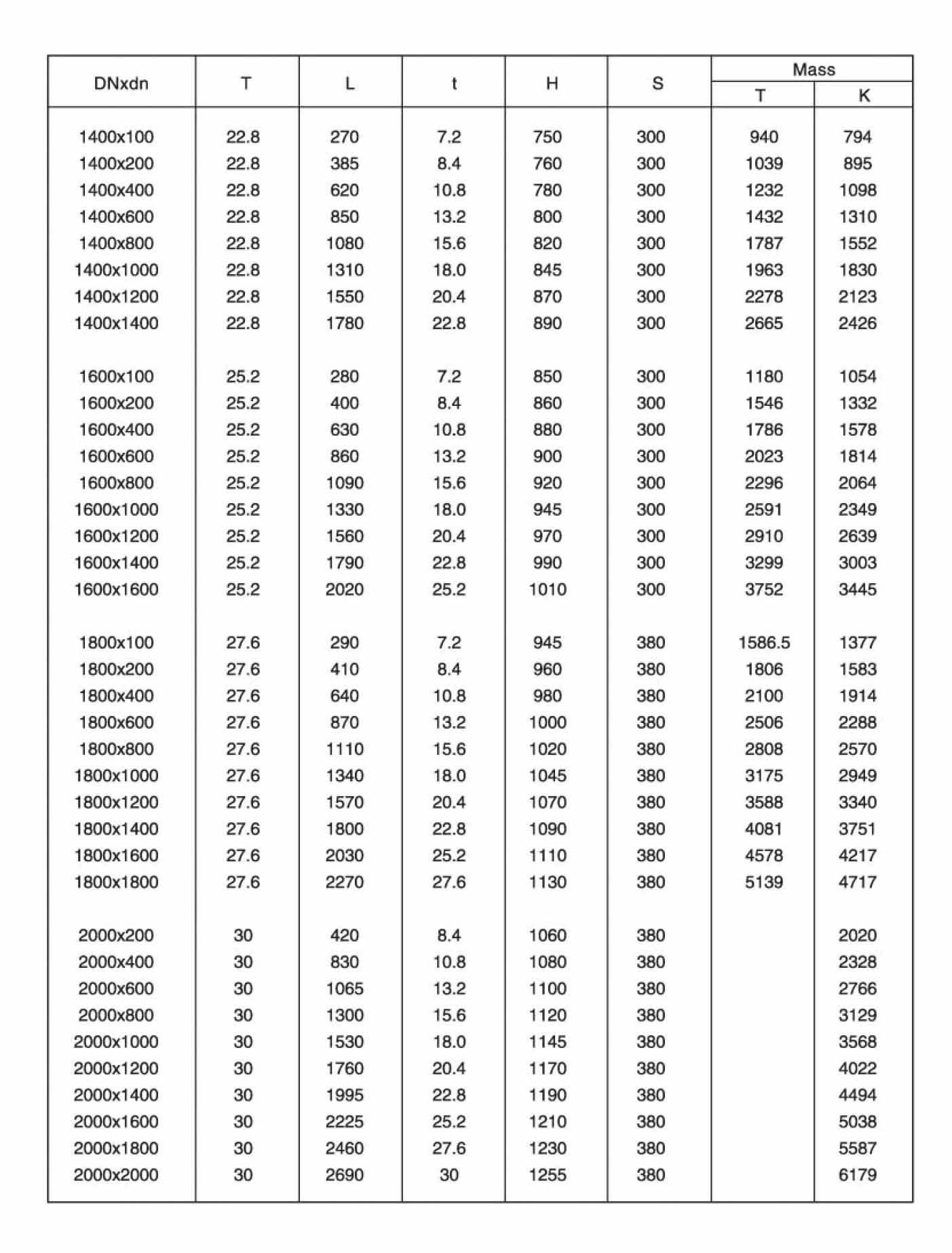

Product Specifications

The following technical parameters detail the precise engineering specifications of the K12 Class Socket Spigot Branch Tee. These metrics ensure strict compliance with international engineering standards and verify the fitting's operational limits for complex fluid distribution networks.

Key Features & Highlights

Engineered to resolve the most persistent challenges in pipeline junction management, this specialized tee fitting delivers unparalleled operational security. The strategic design minimizes installation friction while maximizing long-term reliability for demanding procurement requirements.

• Dual-Security Junction Design: The integration of a spigot main line with a socket branch creates a uniquely stable connection point, preventing joint separation under severe water hammer events.
• Optimized Flow Dynamics: The internal geometry is precision-cast to reduce turbulence at the branching point, ensuring consistent pressure delivery to secondary lines.
• Exceptional Load Bearing: The robust Class K12 wall thickness easily absorbs heavy soil loads and traffic vibrations when installed in direct-burial applications.
• Simplified Alignment: The smooth, precisely machined spigot end glides into adjoining sockets, significantly reducing the manual labor and heavy machinery time required during trench installation.
• Zero-Leakage Assurance: When paired with standard elastomeric gaskets, the dimensional accuracy of the socket profiles guarantees a watertight seal even under 2.5 MPa of working pressure.

Material & Physical Strength

Constructed from premium-grade ductile iron, this fitting redefines structural resilience in fluid transport. The material's inherent ductility allows it to absorb extreme mechanical stress without fracturing, making it an indispensable asset for high-stakes infrastructure.

• Class K12 Wall Thickness: Provides an exceptional safety margin against internal pressure surges and external crushing forces, drastically lowering the risk of catastrophic pipeline failure.
• High Tensile Ductile Iron: Utilizing EN GJS500-7 / 400-15 material, the fitting exhibits a yield strength that rivals carbon steel while maintaining the superior corrosion resistance of cast iron.
• Vibration Dampening: The dense molecular structure of the iron effectively absorbs vibrations from nearby heavy machinery or surface traffic, protecting the integrity of the joint seals over decades of continuous use.

Size Coverage & Engineering Compatibility

Managing procurement for extensive pipeline networks requires standardized, versatile components. This tee fitting eliminates compatibility bottlenecks by offering an exceptionally broad spectrum of dimensions, seamlessly integrating into virtually any project blueprint.

• Expansive DN80 to DN2000 Range: Whether branching a minor commercial water line or directing massive municipal mains, the comprehensive size availability ensures a perfect match for the required flow volume.
• Universal Standard Alignment: The meticulously calibrated outer diameters and socket depths ensure flawless integration with existing standardized piping, eliminating the need for custom transition adaptors.
• Streamlined Inventory Management: By standardizing on a single, highly adaptable fitting type across various diameters, procurement teams can significantly reduce inventory complexity and storage overhead.

Multi-Layer Corrosion Protection & Longevity

Subterranean environments are notoriously hostile, subjecting pipelines to constant moisture, acidic soils, and aggressive internal fluids. This fitting employs a highly customizable, multi-barrier defense system to neutralize these threats and guarantee an extended operational lifespan.

• Food-Grade Internal Linings: Options like Portland cement provide a safe, smooth barrier for potable water, actively preventing rust accumulation and maintaining pristine water quality.
• Aggressive Media Defense: For sewage or industrial applications, the Sulphate-resistant cement or Fusion Bonded Epoxy (FBE) linings create an impenetrable shield against harsh chemical degradation and abrasive particulate wear.
• Impervious External Coatings: The application of zinc-rich bitumen or advanced Polyurethane (PU) seals the ductile iron away from corrosive soil elements, stray electrical currents, and groundwater penetration.
• Lifecycle Cost Reduction: By preventing premature degradation, these protective layers essentially eliminate the need for costly mid-lifecycle excavations and replacements, maximizing the return on infrastructure investment.

Structural Design & Joint Reliability

The architectural geometry of a pipeline junction dictates its ability to survive fluctuating pressures. The innovative socket-spigot configuration of this tee is specifically engineered to distribute stress and maintain absolute seal integrity under all operational states.

• Stress-Dispersing Hub: The transition zones between the main body and the branching socket are thickened and smoothly radiused, eliminating stress concentrations that typically lead to micro-cracking.
• Deep-Insertion Sockets: The extended depth of the branch socket provides superior lateral support to the connecting pipe, preventing angular deflection caused by ground settlement.
• High-Velocity Stability: The robust spigot connection anchors the fitting firmly within the main line, preventing axial movement and joint separation even during rapid flow acceleration or water hammer shocks.

International Standards & Quality Assurance

For large-scale infrastructure developers, component failure is simply not an option. Every unit undergoes a rigorous, multi-stage inspection protocol to ensure it meets the exacting demands of global engineering authorities and rigorous tender specifications.

• Strict Regulatory Compliance: Manufactured in absolute adherence to ISO2531, EN545, ISO7186, and BS EN598, ensuring universal acceptance for international infrastructure tenders.
• Hydrostatic Pressure Testing: Each fitting is subjected to intense hydrostatic pressure trials prior to dispatch, guaranteeing zero porosity and absolute leak-proof performance under maximum rated loads.
• Precision Dimensional Checks: Laser-guided micrometers verify that every spigot bevel and socket groove falls within microscopic tolerances, ensuring a perfect, hassle-free fit on the job site.
• Material Traceability: Comprehensive metallurgical documentation accompanies the production batch, providing complete transparency regarding the ductile iron's chemical composition and physical properties.

Versatile Application Scenarios

The combination of extreme pressure tolerance, versatile sizing, and customized corrosion resistance makes this tee fitting a universal solution across a multitude of demanding sectors. It serves as the critical intersection point for the world's most essential fluid networks.

• Municipal Water Distribution: Acts as the reliable branching point for directing high-pressure potable water from primary reservoirs into sprawling residential and commercial districts without pressure loss.
• Wastewater Management: The highly resistant internal linings handle the corrosive nature of raw sewage, safely redirecting effluent between collection grids and treatment basins.
• Industrial Fluid Routing: Provides the structural integrity necessary to safely divert cooling water, process chemicals, or industrial slurries within large-scale manufacturing and chemical processing plants.
• Agricultural Irrigation Hubs: Efficiently splits massive volumes of water from main supply arteries into localized irrigation channels, ensuring consistent hydration across extensive agricultural tracts.

Why Partner With Us

Securing a reliable supply chain for heavy-duty pipeline components requires a partner who understands the complexities of large-scale infrastructure execution. We provide more than just premium fittings; we deliver comprehensive procurement solutions tailored for volume buyers and major project contractors.

• Scalable Production Capacity: Our advanced manufacturing facilities are equipped to handle high-volume orders with rapid turnaround times, ensuring your project timelines are never compromised by material shortages.
• Direct-from-Source Economics: By eliminating intermediaries, we offer highly competitive pricing structures that significantly optimize your project procurement budget without sacrificing engineering quality.
• Customized Engineering Support: Our technical team collaborates closely with your engineers to select the optimal lining, coating, and pressure class configurations specific to your project's unique environmental challenges.
• Global Logistics Expertise: We possess extensive experience in coordinating complex international shipments, ensuring that heavy-duty ductile iron components arrive at your site safely, securely, and exactly on schedule.

Frequently Asked Questions

What makes the Class K12 wall thickness superior for this tee fitting?

The Class K12 designation indicates a significantly thicker wall compared to standard K9 fittings. This added mass provides superior resistance to internal pressure surges, commonly known as water hammer, and external mechanical loads such as heavy soil cover and traffic vibrations. It is the preferred choice for critical infrastructure where long-term durability and zero-failure rates are strictly mandated.

Can the internal lining be customized for highly corrosive industrial wastewater?

Yes, the internal protection can be highly tailored. While Portland cement is standard for potable water, we highly recommend our Fusion Bonded Epoxy (FBE) or Sulphate-resistant cement linings for industrial wastewater. These specialized linings create an impermeable barrier against aggressive chemicals, acids, and abrasive particulates, preventing premature degradation of the iron core.

How does the socket-spigot design improve installation efficiency?

The socket-spigot configuration drastically reduces installation time compared to flanged alternatives. The spigot end smoothly inserts into the adjoining pipe's socket, requiring only a standard elastomeric gasket to achieve a high-pressure seal. This push-on joint mechanism eliminates the need for time-consuming bolt tightening and allows for slight angular deflection to accommodate uneven trench beds.

Are these fittings suitable for direct burial in highly acidic soils?

Absolutely. For aggressive soil conditions, the fitting is coated with a heavy-duty zinc-rich bitumen or an advanced Polyurethane (PU) layer. These external coatings act as a sacrificial and physical barrier, neutralizing corrosive elements in the soil and preventing groundwater from interacting with the ductile iron, ensuring decades of reliable underground service without the need for additional wrapping.

What international standards do these branch tees comply with?

Our fittings are meticulously manufactured and tested in strict accordance with major global standards, including ISO2531, EN545, ISO7186, and BS EN598. This comprehensive compliance guarantees that the dimensions, material strength, and pressure ratings meet the rigorous requirements of international water authorities and large-scale engineering tenders worldwide.
