An Overview of Ductile Iron Socket Fittings

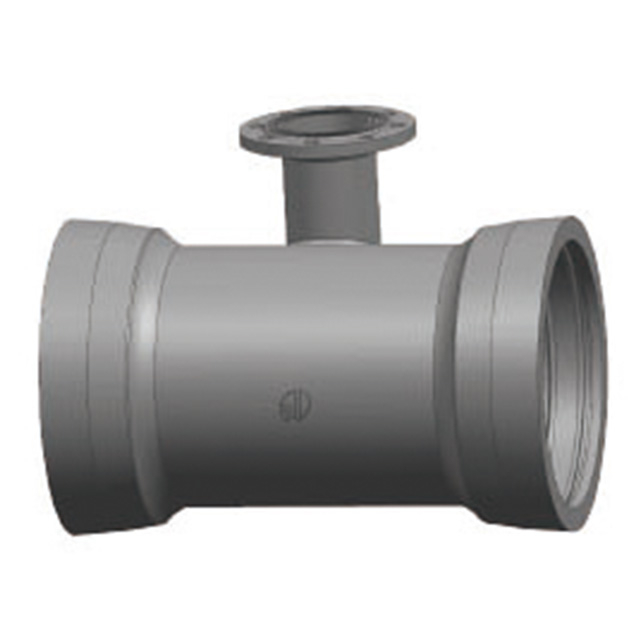

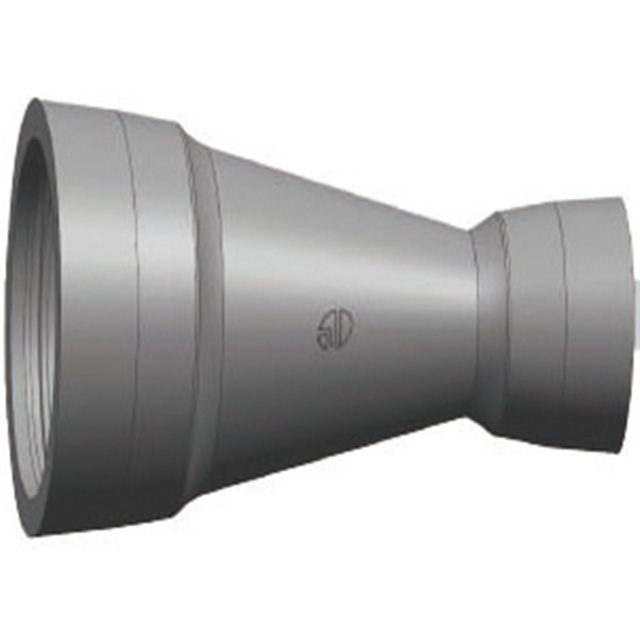

Ductile Iron Socket Fittings, also called Push-On or T-Type Joint Fittings, are designed for direct connection with Ductile Iron Pipe through a rubber-gasketed push-on system. They provide an efficient, leak-proof method to build branches, bends, and size transitions without bolts or welding—offering rapid assembly and long-term sealing reliability.
1. Material & Manufacturing
Core Material: Ductile Iron
The spheroidal graphite structure provides high tensile strength (≥420 MPa / 60,000 psi) and excellent impact resistance.
Socket Design:
Each fitting end includes a precision-cast bell (socket) with a groove to seat an elastomeric rubber gasket (typically EPDM). Once lubricated, the pipe spigot is inserted into the socket, creating a permanent seal.
Advantages:
Structural integrity equal to the pipe itself.
Seamless compatibility with DIP spigot ends.
No need for bolts, nuts, or welding.
2. Performance Characteristics
Leak-Tight Sealing:
The gasket compresses during assembly to maintain pressure-tight sealing under varying loads and conditions.
Flexibility:
Each joint allows 3–5° of angular deflection, accommodating ground movement, settlement, and thermal expansion—critical for seismic zones.
Fast Installation:
Assembly is quick and requires minimal tools or expertise, reducing time and labor costs significantly.
Corrosion Protection:
Cement-mortar internal lining and zinc/asphaltic or epoxy external coating ensure long-term protection against corrosion.
Note:
Standard socket fittings do not resist axial thrust; external thrust blocks or restrained joints should be used at high-pressure nodes.
3. Utility & Economic Value
Applications:
Municipal water distribution
Pressurized sewage systems
Industrial water transport
Fire protection networks
Operational Benefits:
Rapid, low-cost installation
Minimal skill requirement
Reliable, uniform system performance
Adaptability to field conditions
