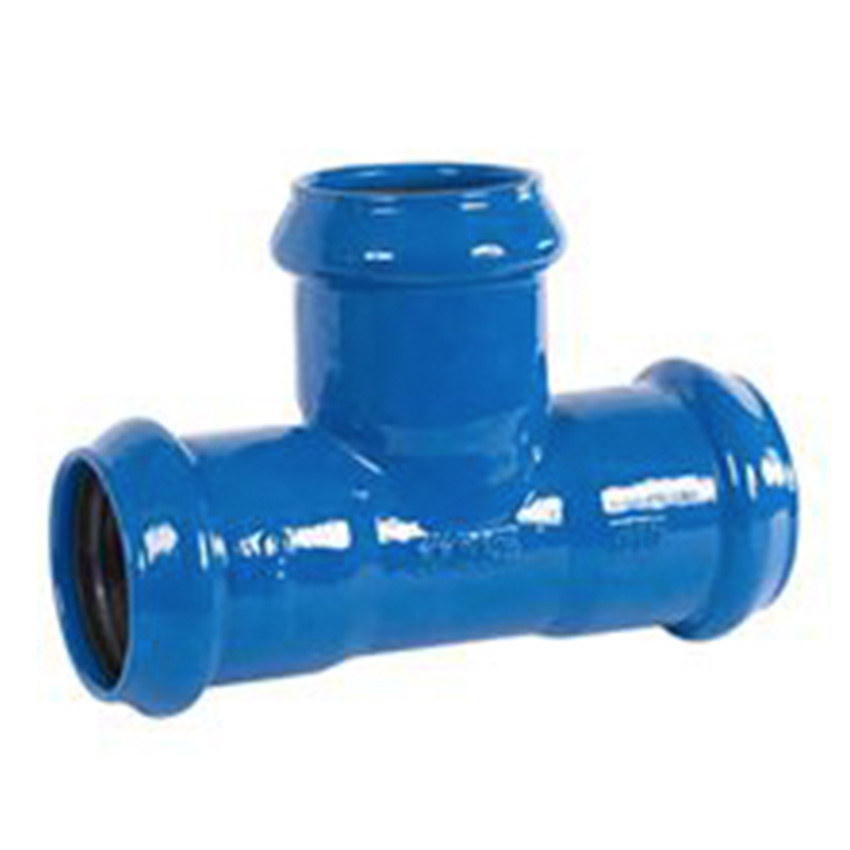

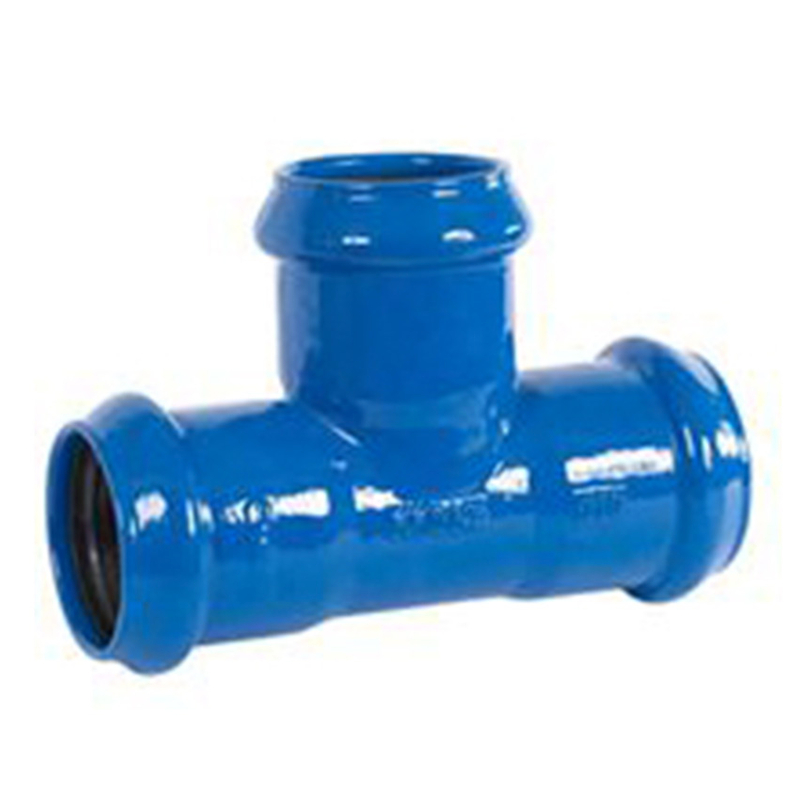

EN12842 All Socket UPVC Pipe Tee

Product Overview

• As a premier manufacturer and dedicated global supplier, we engineer the EN12842 All Socket UPVC Pipe Tee to serve as the ultimate junction solution for high-demand fluid distribution networks.
• Crafted from premium UPVC resin and fortified with a Fusion Bonded Epoxy (FBE) coating, this fitting guarantees unparalleled resistance to chemical degradation and environmental wear.
• The precision all-socket architecture eliminates the need for complex tooling, ensuring rapid, leak-proof integration into standard UPVC pipelines.
• Fully compliant with rigorous EN12842 international standards, it delivers uncompromising operational stability for municipal water, wastewater, and industrial applications.

Product Description

The EN12842 All Socket UPVC Pipe Tee represents the pinnacle of modern fluid management engineering, designed specifically to address the rigorous demands of large-scale infrastructure. When handling this fitting, one immediately notices the smooth, flawless finish of the Fusion Bonded Epoxy (FBE) coating, a tactile testament to its robust defense against harsh environmental elements and subterranean chemical attacks. The dense, premium UPVC resin structure feels exceptionally rigid yet remarkably lightweight, striking the perfect balance between structural integrity and field handling convenience. Visually, the symmetrical all-socket design showcases precision-molded internal contours, entirely free from abrasive seams or casting defects that typically induce fluid turbulence in lesser components.

As fluid rushes through the junction, the internal geometry works silently to maintain laminar flow, virtually eliminating the acoustic signature of pressure drops and mechanical vibrations. Every curve and socket depth is meticulously calibrated to grip the connecting pipes with absolute uniformity. Once integrated into a pipeline, the tee becomes an indistinguishable, permanent extension of the network itself. This is not merely a connection point; it is a vital, fail-safe safeguard engineered to ensure continuous, uncontaminated resource distribution across decades of uninterrupted service.

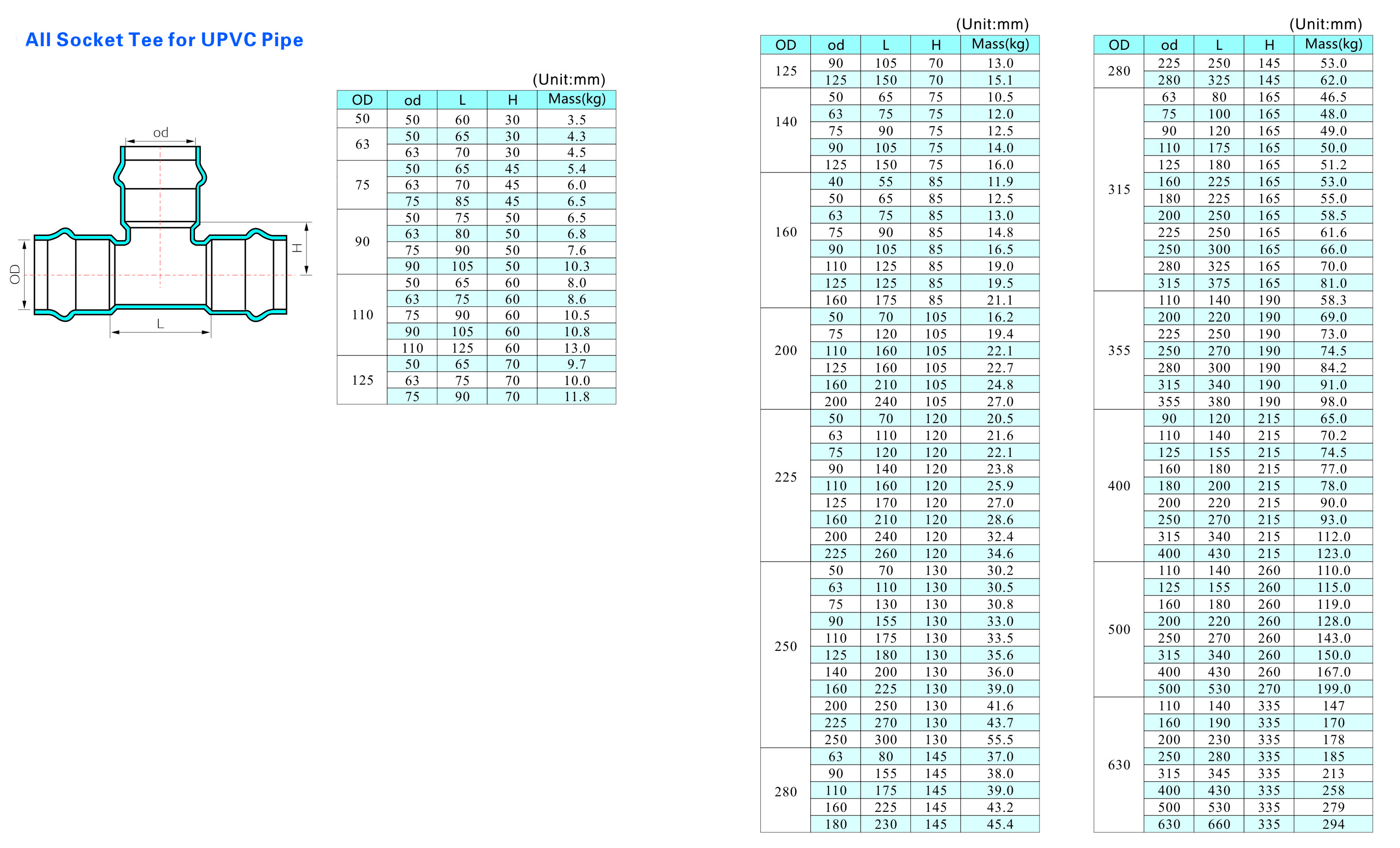

Product Specifications

Key Features & Highlights

Integrating this tee fitting into your infrastructure projects translates directly to enhanced operational stability and significantly reduced overhead. The meticulous engineering behind every unit ensures that project managers and field engineers can rely on consistent, fail-safe performance under varying environmental stresses.

• Elimination of Flow Bottlenecks: The smooth internal transition zones prevent the accumulation of particulates, maintaining optimal flow rates and reducing the energy required for pumping stations to push fluids through the network.
• Thermal Fluctuation Tolerance: Engineered to absorb the micro-expansions and contractions of connecting pipes, preventing stress fractures and joint fatigue during extreme seasonal temperature shifts.
• Accelerated Project Timelines: The intuitive socket geometry allows field crews to achieve perfect alignment instantly, drastically cutting down the man-hours required per junction without sacrificing seal integrity.
• Zero-Leak Assurance: By maximizing the surface contact area at the joint, the fitting creates an impenetrable seal that protects surrounding soil, structures, and infrastructure from water damage or chemical contamination.

Material & Durability

The foundation of any enduring pipeline network lies in the uncompromising quality of its constituent materials. This tee fitting is forged from premium UPVC resin, supplemented by ductile iron configurations that meet exacting EN1563 standards, providing an armored shell against mechanical impacts and subterranean pressures.

• Advanced FBE Shielding: Both the interior and exterior surfaces are fortified with a Fusion Bonded Epoxy coating. This creates an impermeable barrier that completely neutralizes the threat of oxidation, chemical attacks from aggressive soils, and internal mineral scaling.
• UV and Weather Immunity: For above-ground installations, the material matrix actively repels ultraviolet radiation, preventing the embrittlement and discoloration that typically plague standard plastics over time.
• Extended Asset Lifecycle: By resisting the corrosive nature of raw wastewater and chemically treated potable water, this fitting significantly extends the maintenance-free lifespan of the entire distribution grid, maximizing the return on your infrastructure investment.

Structural Design & Sealing

A pipeline is only as secure as its weakest junction, which is why this fitting employs a highly engineered all-socket symmetric architecture. This design philosophy prioritizes a flawless, gap-free union between the tee and the adjoining pipe ends, creating a continuous fluid conduit that behaves as a single, uninterrupted entity.

• Precision Injection Molding: The sockets are crafted with microscopic tolerances, ensuring that the connecting pipes slide in with uniform resistance, eliminating the asymmetrical gaps that often lead to localized pressure stress.
• Elastomeric Sealing Excellence: Utilizing premium EPDM or NBR rubber rings that strictly adhere to EN681-2 requirements, the sealing mechanism dynamically adapts to fluid pressure. As internal pressure increases, the seal compresses tighter against the pipe wall, effectively using the system's own force to reinforce the barrier.
• Turbulence Mitigation: The internal branching angles are hydrodynamically optimized to split or merge fluid streams with minimal disruption. This reduces the mechanical vibration and acoustic noise associated with turbulent flow, protecting the structural integrity of adjacent valves and meters.

Standards & Compliance

In large-scale municipal and commercial developments, regulatory compliance is not optional; it is the ultimate metric of safety and reliability. Every unit of this tee fitting is manufactured under a rigorous quality assurance framework that aligns with the most demanding global engineering directives.

• EN12842 Certification: Fully compliant with the European standard for PVC pipe adaptors, guaranteeing exact dimensional matching and mechanical compatibility with standardized piping networks across international jurisdictions.
• Stringent Factory Testing: Before deployment, each fitting undergoes severe hydrostatic pressure testing and comprehensive material spectroscopy. This ensures that the physical unit delivered to the site performs exactly as the engineering schematics promise.
• Potable Water Safety: The internal coatings and sealing elastomers are certified non-toxic and strictly tested against leaching. This provides absolute assurance to health authorities and municipal planners that the drinking water supply remains pristine and uncontaminated from source to tap.

Installation & Maintenance Costs

Procurement decisions are heavily influenced by the total cost of ownership, where field labor and long-term maintenance often eclipse the initial purchase price. This tee fitting is specifically engineered to aggressively drive down these secondary costs, offering a highly economical solution for expansive infrastructure rollouts.

• Featherweight Handling: Compared to traditional all-metal alternatives, the optimized UPVC and coated ductile iron construction dramatically reduces the weight of the fitting. This allows smaller field crews to position and install the junctions without the need for heavy lifting machinery.
• Tool-Free Assembly: The push-fit nature of the all-socket design eliminates the need for complex welding, threading, or specialized bonding equipment. Crews can achieve secure, permanent connections in a fraction of the time, keeping tight project schedules firmly on track.
• Zero-Maintenance Operation: Once buried or installed, the inherent corrosion resistance and dynamic sealing properties mean the fitting requires virtually zero routine maintenance. This drastically reduces the need for disruptive excavation or system shutdowns, preserving operational budgets for decades.

Applications & Compatibility

Versatility is a hallmark of superior engineering. The EN12842 All Socket UPVC Pipe Tee is designed to be the universal branching solution across a diverse spectrum of fluid management disciplines, adapting seamlessly to the specific demands of each sector.

• Municipal Water Distribution: Acts as the reliable backbone for branching main supply lines into residential neighborhoods and commercial districts, maintaining steady volumetric pressure across multiple delivery points.
• Wastewater and Sewage Management: The robust chemical resistance makes it an ideal conduit for routing aggressive raw sewage and industrial effluent safely to treatment facilities without risking soil contamination.
• Agricultural Irrigation Networks: Perfectly suited for splitting high-volume water sources into precise, targeted irrigation grids, ensuring optimal hydration delivery across vast agricultural tracts.
• Fire Suppression Systems: Built to withstand the sudden, extreme pressure surges characteristic of emergency fire-fighting networks, guaranteeing unobstructed, high-velocity water flow when seconds matter most.

Why Choose Us

Partnering with a dedicated manufacturer and trusted supplier means securing a strategic advantage in your supply chain. We understand that our components are the critical links in your high-stakes infrastructure projects, and we structure our operations to support your success at every level.

• Unwavering Quality Control: Our production facilities utilize state-of-the-art automated inspection technologies, ensuring that every single fitting meets our zero-defect tolerance policy before it is cleared for dispatch.
• Scalable Production Capacity: Whether you require localized fulfillment for a specific site or a massive international deployment, our agile manufacturing lines are equipped to deliver high-volume orders strictly on schedule.
• Technical Engineering Support: We provide comprehensive data sheets, installation guidance, and dedicated technical consultation to ensure our products integrate flawlessly into your specific architectural blueprints.
• Global Logistics Expertise: Navigating international shipping and customs is our forte. We ensure streamlined, secure packaging and optimized routing so your materials arrive intact and ready for immediate deployment.

Frequently Asked Questions (FAQ)

How does the Fusion Bonded Epoxy (FBE) coating enhance the operational lifespan of the tee fitting?

The FBE coating is applied electrostatically and cured under high heat, creating a cross-linked polymeric bond with the substrate. This results in an exceptionally hard, pore-free surface that acts as an absolute barrier against moisture, oxygen, and soil-borne chemicals, effectively preventing rust and degradation even in highly saline or acidic environments.

Are the EPDM and NBR sealing rings interchangeable for different fluid mediums?

While both provide exceptional sealing under EN681-2 standards, they cater to different environments. EPDM is highly recommended for potable water, wastewater, and outdoor applications due to its superior resistance to ozone, UV rays, and chloramines. NBR, conversely, is specifically formulated to resist degradation from oils, hydrocarbons, and certain industrial chemicals, making it ideal for specialized drainage or industrial effluent systems.

Does the all-socket design accommodate minor misalignments during trench installation?

Yes, the precision-engineered socket depth and the dynamic compression of the elastomeric seals allow for a slight angular deflection (typically up to 3 degrees, depending on pipe diameter). This flexibility is crucial for accommodating minor ground shifting, trench irregularities, or thermal expansion without compromising the leak-proof integrity of the joint.

What is the recommended procedure for integrating this tee into an existing legacy UPVC network?

Integration is highly streamlined. Ensure the existing pipe ends are cut square, chamfered, and thoroughly cleaned of debris and old lubricants. Apply a certified, compatible pipe lubricant to the chamfered end and the internal sealing ring of the tee, then push the pipe into the socket until it reaches the engineered insertion depth mark. No specialized heat welding or solvent cement is required for this specific mechanical joint.

Can this fitting withstand the pressure transients (water hammer) typical in municipal pumping stations?

Absolutely. The structural geometry of the tee, combined with the energy-absorbing properties of the premium UPVC resin and the dynamic rubber seals, provides significant resilience against hydraulic shocks. It is designed to operate safely within the standard pressure ratings for municipal networks, absorbing and dissipating the kinetic energy of water hammers without fracturing or dislodging.

What documentation is provided to verify compliance with EN12842 and potable water safety standards?

Every shipment is accompanied by comprehensive Material Test Reports (MTRs) and Certificates of Conformity. These documents detail the chemical composition of the materials, the results of factory hydrostatic pressure tests, and third-party laboratory certifications verifying the non-toxicity and anti-leaching properties of the internal coatings and seals, ensuring full regulatory compliance for your project.
