The High-Strength 30° UPVC Double Bend is a precision-engineered piping fitting designed for efficient directional changes in UPVC systems. Featuring a double socket connection and FBE coating, it ensures leak-proof joints, minimal flow disruption, and exceptional chemical resistance for demanding water and wastewater applications.
| Quantity: | |
|---|---|
Sourced directly from a premier manufacturer and supplier, this specialized directional piping fitting is engineered to support the rigorous demands of large-scale infrastructure and industrial procurement. It delivers exceptional fluid routing capabilities while maintaining absolute structural integrity in challenging environments.

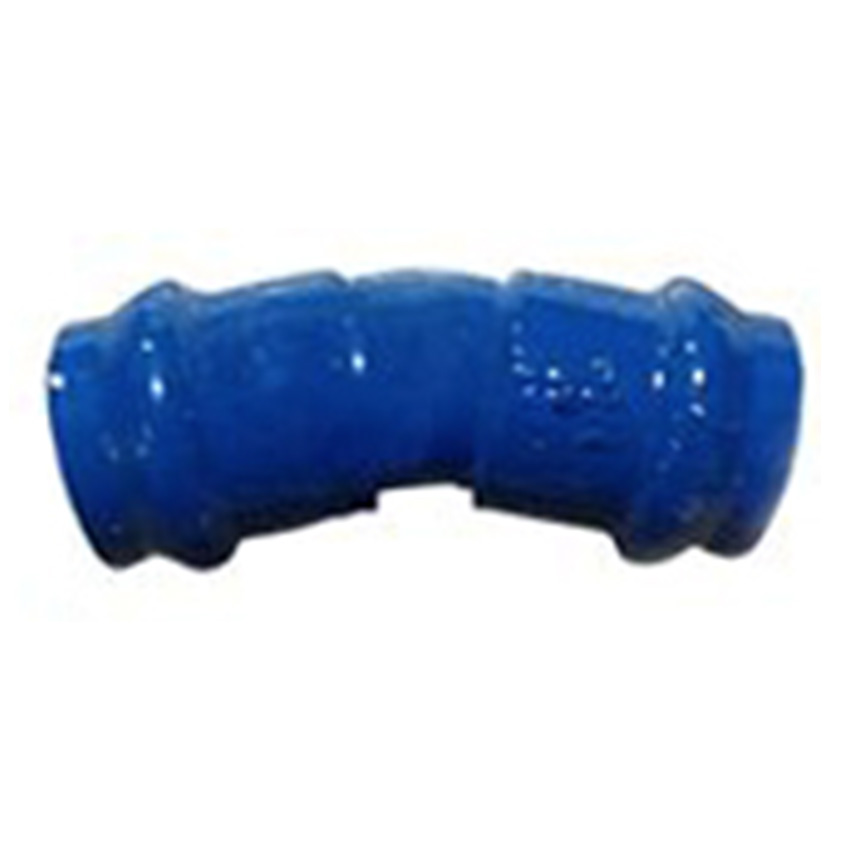

The High-Strength 30° UPVC Double Bend stands as a pinnacle of modern fluid routing engineering, meticulously designed to address the complex demands of large-scale piping networks. When handling the fitting, the robust, dense structure of the premium unplasticized polyvinyl chloride immediately conveys a sense of enduring durability, while the flawlessly smooth Fusion Bonded Epoxy (FBE) coating presents a sleek, tactile finish that actively repels moisture and chemical degradation. This component is not merely a connection point; it is a strategic flow-optimization tool. By implementing a precise 30-degree curvature, the fitting dramatically mitigates the harsh acoustic turbulence and violent pressure drops typically associated with sharper angles. Fluids glide silently and efficiently through the meticulously tapered double sockets, ensuring that municipal water systems, industrial chemical lines, and agricultural networks operate at peak hydraulic efficiency.
The seamless integration process eliminates the need for cumbersome thermal welding or volatile chemical solvents, allowing site engineers to execute rapid, secure installations. Every curve and contour is crafted to resist the relentless mechanical stress of shifting soils and the corrosive bite of aggressive wastewater. The tactile feedback of a pipe sliding firmly into the socket provides an immediate assurance of a watertight seal, offering project managers absolute confidence in the long-term integrity of their subterranean and exposed infrastructure.

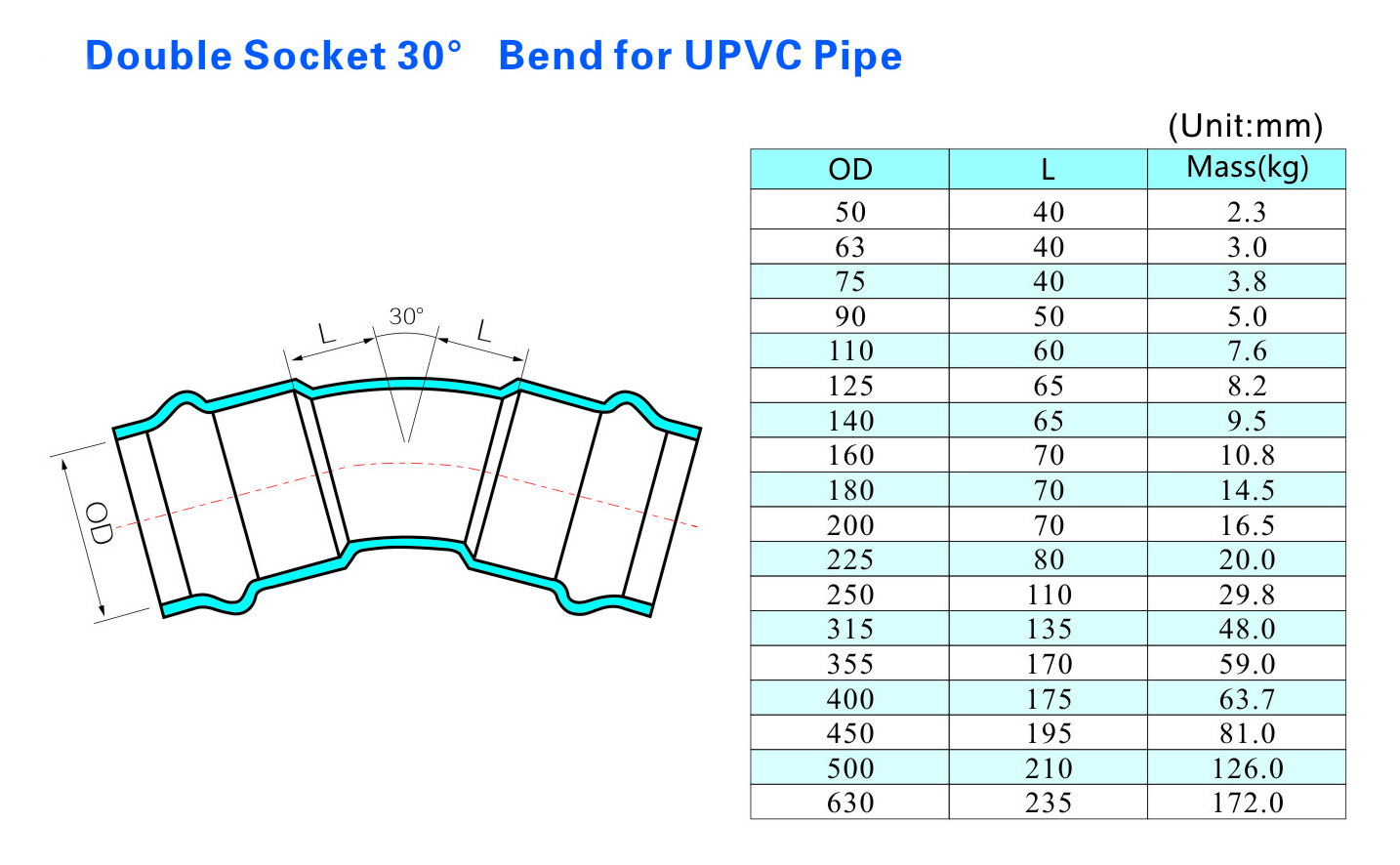

Understanding the precise technical parameters of your piping components is critical for ensuring seamless system integration and long-term operational stability. The following table details the exact specifications of our 30-degree directional fitting, rigorously tested to meet stringent international standards. From the core material composition to the specific thermal tolerances, every metric is provided to assist project engineers and procurement specialists in verifying compatibility with existing infrastructure. These standardized dimensions and material properties guarantee reliable performance across a multitude of demanding environments.
| Product Name | High-Strength 30° UPVC Double Bend (Double Socket 30° Bend for UPVC Pipe) |
| Main Material | Premium UPVC |
| Surface Treatment | Internal and External FBE (Fusion Bonded Epoxy) Coating |
| Bend Angle | 30° |
| Connection Type | Double Socket |
| Execution Standard | EN12842 |
| Applicable Temperature | Cold to moderately warm water |
| Standard Pipe Diameter | 110mm |
| Product Weight | Approx. 0.420 KG |
| Warranty Period | 10 Years |
Engineered to elevate the standard of fluid transmission, this fitting integrates advanced material science with practical, on-site usability. Every feature is purposefully designed to solve common infrastructure challenges, from premature wear to installation bottlenecks.
Crafted from a high-density, premium polymer matrix, the fitting feels remarkably solid and unyielding under pressure. This rigid construction prevents warping and micro-fracturing when subjected to heavy soil loads or sudden hydraulic shocks, drastically reducing the risk of catastrophic system failures.
The interior surface, enhanced by the specialized epoxy coating, feels as smooth as glass. This ultra-low friction environment ensures that water, slurries, or industrial fluids flow silently and swiftly, minimizing energy consumption for pumping stations and preventing the accumulation of abrasive sediments.
Whether exposed to the harsh, blistering UV rays of an open agricultural field or buried in damp, acidic soil, the external protective barrier remains impenetrable. The coating visually retains its pristine, industrial-grade finish year after year, actively repelling rust, rot, and corrosive chemical attacks.
The dual connection points feature a meticulously tapered entrance. When a compatible pipe is inserted, it glides in with a satisfying, secure resistance, creating an immediate, watertight seal. This ergonomic design eliminates the messy, odor-heavy application of supplementary adhesives, streamlining the entire assembly process.
To meet the rigorous demands of modern construction and municipal planning, this directional fitting offers a comprehensive suite of mechanical and operational advantages. It is tailored to provide unparalleled reliability across diverse sectors, ensuring your procurement investments yield maximum operational returns.
Utilizing high-strength premium UPVC paired with an internal and external FBE (Fusion Bonded Epoxy) coating, the fitting boasts formidable resistance against UV radiation, extreme temperature fluctuations, and severe mechanical stress. It remains completely impervious to acids, alkalis, and organic solvents, guaranteeing a rust-free and rot-free lifespan even in the most hostile underground or industrial settings.
The precisely calculated 30° angle strikes a flawless balance between directional routing and hydraulic efficiency. Compared to sharp 90° alternatives, it drastically diminishes fluid turbulence and pressure drops. The glass-like FBE interior further reduces flow resistance, effectively preventing the buildup of silt, debris, and mineral deposits.
Featuring an ergonomically designed double socket structure with a smooth, tapered interior, the fitting allows pipes to slide in effortlessly, forming an instant, tight seal. This intuitive design negates the need for heavy machinery, specialized workforce training, or extra sealants under normal conditions, significantly slashing on-site labor costs and accelerating project timelines.
Manufactured in absolute compliance with the EN12842 international standard, this component ensures flawless interoperability with global UPVC piping networks. Procurement specialists can integrate this fitting into existing systems with total confidence, eliminating any concerns regarding dimensional mismatches or certification bottlenecks.
With its compact footprint and robust connection mechanism, the fitting excels in both exposed and concealed installations. It is the perfect routing solution for municipal stormwater drainage, water treatment plants, commercial building plumbing (easily navigating around structural columns), and expansive agricultural irrigation networks requiring moderate directional shifts.
Built for maximum impact resistance and dimensional stability, the leak-proof architecture actively prevents water loss and subsequent soil erosion. Backed by a comprehensive 10-year manufacturer warranty, this fitting promises an exceptionally long operational life, drastically reducing the frequency of maintenance interventions and replacement expenditures for large-scale operators.
Selecting the right manufacturing partner is just as critical as selecting the right component. We bring decades of specialized engineering expertise to the table, ensuring that every fitting delivered meets the highest echelons of quality and reliability. Our commitment to excellence empowers your large-scale projects from inception to completion.
Operating state-of-the-art production facilities, we maintain rigorous oversight over every phase of the fabrication process. Our deep-rooted industry expertise guarantees that each batch adheres strictly to international engineering tolerances, providing you with consistently flawless components.
We understand the critical nature of project timelines. Our robust inventory management and streamlined logistics network ensure that bulk procurement orders are fulfilled promptly, keeping your construction schedules entirely on track without unexpected delays.
Beyond simply supplying components, we provide comprehensive engineering insights. Our team of seasoned specialists is always available to consult on complex fluid routing challenges, ensuring you select the optimal configuration for your specific environmental and hydraulic demands.
Trusted by major infrastructure developers globally, our products have successfully endured the test of time in some of the most demanding municipal and industrial environments, solidifying our reputation as a dependable industry leader.
To assist procurement managers and site engineers in making informed decisions, we have compiled detailed answers to the most common technical inquiries regarding our directional fittings.
The 30° curvature provides a highly specific mid-range directional shift. It is engineered for scenarios where an 11.25° turn is too gradual to navigate around structural obstacles, yet a 45° or 90° bend would introduce unacceptable levels of hydraulic turbulence and pressure loss. It perfectly balances spatial routing needs with optimal flow dynamics.
The FBE coating acts as an impenetrable, inert barrier that completely isolates the underlying polymer from aggressive external elements. In highly acidic or alkaline soils, the coating prevents chemical degradation, ensuring the structural integrity of the fitting remains uncompromised over decades of subterranean service.
While the fitting is strictly manufactured to EN12842 standards for guaranteed seamless integration with certified components, its standardized outer diameter tolerances often allow it to interface with legacy UPVC systems. However, for non-certified legacy pipes, we highly recommend verifying exact dimensional measurements with our technical team prior to installation.
No. One of the primary cost-saving benefits of the double socket design is its push-fit mechanical nature. The smooth, tapered interior allows compatible pipes to slide in securely, creating a robust, leak-proof seal without the need for thermal welding, heavy machinery, or complex on-site curing processes.
This fitting is optimized for cold to moderately warm fluid transmission. Continuous exposure to high-temperature industrial effluents or boiling water systems can compromise the dimensional stability of the unplasticized polyvinyl chloride. For applications exceeding standard ambient water temperatures, please consult our engineering department for thermal compatibility assessments.
The comprehensive 10-year warranty drastically reduces the total cost of ownership. By guaranteeing protection against manufacturing defects and premature material degradation, facility operators can confidently minimize their contingency budgets for emergency repairs and component replacements, ensuring highly predictable maintenance expenditures.
