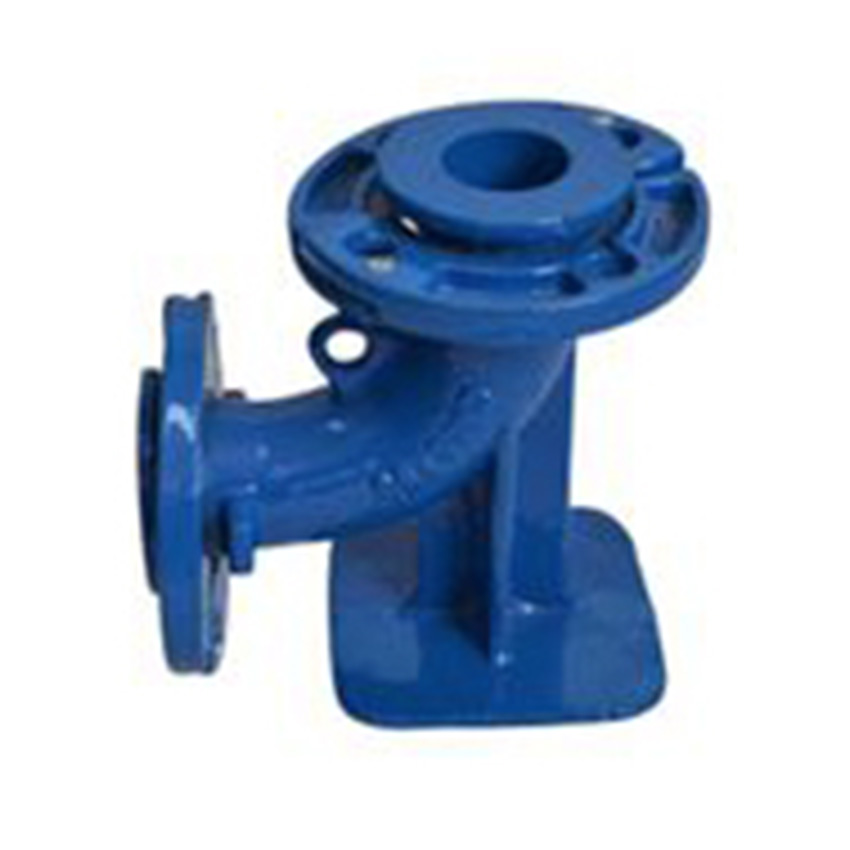

Smooth-Flow 90° Duckfoot Flange Bend

Product Overview

As a premier manufacturer and supplier of advanced fluid control components, we provide the Smooth-Flow 90° Duckfoot Flange Bend for large-scale infrastructure and wholesale procurement. Designed to optimize directional transitions in demanding networks, this fitting delivers unmatched reliability and operational efficiency.

• Engineered for optimal fluid dynamics, significantly minimizing internal turbulence and pressure loss.
• Constructed from robust ductile iron for superior longevity and resistance to mechanical stress.
• Features a highly adaptive double loose flange setup for rapid, stress-free alignment in tight trenches.
• Integrated duckfoot base provides unyielding foundational support for heavy vertical pipelines.

Product Description

The Smooth-Flow 90° Duckfoot Flange Bend represents a pinnacle in modern pipeline engineering, meticulously crafted to redirect heavy fluid flows while maintaining absolute structural stability. When handling the heavy, cool touch of the epoxy-coated ductile iron, the premium craftsmanship is immediately apparent. The smooth, glass-like internal Fusion Bonded Epoxy (FBE) finish eliminates the harsh scraping sounds of turbulent water, ensuring fluids glide silently and effortlessly through the sharp 90-degree turn. This frictionless interior not only preserves the purity of the water but also drastically reduces the energy required by pumping stations to push volumes through the network.

By integrating a solid, flat-bottomed duckfoot base, this fitting provides an unyielding foundation that absorbs immense vertical loads and eliminates the dangerous, deep-bass vibrations often felt in high-pressure pumping stations. Pipeline operators will notice a dramatic reduction in system fatigue, as the engineered curvature naturally guides the flow, eliminating localized pressure drops and the resulting energy waste. It is a definitive solution for engineers seeking to eradicate joint stress, prevent costly leakages, and guarantee an uninterrupted, high-volume flow in critical municipal, agricultural, and industrial water transmission networks.

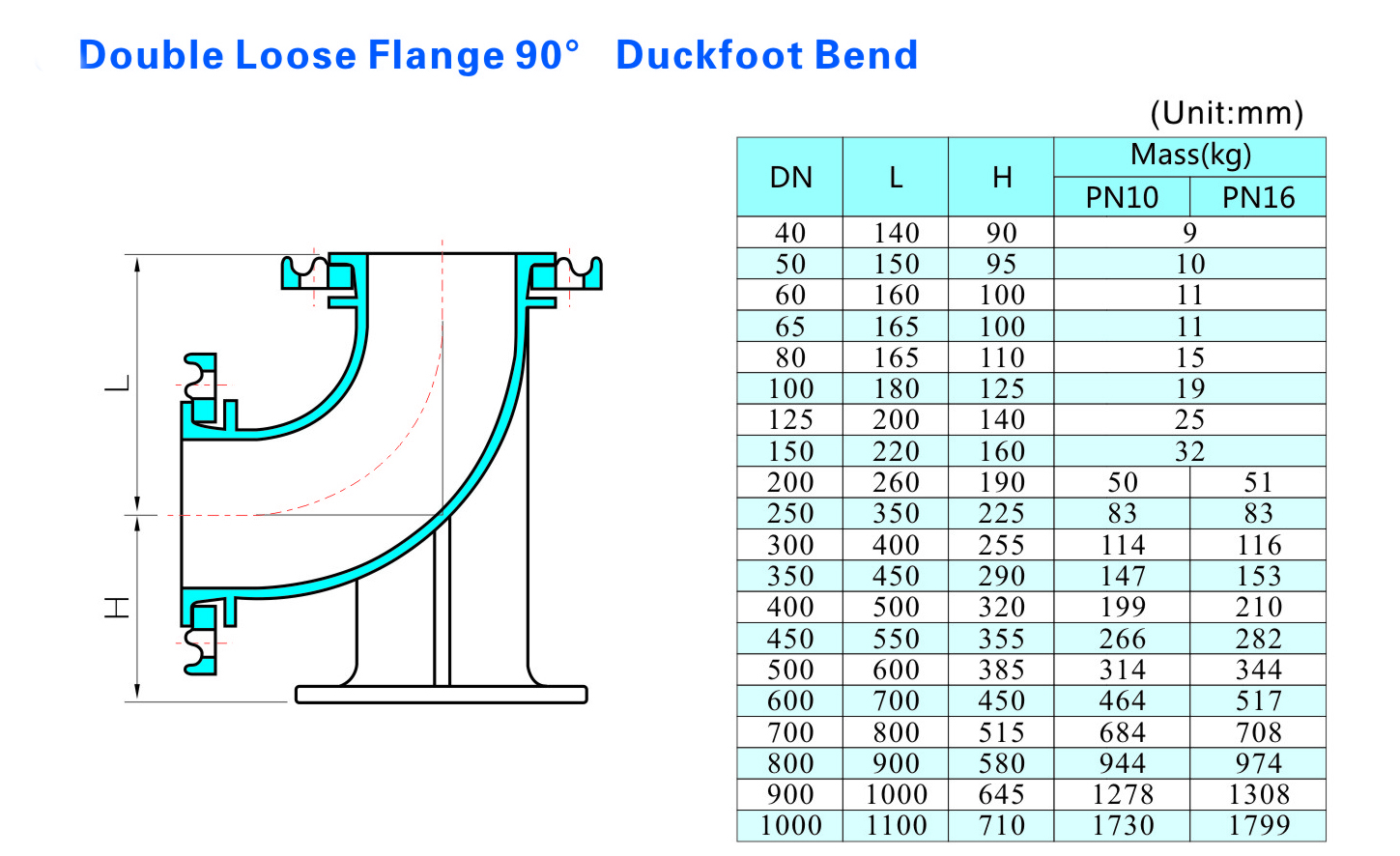

Product Specifications

Key Features & Highlights

Our engineering team has focused on resolving the most common pain points in pipeline construction, resulting in a fitting that dramatically improves both installation speed and long-term operational security. The intelligent integration of advanced materials and smart geometry sets this bend apart.

• Vibration Dampening Base: The integrated duckfoot acts as a heavy-duty anchor, absorbing hydraulic shocks and mechanical vibrations before they can propagate through the pipeline infrastructure.
• Frictionless Internal Geometry: The meticulously cast internal curve prevents eddy currents, ensuring that massive volumes of water or wastewater pass through without bottlenecking or causing internal erosion.
• Adaptive Flange Mobility: The loose flange rings rotate freely around the pipe axis, allowing installation crews to match bolt holes instantly without applying torque or stress to the adjacent pipes.
• Impenetrable Surface Protection: The thermally bonded epoxy creates a seamless shield, completely isolating the core metal from aggressive soil chemistries and corrosive internal fluids.

Comprehensive Engineering Dimensions

To fully understand the capabilities of this fitting, it is essential to explore the multi-dimensional engineering principles that dictate its exceptional performance across various industrial and municipal landscapes.

Design & Fluid Dynamics

The unique "duckfoot" profile is not merely structural; it is a masterclass in fluid dynamics. It provides a rock-solid bottom support while simultaneously smoothing the fluid's path.

• Vertical Load Bearing: Offers an unyielding pedestal for vertical pipe columns and pump station equipment, preventing downward sagging.
• Efficiency Boost: Drastically reduces turbulence, eddy currents, and pressure loss during the sharp 90-degree transition, lowering system energy consumption.

Installation & Alignment

Utilizing a highly adaptive double loose flange design, the flange rings can rotate independently, transforming how crews approach trench work.

• Effortless Bolt Matching: Simplifies the alignment of bolt holes on the construction site, eliminating the need to rotate the entire heavy fitting.
• Stress Elimination: Absorbs and accommodates minor deviations in the pipeline layout, preventing the immense stress caused by forced assembly and reducing leak risks.

Corrosion Protection & Durability

Both the internal and external surfaces are fortified with a premium Fusion Bonded Epoxy (FBE) coating, applied through a high-temperature fusion process.

• Uniform Coverage: Ensures a perfectly uniform, impenetrable layer even in the tightest blind spots of the curve.
• Harsh Environment Ready: Delivers exceptional rust and chemical resistance, guaranteeing a prolonged operational lifespan in damp, underground, or highly corrosive environments.

Pressure & Structural Integrity

Engineered specifically for high-pressure and high-flow networks, the robust body works in tandem with the duckfoot support base to manage extreme forces.

• Even Load Distribution: Disperses operational pressures evenly across the fitting's geometry.
• High-Pressure Tolerance: Capable of sustaining PN10 to PN40 pressure ratings without deformation, even under the severe stress of sudden water hammer impacts.

Standards & Compliance

Manufactured in strict accordance with international benchmarks, this bend guarantees precise engineering and flawless dimensional consistency.

• Global Benchmarks: Fully compliant with ISO2531, EN545, and AWWA standards.
• Universal Interoperability: Standardized flange drilling ensures seamless compatibility with a global array of standard piping components, valves, and pumping equipment.

Application Versatility

This fitting is exceptionally versatile, serving as a critical junction in a wide array of fluid transport systems.

• Municipal & Industrial: Ideal for city water supply networks, wastewater treatment facilities, and heavy-duty industrial pump stations.
• Agricultural Use: Provides reliable, top-tier performance for large-scale agricultural irrigation systems exposed to the elements.

Specifications & Customization

We recognize that no two infrastructure projects are identical, which is why we offer comprehensive sizing and tailored manufacturing options.

• Massive Size Range: Available from DN50 up to massive DN2600mm diameters.
• Bespoke Solutions: Support for non-standard materials, specialized flange drilling, and specific anti-corrosion treatments like cement mortar lining or black bitumen coating.

Why Choose Us

Selecting the right infrastructure components is a critical decision that impacts the safety and efficiency of entire communities. Our manufacturing processes are driven by an uncompromising commitment to engineering excellence and material integrity.

• Precision Casting Technology: We utilize advanced casting methods to ensure every fitting is free from microscopic voids or structural weaknesses, guaranteeing absolute density and strength.
• Rigorous Quality Assurance: Every single unit undergoes severe hydrostatic pressure testing and coating thickness verification before it leaves the facility, ensuring zero-defect delivery.
• Supply Chain Reliability: With streamlined production lines and optimized logistics, we guarantee on-time delivery for massive infrastructure projects, keeping your construction schedules strictly on track.
• Expert Engineering Support: Our technical team provides comprehensive guidance, from selecting the correct pressure ratings to advising on optimal installation techniques for complex layouts.

Frequently Asked Questions (FAQ)

Below are detailed technical answers to the most common inquiries we receive from pipeline engineers, project managers, and procurement specialists regarding this specific fitting.

How does the duckfoot base improve the stability of vertical pipeline installations?

The flat, extended surface area of the duckfoot base acts as a load-bearing pedestal. When installed at the base of a vertical pipe run, it transfers the immense downward gravitational and hydraulic weight directly into the concrete thrust block or floor. This prevents the pipeline from sagging, eliminates shearing stress on the adjacent horizontal flanges, and dampens mechanical vibrations generated by nearby pumps.

What are the primary advantages of the double loose flange design during field alignment?

Traditional fixed flanges require the entire heavy pipe fitting to be rotated to align the bolt holes perfectly, which is extremely difficult and dangerous in muddy trenches or tight spaces. The double loose flange design features backing rings that spin freely around the pipe stub. Installers can simply lift the fitting into place and effortlessly rotate the lightweight rings to match the mating pipe, saving hours of labor and preventing forced-alignment stress.

Can the Fusion Bonded Epoxy (FBE) coating withstand highly corrosive wastewater environments?

Absolutely. The FBE coating is a thermoset polymer that chemically bonds with the ductile iron at a molecular level. It creates a smooth, non-porous barrier that is highly resistant to hydrogen sulfide, acidic soil conditions, and the abrasive suspended solids typically found in raw sewage and industrial wastewater. This prevents internal tuberculation and external rusting, extending the asset's life.

Is this bend compatible with existing standard pipeline infrastructures?

Yes. The fitting is meticulously manufactured to comply with universal standards including ISO2531, EN545, EN598, and AWWA C110/C153. The flange drilling can be customized to match ISO 7005-2 or EN1092-2 specifications. This ensures that it will bolt seamlessly onto existing valves, pipes, and pumps regardless of the original manufacturer, making it ideal for both new constructions and legacy system upgrades.

How does the internal geometry affect the overall pressure drop across the 90-degree turn?

Standard sharp elbows create severe turbulence, causing the fluid to crash against the outer wall and form drag-inducing eddy currents on the inner radius. The Smooth-Flow design utilizes a precisely calculated sweeping radius that gently guides the fluid through the directional change. This maintains laminar flow, significantly reducing the friction coefficient and minimizing the pressure head loss, which ultimately lowers the energy required by the pumping station.
