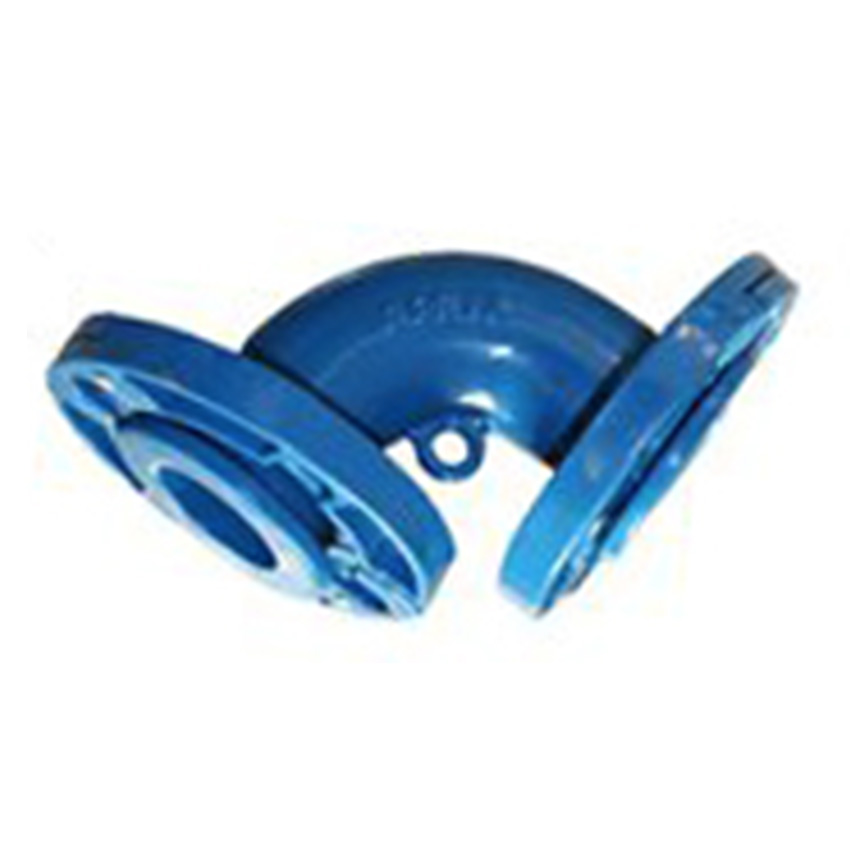

The Pressure-Rated 90° Double Loose Flange stands as an essential engineered piping component, specifically constructed to execute precise right-angle directional shifts within complex fluid transport networks. When handled, the solid UPVC core feels dense and structurally resolute, providing immediate tactile assurance of its industrial-grade construction. Visually, the component is enveloped in a smooth, uniform Fusion Bonded Epoxy (FBE) coating that reflects a meticulous manufacturing process. This specific 90° curvature is indispensable for navigating restrictive structural corners, dense concrete utility shafts, or tightly packed equipment layouts. The integration of a double loose flange mechanism introduces exceptional rotational freedom during the assembly phase. Installers can effortlessly align bolt holes without exerting undue mechanical stress on the primary pipe axis. This configuration ensures consistent, reliable fluid control across municipal water distribution networks, commercial plumbing infrastructures, and heavy-duty fluid handling environments where spatial constraints demand a connection point that is both compact and highly accessible for future maintenance.
Achieving a precise 90° turn is critical for maneuvering through restrictive architectural layouts. The internal geometry of this fitting features a carefully contoured sweep that guides fluid smoothly around the sharp corner, actively minimizing internal turbulence and frictional drag. Furthermore, this optimized fluid dynamic structure effectively absorbs water hammer impacts and mechanical vibrations, significantly dampening acoustic noise during peak flow operations. The smooth inner wall maintains consistent fluid velocity, lowering the overall energy expenditure required by pumping stations.
The defining mechanical characteristic of the loose flange is its capacity to rotate freely around the pipe terminus prior to final tightening. This rotational flexibility allows field technicians to effortlessly match existing bolt patterns on mating pipes. Standardized flange interfaces guarantee flawless integration with a vast array of global valves, pumping stations, and legacy pipeline networks. We enforce strict protocols for safe disassembly; by ensuring proper system depressurization before unbolting, maintenance teams can laterally extract the fitting without scratching the sealing faces or inducing stress concentrations, thereby extending the operational lifespan of the entire pipe run.
Engineered to rigorously uphold PN10 and PN16 pressure ratings, this component sustains absolute structural integrity under demanding medium to high-pressure fluid environments. The reinforced flange connection evenly distributes mechanical clamping forces across the joint, actively preventing localized deformation and eliminating vulnerabilities associated with pressure-induced leaks. Whether deployed in chilled water circulation lines or elevated-temperature industrial fluid systems, the fitting is calibrated to operate safely within clearly defined extreme thermal and pressure thresholds.
Defense against aggressive environmental degradation is secured by a comprehensive Fusion Bonded Epoxy (FBE) internal lining and external coating. This specialized, hard-cured epoxy layer acts as an impermeable shield against oxidation, prolonged UV radiation exposure, and severe chemical attacks. Beneath this robust exterior, the UPVC core naturally resists deterioration from acidic soil compositions, corrosive sewage effluents, and abrasive industrial solvents. This dual-layer protection guarantees decades of reliable, maintenance-free service across both buried underground installations and exposed above-ground infrastructure projects.
In large-scale residential and commercial infrastructure, routing water lines through confined utility shafts requires exacting geometry. The 90° bend effectively maneuvers around structural beams, concrete pillars, and floor joists. The loose flange design drastically reduces the physical exertion required for installation in cramped utility closets, allowing contractors to secure connections swiftly in spaces where traditional wrench clearance is severely limited.
Managing heavy volumetric flows in storm water systems necessitates fittings capable of withstanding sudden hydraulic surges. This component delivers reliable performance through several key mechanisms:
Efficiently redirects fast-moving runoff from horizontal collection pipes into vertical drainage drops.
Provides secure, leak-tight flange mating to prevent localized flooding during heavy rainfall.
Protects building foundations and subterranean parking structures from long-term water damage and soil erosion.
Manufacturing facilities frequently feature complex machinery layouts that demand exact fluid routing. This fitting navigates around large equipment footprints with precision. Because industrial lines often transport abrasive fluids or require routine internal inspections, the rotating flange mechanism permits maintenance crews to unbolt and extract specific pipe sections laterally. This swift removal capability keeps operational downtime to an absolute minimum, optimizing overall plant productivity.
Handling public water supplies demands unwavering adherence to hygiene and safety protocols. This fitting is entirely suitable for municipal water purification centers, food-grade processing facilities, and advanced sewage treatment reservoirs. The inert UPVC and FBE materials will not leach contaminants into the medium, ensuring that both treated potable water and untreated wastewater are transported safely, efficiently, and in full compliance with stringent sanitary codes.
Every unit is manufactured under strict compliance with ISO2531 / EN545 directives, ensuring universal compatibility with global flange-connected infrastructure. It meets rigorous criteria for pressure ratings, dimensional accuracy, and material composition.
| Standard Compliance | ISO2531 / EN545 |
| Pressure Ratings | PN10 / PN16 |
| Bend Angle | 90° |
Constructed from industrial-grade UPVC, the fitting offers an optimal strength-to-weight ratio. The FBE internal lining creates a glass-like, frictionless flow path that actively prevents particulate buildup. To guarantee industrial-grade, zero-defect delivery, every batch undergoes exhaustive quality control and inspection protocols. We subject the fittings to strict on-site hydrostatic pressure tests at up to 1.5 times the standard working pressure. Additionally, comprehensive coating thickness verifications are conducted to ensure uniform protection, guaranteeing absolute leak prevention before any unit leaves the facility.
The 90° curvature is machined to exact dimensional tolerances. To maximize the effectiveness of this precision, we provide standardized installation and fastening specifications. We strongly recommend following calculated bolt torque guidelines and utilizing a diagonal alternating tightening sequence. This methodical approach ensures that clamping force is distributed evenly across the flange face, effectively preventing mechanical distortion and securing a permanent, leak-proof seal.
We provide a broad spectrum of pipe diameter selections and non-standard flange drilling customization services. This flexibility allows us to meet the unique, highly specific requirements of complex engineering projects, ensuring that our clients receive components perfectly tailored to their proprietary system architectures.
To ensure pristine condition upon arrival, all fittings are secured using high-strength wooden pallets and reinforced iron framing. Supported by an efficient global supply chain, we guarantee the punctual delivery of large-scale engineering orders, safeguarding your project timelines against unexpected transit delays.
Our manufacturing facilities operate under a fully certified ISO9001 quality management system and hold NSF drinking water sanitation approvals. We welcome rigorous third-party factory audits, backed by deep research and development capabilities that continuously drive product innovation and reliability.
We stand behind our products with comprehensive warranty commitments. Clients receive detailed installation manuals and have access to remote or on-site technical guidance from our specialized engineering team, significantly mitigating project operational risks and ensuring seamless system commissioning.
Loose flanges provide critical rotational flexibility during the alignment phase, allowing installation crews to perfectly match bolt holes without twisting or stressing the main pipe axis. This design is exceptionally advantageous for future maintenance operations. The flange can be unbolted and the fitting removed laterally without the need to cut the pipe, unlike fixed socket connections which are permanently bonded and require destructive removal.
Yes, the strategic combination of the Fusion Bonded Epoxy (FBE) coating and the UPVC core delivers outstanding chemical resilience against a wide spectrum of corrosive media, including acids and alkalis. However, we always recommend verifying the specific chemical compatibility and concentration levels of your fluid against our material safety thresholds prior to full-scale installation to ensure maximum longevity.
While any directional change introduces a degree of hydraulic resistance, this fitting features an optimized internal sweep designed specifically to minimize pressure drops. The smooth, glass-like FBE lining further reduces surface friction, ensuring that the fluid maintains an efficient, steady flow rate even as it navigates through the sharp 90° transition.
To achieve maximum sealing performance, pay close attention to accessory compatibility and selection. We recommend pairing this fitting with high-strength, anti-corrosion bolts and specialized gasket materials, such as PTFE or compressed non-asbestos fiber, depending on the specific fluid medium. Common alternatives like EPDM or nitrile rubber are highly suitable for standard municipal water applications. Always ensure the chosen gasket matches the chemical and thermal profile of your pipeline system.
