Custom-Lining Double EX 90° Bend

Product Overview

As a premier manufacturer and reliable global supplier of advanced fluid transmission components, we proudly present the Custom-Lining Double EX 90° Bend. Engineered meticulously for high-stress municipal, commercial, and industrial piping networks, this specialized fitting guarantees seamless directional fluid changes while maintaining absolute system integrity.

• Precision 90-degree redirection minimizing turbulence and pressure drop.
• Innovative Double EX socket configuration for superior joint stability and restraint.
• Customizable internal linings (FBE, Epoxy, PU) tailored for diverse fluid media.
• Fully compliant with rigorous ISO2531 and EN545 international engineering standards.
• Available in a comprehensive range of dimensions from DN60 to DN600.

Product Description

The Custom-Lining Double EX 90° Bend stands as a pinnacle of modern fluid dynamics engineering, meticulously cast from high-strength ductile iron to serve the most demanding heavy infrastructure projects. When you run your hand along the carefully applied Fusion Bonded Epoxy interior, you immediately feel the ultra-smooth, glass-like finish designed specifically to eliminate friction and prevent the accumulation of abrasive microscopic sediments. This flawless inner topography translates directly to silent, unobstructed flow, drastically reducing the auditory hum, mechanical vibration, and kinetic stress typically associated with high-pressure fluid redirection. The robust exterior, heavy, dense, and solid to the touch, speaks volumes about its structural integrity and its inherent resilience against deep-trench soil pressures, heavy top-loads, and unexpected mechanical impacts.

Beyond its tactile and visual craftsmanship, this fitting is purposefully built to solve critical alignment and separation vulnerabilities in complex pipeline architectures. By seamlessly transitioning fluid streams at a perfect right angle, it effectively mitigates the destructive forces of water hammer and sudden pressure spikes that plague standard fittings. Project managers, site engineers, and procurement specialists will appreciate how this single component fundamentally enhances the lifespan of the entire municipal or industrial network. It acts not merely as a turning point for potable water, aggressive stormwater, or volatile industrial chemicals, but as a heavily fortified anchor that protects the system from catastrophic joint failures. Ultimately, integrating this fitting safeguards your operational investments, ensures environmental compliance, and drastically reduces the need for unplanned, costly underground excavations and emergency maintenance.

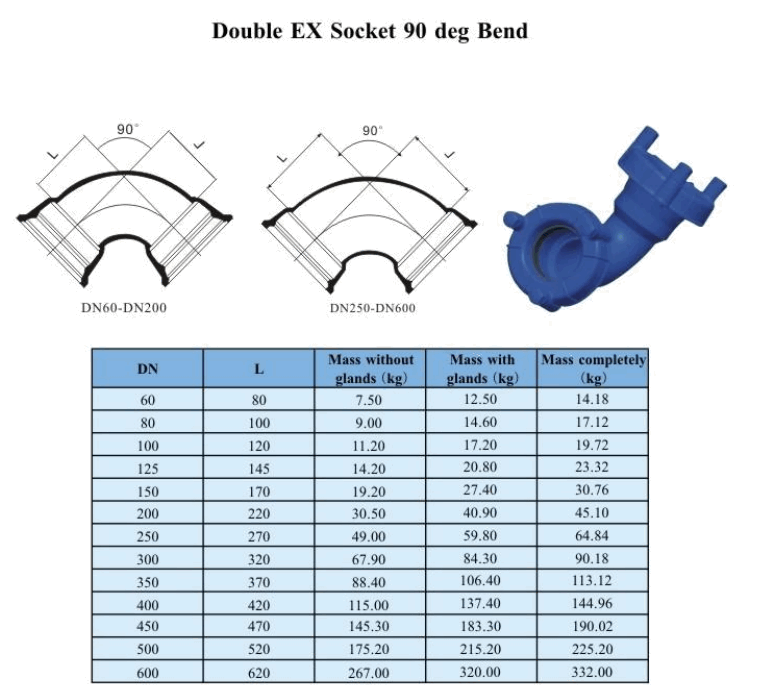

Product Specifications

Key Features & Highlights

Engineering a reliable, decades-lasting pipeline requires components that go far beyond basic fluid transition. Our 90-degree bend is loaded with strategic, field-tested enhancements designed to optimize both the immediate installation process and long-term operational efficiency.

• Heavy-Duty Ductile Iron Core: Provides exceptional tensile strength and ductility, ensuring the fitting easily withstands heavy top-loads, shifting soils, and aggressive internal pressures without micro-fracturing.
• Zero-Leakage Sealing Mechanism: The precision-molded sockets accommodate heavy-duty elastomeric gaskets that create an impenetrable, watertight barrier against fluid escape, protecting surrounding infrastructure.
• Acoustic Dampening Properties: The thick, uniform metal walls combined with specialized interior coatings absorb the kinetic noise of rushing fluids, contributing to significantly quieter municipal water systems.
• Weather Resilient Exteriors: When installed in exposed, above-ground environments, the specialized external coatings resist severe ultraviolet degradation and harsh atmospheric corrosion.
• Rapid-Lock Compatibility: Designed to integrate seamlessly with existing standard pipe profiles, allowing contracting crews to achieve secure, permanent connections in a fraction of the time required by traditional flanged alternatives.

Advanced Joint Design & Restraint Performance

Addressing the most critical and expensive vulnerability in pipeline engineering—joint separation—this fitting incorporates a highly sophisticated double EX socket architecture. Traditional single-socket or T-type joints often struggle and eventually fail under dynamic stress, but this dual-contact design fundamentally changes the structural integrity of the pipeline connection.

• Dual-Point Anchorage: By distributing mechanical stress and pulling forces across two distinct contact zones, the fitting effectively neutralizes the risks caused by ground settlement or severe temperature fluctuations.
• Water Hammer Resistance: The heavily reinforced socket geometry absorbs and safely dissipates the sudden, violent kinetic energy spikes of water hammer effects, preventing catastrophic blowouts.
• Elimination of Thrust Blocks: In numerous underground configurations, the superior restraint capability of the double EX socket reduces or entirely removes the need for pouring expensive, time-consuming concrete thrust blocks.
• Long-Term Maintenance Reduction: By virtually eliminating the risk of pipe decoupling under pressure, facility operators save exponentially on emergency excavation, labor, and pipeline repair costs.

Superior Deflection & Installation Efficiency

Field installations rarely match the perfect, straight-line geometry of an engineering blueprint. Recognizing the unpredictable nature of heavy trench work, this 90-degree bend offers an exceptional degree of joint deflection, empowering installation crews to navigate unexpected spatial challenges with unparalleled ease.

• Generous Angular Deflection: Allows straight pipes to enter the socket at slight angles without compromising the watertight seal, easily accommodating minor trench misalignments.
• Terrain Adaptability: Perfect for undulating landscapes, rocky substrates, or crowded underground utility corridors where strict linear pipe laying is physically impossible.
• Reduced Custom Fabrication: The built-in flexibility negates the need for on-site pipe cutting, edge beveling, or the ordering of custom-angled transition pieces.
• Accelerated Project Timelines: By simplifying the joining process and forgiving minor alignment errors, contracting teams can lay significantly more pipe per day, reducing heavy machinery rental times and labor overhead.

Customizable Coating & Corrosion Resistance

Fluid transmission networks encounter a vast array of aggressive media, from highly chlorinated potable water to abrasive, acidic industrial effluents. To combat chemical degradation and extend the lifespan of your infrastructure, we offer a highly customizable suite of interior linings and exterior coatings tailored to your specific environmental demands.

• Fusion Bonded Epoxy (FBE): The standard, ultra-durable lining that provides a glass-like, non-porous finish, ideal for keeping drinking water pure and completely free from metallic contamination.
• Polyurethane (PU) Lining: Engineered specifically for highly abrasive or corrosive environments, such as raw sewage or chemical slurries, offering unmatched resistance to scouring and chemical attack.
• High-Build Epoxy Paint: An excellent external shield against highly acidic or alkaline soils, preventing galvanic corrosion and extending the fitting's subterranean lifespan by decades.
• Odor and Taste Neutrality: All potable water coatings are rigorously formulated and tested to ensure they impart zero chemical taste, odor, or hazardous byproducts into the municipal supply chain.

International Standards & Quality Assurance

Procurement decisions in large-scale municipal and industrial infrastructure demand absolute certainty in product reliability. Every single double EX socket bend that leaves the manufacturing floor is backed by an uncompromising quality control protocol, ensuring strict adherence to global engineering standards.

• ISO2531 & EN545 Certified: Fully compliant with the world's most rigorous engineering specifications for ductile iron pipes and fittings used in critical water applications.
• Hydrostatic Pressure Testing: Each unit is subjected to extreme internal water pressure tests that far exceed standard operational limits to guarantee zero porosity and absolute leak tightness.
• Dimensional Verification: Advanced laser scanning and physical gauging ensure that the 90-degree angle, socket depths, and wall thicknesses are manufactured to exact microscopic tolerances.
• Material Traceability: Complete metallurgical documentation is maintained for every casting batch, providing transparent, auditable proof of the ductile iron's tensile strength and elongation properties.

Optimized Flow Dynamics

Redirecting massive volumes of fluid at a sharp 90-degree angle typically introduces severe turbulence and pressure loss. However, the internal geometry of this bend has been precision-engineered using advanced computational fluid dynamics to ensure energy-efficient, smooth transmission.

• Smooth Radial Transition: The sweeping internal curve is meticulously cast to guide fluid naturally, minimizing the aggressive vortexes and eddies that usually form at sharp pipeline corners.
• Reduced Head Loss: By maintaining a consistent cross-sectional area and an ultra-smooth internal lining, the fitting ensures that system pumps do not have to overwork to maintain necessary pressure.
• Cavitation Prevention: The optimized flow path prevents localized pressure drops that cause destructive vapor bubbles, thereby protecting downstream valves and sensitive metering equipment.
• High-Velocity Tolerance: Capable of handling the rapid, high-pressure surges demanded by emergency fire suppression systems without suffering internal scouring or structural vibration.

Versatile Industry Applications

The robust engineering, extreme pressure tolerance, and customizable nature of this fitting make it an indispensable asset across a diverse spectrum of heavy industries and municipal sectors. It is the definitive solution wherever reliable, leak-proof fluid redirection is non-negotiable.

• Municipal Water Treatment: Essential for connecting filtration tanks, main pumping stations, and primary distribution arteries where maintaining clean, uninterrupted water flow is critical.
• Stormwater & Sewer Networks: Effectively navigates underground obstacles in dense urban environments, securely transporting corrosive wastewater to processing facilities without leaking into groundwater.
• Fire Protection Infrastructure: Provides the structural integrity required to handle the immense, instantaneous pressure demands of industrial and commercial fire hydrant networks.
• Chemical & Petrochemical Plants: When equipped with specialized PU linings, it safely redirects aggressive process fluids, cooling water, and industrial byproducts without degrading.
• Agricultural Irrigation: Serves as a durable, leak-proof cornerstone for large-scale agricultural pumping stations, enduring decades of exposure to damp soil, shifting ground, and chemical fertilizers.

Why Choose Us

Sourcing critical infrastructure components requires a manufacturing partner who intimately understands the intricate demands, tight deadlines, and strict budgets of large-scale engineering projects. As a dedicated manufacturer and global supplier, we bring decades of metallurgical expertise and supply chain reliability directly to your procurement process.

• Direct-from-Manufacturer Value: By eliminating third-party markups, we provide premium-grade ductile iron fittings at highly competitive rates, instantly optimizing your project's material budget.
• Scalable Production Capacity: Whether you require a dozen customized fittings for a localized repair or thousands of units for a massive municipal expansion, our advanced foundry can meet aggressive delivery schedules.
• Custom Engineering Support: Our in-house technical team collaborates directly with your project engineers to select the exact linings, coatings, and dimensional specifications required for your unique geological and fluid challenges.
• Rigorous Packaging & Logistics: Every heavy-duty fitting is securely crated, palletized, and weather-wrapped to ensure it arrives at your global job site in pristine, ready-to-install condition, free from transit damage.

FAQ

To assist your engineering and procurement teams in making an informed decision, we have compiled answers to the most technical inquiries regarding our 90-degree bend.

• Q1: How does the Double EX Socket design technically prevent pipe separation compared to standard push-on joints?
  A: The Double EX configuration utilizes two distinct locking and sealing chambers within the socket. When the pipe spigot is inserted, specialized dual-gaskets engage, creating a high-friction, locking grip. This dual-contact zone exponentially increases the pull-out resistance, effectively anchoring the joint against severe ground shifts and internal pressure surges that would typically dislodge a standard single-gasket connection.
• Q2: What is the maximum angular deflection permissible during the installation of this 90-degree bend?
  A: While the fitting itself provides a strict 90-degree redirection, the Double EX sockets allow for an angular deflection of up to 3 to 5 degrees per socket, depending on the specific nominal diameter (DN). This generous allowance permits installation crews to smoothly navigate slight trench curves or terrain irregularities without compromising the hydrostatic seal.
• Q3: Can the Fusion Bonded Epoxy (FBE) lining withstand highly abrasive fluids like raw sewage or slurries?
  A: Standard FBE is exceptionally durable and perfect for potable water and mild wastewater. However, for highly abrasive slurries or raw sewage containing heavy particulate matter, we highly recommend our Polyurethane (PU) lining option. PU offers superior abrasion resistance and flexibility, ensuring the internal coating does not chip or scour away under constant bombardment from solid debris.
• Q4: Are these ductile iron bends compatible with piping made from other materials, such as PVC or HDPE?
  A: Yes, the Double EX sockets are highly versatile. While perfectly matched for ductile iron pipes, they can be successfully integrated with PVC, HDPE, or steel piping systems provided that the correct transition gaskets or specialized gripping rings are utilized. Our engineering team can supply the exact sealing accessories required for your specific multi-material pipeline.
• Q5: How do you verify the dimensional accuracy and structural integrity of the fittings before shipment?
  A: Our quality assurance protocol is exhaustive. Every batch undergoes rigorous metallurgical analysis to confirm the ductile iron's tensile strength. Post-casting, the fittings are subjected to advanced physical gauging to verify exact dimensional tolerances (such as the L dimensions and socket depths). Finally, units undergo high-pressure hydrostatic testing to guarantee complete leak tightness in accordance with EN545 and ISO2531 standards.
