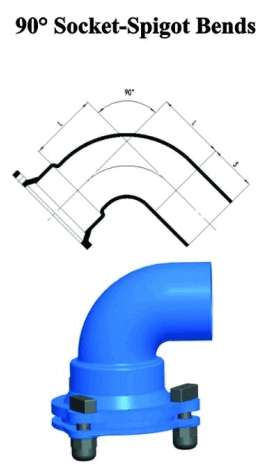

When engineering complex fluid transportation networks, precise directional changes are critical to maintaining optimal pressure and flow dynamics. The 90° Socket-Spigot Bends are engineered to deliver an exact right-angle transition while preserving the hydrodynamic integrity of the entire pipeline system. Running a hand along the exterior reveals a rugged, structurally reinforced casting designed to withstand immense subterranean stresses, shifting soil conditions, and heavy earth loads. Inside, the surface is meticulously finished to a smooth, friction-reducing texture. This careful attention to the internal geometry minimizes turbulence, prevents cavitation, and reduces energy loss as water or effluent abruptly changes direction. This component acts as a vital structural node, absorbing hydraulic shocks and ensuring that fluid is redirected with absolute stability. Project engineers rely on this specific geometry to navigate around unexpected underground obstacles, align perfectly with pumping stations, or integrate flawlessly into complex reservoir layouts without compromising the overarching system architecture.
The foundation of any enduring pipeline infrastructure lies in its dimensional accuracy and superior material composition. These bends are manufactured to meet exact engineering tolerances, ensuring that every piece aligns perfectly with adjoining straight pipes to form a unified conduit.
Standard: ISO2531/EN545
Size: DN60-2600
Internal Lining: Cement, Epoxy Paint, FBE(Fushion Bonded Epoxy)
External Coating: Zinc Rich Bitumen, Epoxy Paint, FBE(Fushion Bonded Epoxy)
Beyond the core dimensions spanning from a compact DN60 up to massive DN2600 configurations, the defensive coatings applied to these fittings are paramount for long-term survival in harsh environments. The internal lining options, including specialized cement and Fusion Bonded Epoxy (FBE), provide a dense, impermeable barrier against highly corrosive fluids. This prevents tuberculation and maintains a pristine, high-capacity flow channel over decades of continuous use. Externally, the application of zinc-rich bitumen or tough FBE creates a formidable shield against aggressive soil chemistries, stray electrical currents, and fluctuating ground moisture levels. This comprehensive dual-layer defense mechanism significantly extends the operational lifespan of the pipeline, translating directly to reduced maintenance interventions and substantially lower lifecycle costs for municipal and industrial network operators.
Adhering strictly to international frameworks, these fittings offer flawless compatibility with existing ductile iron networks, PVC conduits, and a wide array of standard municipal hardware. This universal adaptability eliminates the need for expensive custom transition pieces, simplifying procurement processes and accelerating site integration.
Application:
●Water Supply, Transmission and Distribution
● Water Plant and Sewage Treatment Reservoir Piping
● Sewage Collection and Disposal System
● Storm Water Drainage System
● Irrigation System
● Fire Fighting System
Whether routing potable water through dense urban grids or managing highly abrasive effluent in industrial sewage treatment facilities, these bends maintain their structural integrity under varying and extreme operational demands. In critical fire fighting systems, where sudden pressure surges are common during rapid pump activation, the resilient heavy-duty casting absorbs the kinetic energy safely without risk of rupture. For agricultural irrigation networks and large-scale storm water drainage, the fittings resist the degradation typically caused by organic matter, suspended solids, and varying flow velocities, proving their exceptional versatility across multiple critical infrastructure sectors.
The mechanical integrity of the socket-spigot joint is a defining characteristic of this directional fitting. Upon assembly, the spigot end slides into the receiving socket with a reassuring, solid engagement, evenly compressing the heavy-duty elastomeric rubber gasket. This precise compression creates an immediate, watertight seal that responds dynamically to internal fluid pressure—as the system pressure increases, the seal is forced tighter against the mating surfaces. This advanced dual-sealing design is specifically engineered to prevent any ingress of contaminated groundwater or egress of transported fluids, ensuring absolute zero-leakage performance even in challenging environments subject to severe pressure fluctuations and water hammer effects. The tactile feedback during installation confirms a secure, permanent lock, giving field technicians complete confidence in the joint's reliability long before the trench is backfilled and the system is pressurized.
Time spent in the trench directly impacts overall project budgets and construction schedules. The intuitive push-on nature of the socket-spigot interface means that installation crews can achieve a secure, permanent connection rapidly, entirely eliminating the necessity for heavy, specialized welding equipment, complex bolting procedures, or extended curing times.
Furthermore, the flexible nature of this joint is a crucial asset when dealing with unpredictable subterranean environments. It allows for a calculated degree of angular deflection, easily accommodating minor ground settlements, seismic vibrations, or thermal expansion and contraction without compromising the integrity of the seal. This inherent flexibility acts as a mechanical shock absorber, protecting the broader pipeline network from the stress fractures and catastrophic joint separations that frequently plague rigidly connected systems in shifting or unstable terrains.
Executing large-scale infrastructure projects requires more than just industrial-grade physical components; it demands a highly synchronized and responsive supply chain. A comprehensive, ready-to-ship inventory of these 90° bends across the entire DN60 to DN2600 size spectrum is meticulously maintained to support immediate dispatch requirements. This comprehensive stockpiling strategy ensures that unexpected site variations, sudden design changes, or accelerated project timelines can be accommodated swiftly without facing frustrating manufacturing delays.
The logistics framework is fully optimized for heavy-duty industrial transport, utilizing specialized handling equipment to ensure that these substantial cast fittings arrive at the installation site in pristine condition. From the warehouse floor to the bottom of the trench, the delivery process is engineered to keep critical construction schedules on track, providing peace of mind for project managers and procurement teams alike.
